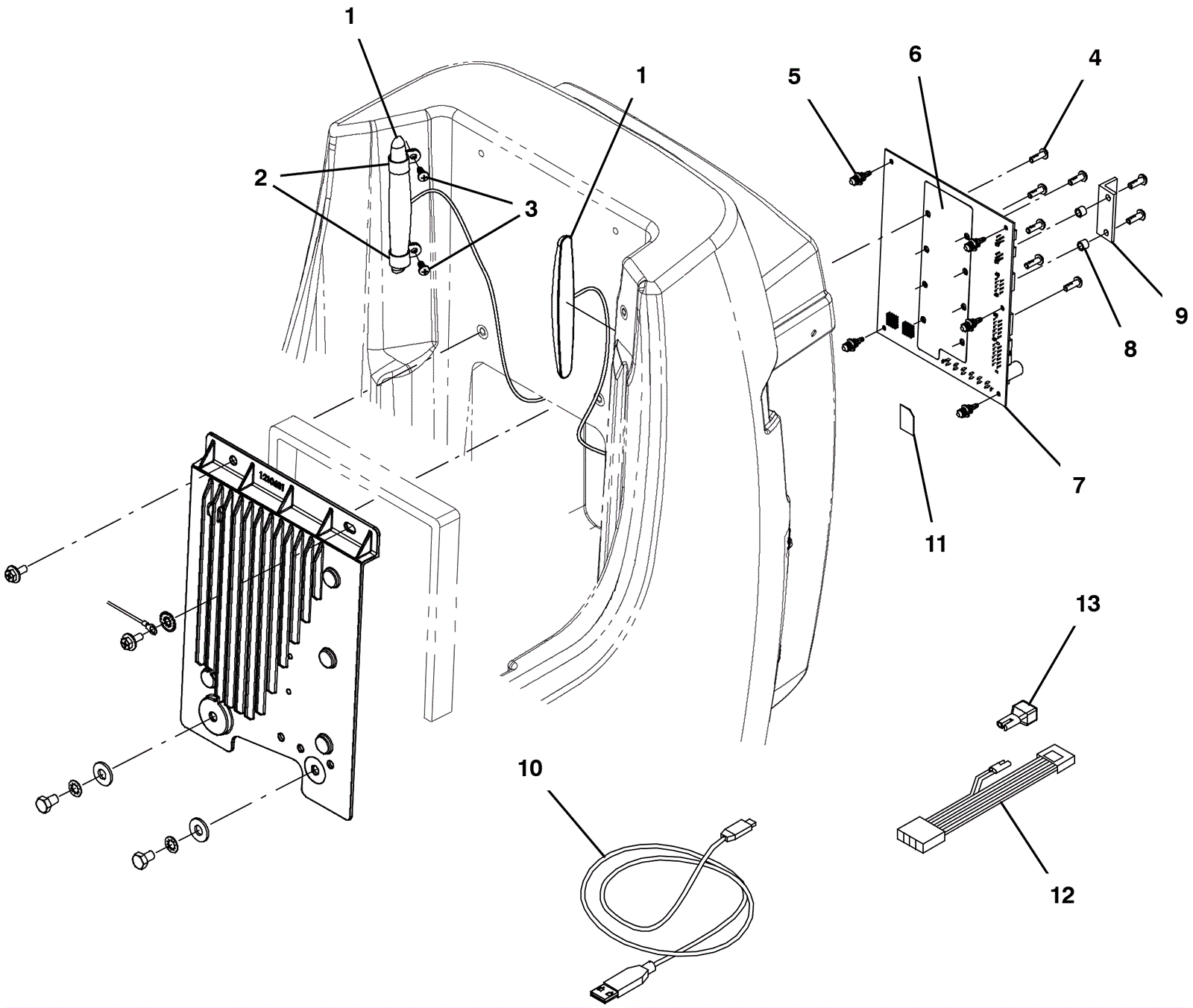

T300 Telemetry Assembly

#PartDescriptionPriceReqNotesAvailability
1a 375-9391 Telem antenna $60.28 2 (after SN 10972935) usually ships 10-16 days
1b 375-0171 18 inch antenna (Tennant Industrial) $91.35 1 (before SN 10972936) (replaced by 1a) usually ships 1-5 days
2 175-0988 P clamp $3.83 2 usually ships 10-16 days
3 999-0531 Screw M5-.8 x 16mm pan head slotted zinc $0.99 2 ships same day
4 999-1403 Screw M8 x 16mm torx head $2.90 9 ships same day
5 275-5465 Standoff $1.85 5 usually ships 10-16 days
6 375-0173 Circuit board pad $25.74 1 usually ships 10-16 days
7a 375-3804 Control board kit $2,639.12 1 (includes 7b-10) (requires Tennant True service or an authorized Tennant service provider) usually ships 10-16 days
7b 275-1425 Static ground strap (Tennant Industrial) $11.50 1 ships same day
7c 175-7795 Cable tie $4.75 2 ships same day
8 375-4267 Aluminum spacer $9.02 2 usually ships 10-16 days
9 375-4266 Bracket $51.37 1 usually ships 10-16 days
10 375-1351 USB to USB mini cable $15.29 1 usually ships 10-16 days
11a 375-3337 Telemetry sim kit (USA) $160.49 1 usually ships 10-16 days
11b 375-3839 Telemetry sim kit (International) $150.37 1 usually ships 10-16 days
12a 475-2173 HARNESS KIT, AMII, CI [T300] $203.28 1 (includes 12b-13) (kit needed to add battery charger communication functionality to telemetry models) (before SN 10830389) usually ships 10-16 days
12b 375-4013 Electrical harness adapter $37.29 1 (after SN 10830388) usually ships 10-16 days
13 175-2216 Diode plug $13.20 1 (after SN 10830388) ships same day
N/S 375-0172 Heat shrink sleeve (Tennant Industrial) $7.17 1 usually ships 1-5 days
