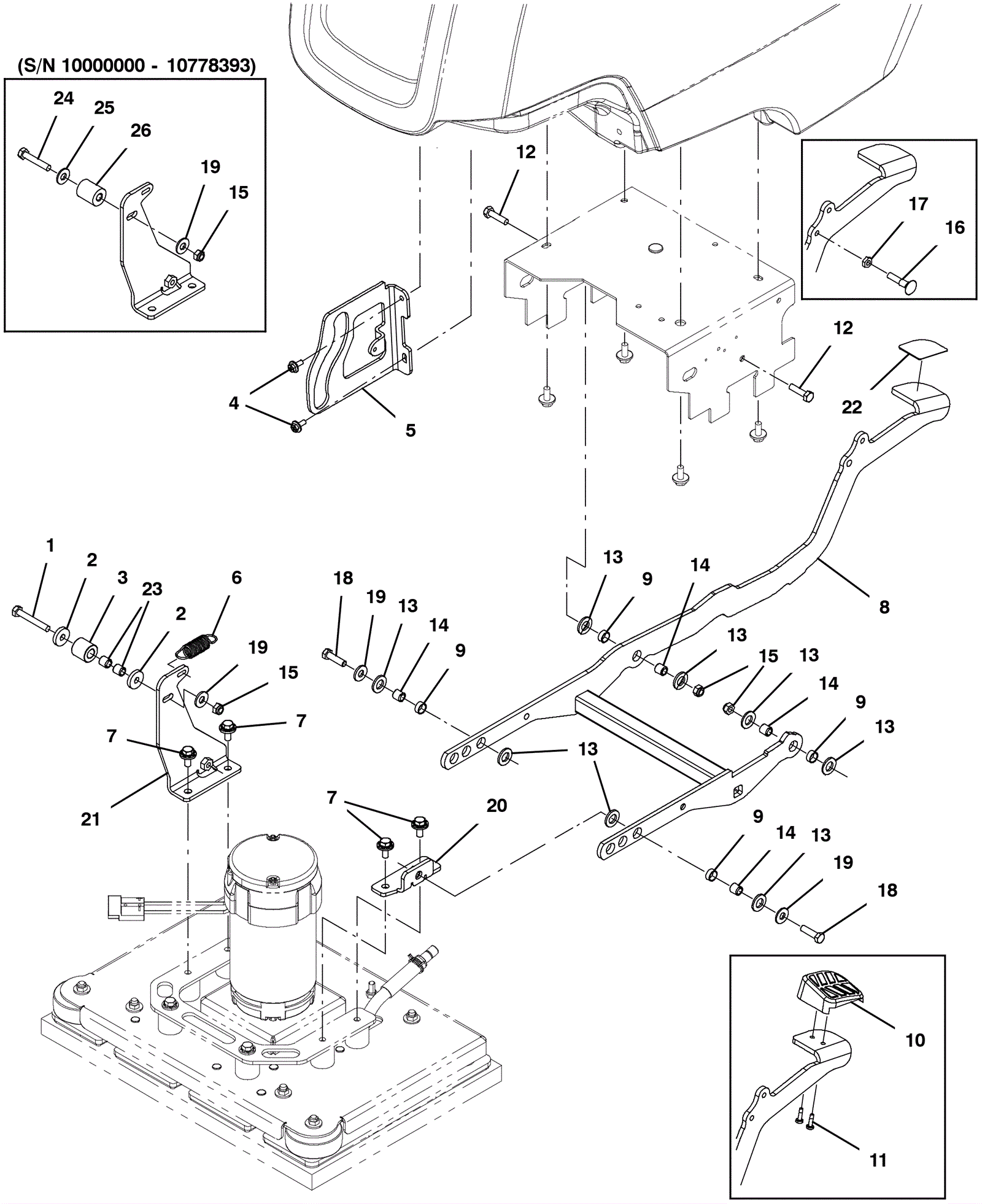

T300 Scrub Head Lift Assembly - Orbital

#PartDescriptionPriceReqNotesAvailability
1 999-0788 Screw M8-1.25 x 55mm hex head stainless steel $1.54 1 (after SN 10778393) ships same day
2 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 (after SN 10778393) ships same day
3 175-7911 Roller $8.80 1 (after SN 10778393) usually ships 5-16 days
4 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 ships same day
5 375-0252 Guide bracket $29.60 1 usually ships 5-16 days
6 275-5918 Extension spring $6.00 1 usually ships 5-16 days
7 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.00 4 ships same day
8 275-6649 Scrub head lift kit $227.80 1 (includes 9) usually ships 5-16 days
9 175-4720 Bearing $8.80 8 usually ships 5-16 days
10 375-0254 Pedal cover $9.00 1 usually ships 5-16 days
11 175-7660 Screw #10-14 x .675 shoulder self-tapping $3.80 2 (before SN 10757508) ships same day
12 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
13 999-9214 Washer M8 flat nylon $0.99 8 usually ships 11-24 days
14 175-2249 Sleeve $2.80 4 usually ships 5-16 days
15 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 3 ships same day
16 275-6648 Bolt $1.50 1 (before 02/2022) usually ships 5-16 days
17 175-4006 Nut M8 x 1.25 hex jam $3.00 1 (before 02/2022) usually ships 5-16 days
18 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 2 ships same day
19 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 3 ships same day
20 375-0194 Bracket weldment (short) $32.20 1 usually ships 5-16 days
21 375-0195 Bracket weldment (tall) $42.40 1 usually ships 1-5 days
22 375-1347 Pedal pad $3.70 1 (after SN 10757507) usually ships 5-16 days
23 175-2249 Sleeve $2.80 2 (after SN 10778393) usually ships 5-16 days
24 999-1297 Screw M8 x 50mm hex head stainless steel $2.86 1 (before SN 10778394) ships same day
25 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 (before SN 10778394) ships same day
26 375-0251 Roller $4.90 1 (before SN 10757508) usually ships 1-5 days
