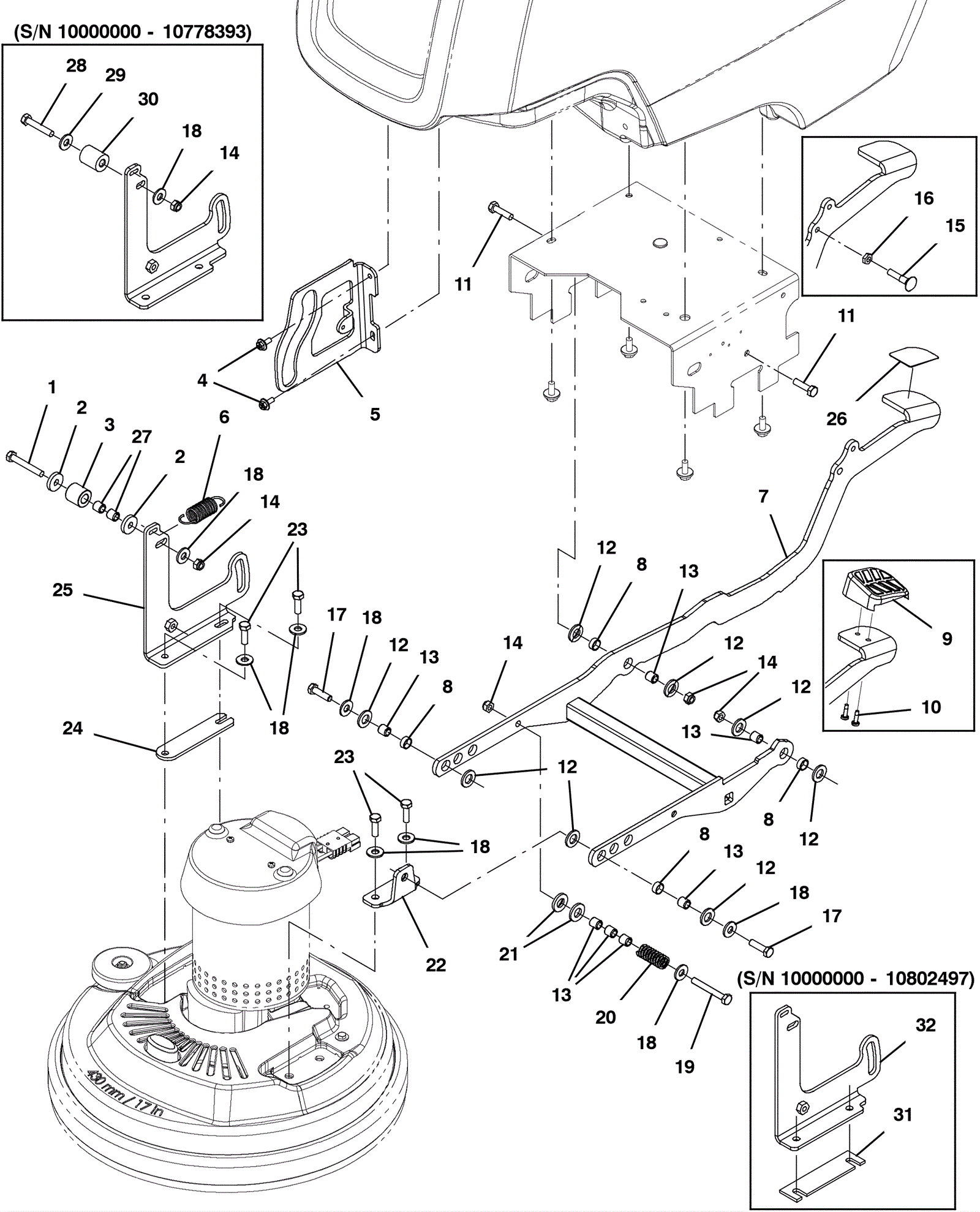

T300 Scrub Head Lift Assembly - Disk

#PartDescriptionPriceReqNotesAvailability
1 999-0788 Screw M8-1.25 x 55mm hex head stainless steel $1.54 1 (after SN 10778393) ships same day
2 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 (after SN 10778393) ships same day
3 175-7911 Roller $9.90 1 (after SN 10778393) usually ships 10-16 days
4 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 2 ships same day
5 375-0252 Guide bracket $33.22 1 usually ships 10-16 days
6 275-5918 Extension spring $6.82 1 usually ships 10-16 days
7 275-6649 Scrub head lift kit $255.64 1 (includes 8) usually ships 10-16 days
8 175-4720 Bearing $9.90 8 usually ships 10-16 days
9 375-0254 Pedal cover $10.12 1 (before SN 10757508) (replaced by 26) usually ships 10-16 days
10 175-7660 Screw #10-14 x .675 shoulder self-tapping $3.04 2 (before SN 10757508) ships same day
11 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
12 999-9214 Washer M8 flat nylon $0.99 8 usually ships 12-18 days
13 175-2249 Sleeve $3.83 7 ships same day
14 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 4 ships same day
15 275-6648 Bolt $2.11 1 (before 02/2020) usually ships 10-16 days
16 175-4006 Nut M8 x 1.25 hex jam $4.09 1 (before 02/2020) usually ships 10-16 days
17 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 2 ships same day
18 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 8 ships same day
19 999-1155 Screw M8-1.25 x 60mm hex head $1.87 1 ships same day
20 175-0944 Spring $9.46 1 usually ships 10-16 days
21 175-0939 Thrust washer $5.50 2 ships same day
22 375-0255 Mounting bracket $34.98 1 usually ships 1-5 days
23 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 4 ships same day
24 375-3187 Spacer head $14.08 1 (after SN 10802497) usually ships 10-16 days
25 375-3188 Bracket weldment $38.06 1 (after SN 10802497) usually ships 10-16 days
26 375-1347 Pedal pad $5.02 1 (after SN 10757507) usually ships 10-16 days
27 175-2249 Sleeve $3.83 2 (after SN 10778393) ships same day
28 999-1297 Screw M8 x 50mm hex head stainless steel $2.86 1 (before SN 10778394) ships same day
29 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 (before SN 10778394) ships same day
30 375-0251 Roller $5.50 1 (before SN 10778394) usually ships 1-5 days
31 275-5917 Spacer plate $11.88 1 (before SN 10802498) usually ships 10-16 days
32 375-3188 Bracket weldment $38.06 1 usually ships 10-16 days
