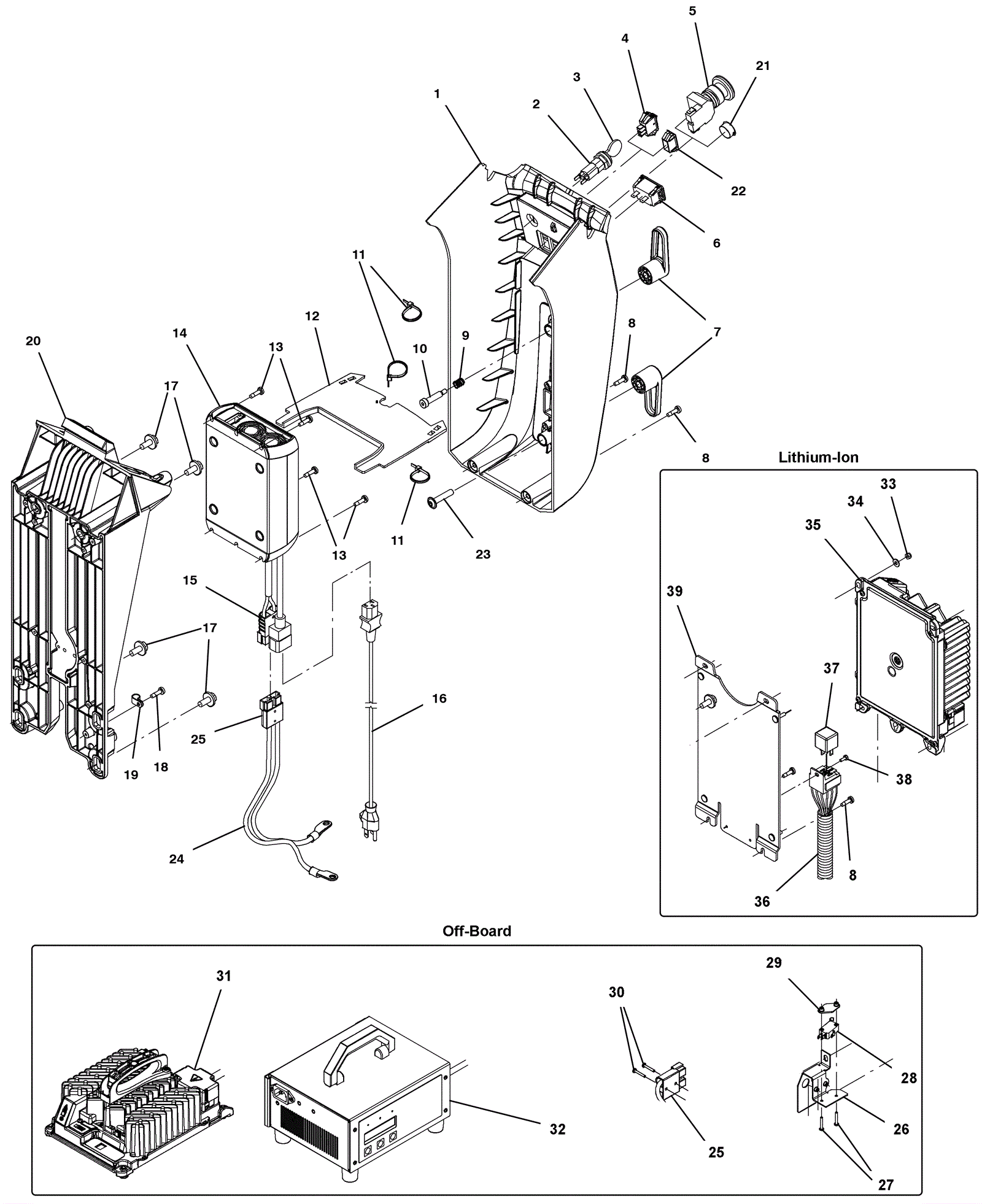

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1a |
375-0182
|
Control column cover |
$147.84
|
1 |
|
usually ships 1-5 days |
1b |
275-5444
|
Console cover |
$323.40
|
1 |
(replaced by 1a) |
usually ships 10-16 days |
2 |
175-7872
|
Key switch with 2 keys |
$53.13
|
1 |
(includes 3) |
ships same day |
3 |
991-1634
|
Key (pkg of 2) |
$10.67
|
1 |
(Lithium-ion) |
ships same day |
3 |
991-1634
|
Key (pkg of 2) |
$10.67
|
1 |
|
ships same day |
4 |
275-4773
|
Rocker switch |
$7.70
|
1 |
|
ships same day |
5 |
275-1416
|
Safety shut-off switch |
$40.81
|
1 |
(propel model) |
ships same day |
6 |
275-9900
|
Hour meter |
$53.79
|
1 |
|
ships same day |
7 |
275-5449
|
Cord hook |
$3.04
|
2 |
(on board charger and Lithium-ion) |
usually ships 10-16 days |
8a |
175-7660
|
Screw #10-14 x .675 shoulder self-tapping |
$3.04
|
2 |
(after SN 10795904) |
ships same day |
8b |
999-1403
|
Screw M8 x 16mm torx head |
$2.90
|
2 |
(before SN 10795905) |
ships same day |
9 |
175-7507
|
Compression spring |
$4.09
|
2 |
(on board charger and Lithium-ion) (qty 2 before SN 10982012) |
ships same day |
10 |
175-9855
|
Bolt M6-.8 x 30mm shield |
$7.70
|
2 |
(on board charger and Lithium-ion) |
usually ships 10-16 days |
11 |
175-7795
|
Cable tie |
$4.75
|
3 |
|
ships same day |
12 |
375-0183
|
Charger cover |
$13.31
|
1 |
(on board charger) |
usually ships 1-5 days |
13a |
175-7660
|
Screw #10-14 x .675 shoulder self-tapping |
$3.04
|
4 |
(after SN 10795904) (on board charger) |
ships same day |
13b |
999-1403
|
Screw M8 x 16mm torx head |
$2.90
|
4 |
(before SN 10795905) (on board charger) |
ships same day |
14a |
375-3181
|
24V charger kit |
$546.48
|
1 |
(includes 15) (on board charger) (Charger Kit required for models equipped with vented consoles) |
usually ships 10-16 days |
14b |
475-2669
|
CHARGER KIT, 24VDC 13A 100-240VAC[ON-BD] |
$683.65
|
1 |
(includes 14c, 15) (on board charger) (APAC) (Charger Kit required for models equipped with vented consoles) |
usually ships 10-16 days |
14c |
375-7840
|
24V onboard charger |
$552.11
|
1 |
(includes 15) (on board charger) (APAC) |
usually ships 10-16 days |
15 |
991-2103
|
50amp charger plug SB50 with pins (red) |
$6.17
|
1 |
|
ships same day |
16 |
275-1585
|
16/3 charger power cord 15 foot (black) |
$80.83
|
1 |
|
ships same day |
17 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
$4.09
|
4 |
|
ships same day |
18a |
175-7660
|
Screw #10-14 x .675 shoulder self-tapping |
$3.04
|
1 |
(after SN 10795904) |
ships same day |
18b |
999-1403
|
Screw M8 x 16mm torx head |
$2.90
|
1 |
(before SN 10795905) (on board charger) |
ships same day |
19a |
175-5421
|
P clamp |
$4.88
|
1 |
(on board chargers) |
usually ships 10-16 days |
19b |
275-5443
|
P clamp |
$5.50
|
1 |
(Lithium-ion) |
usually ships 1-5 days |
20a |
375-3182
|
Column frame |
$112.86
|
1 |
(after SN 10795904) |
usually ships 10-16 days |
20b |
375-0185
|
Control column frame |
$265.74
|
1 |
(before SN 10795905) |
usually ships 1-5 days |
21 |
175-3126
|
Plug |
$4.88
|
1 |
(push model) |
ships same day |
22 |
175-2698
|
Switch plug |
$6.05
|
1 |
(standard model) |
ships same day |
23 |
375-9373
|
Screw M6 x 1 x 30, 10.9 |
$1.32
|
1 |
(after SN 10982011) (on board charger and Lithium-ion) |
usually ships 10-16 days |
24a |
475-1496
|
HARNESS, CHRGR, 12GA [M8 RING/M8 RING] |
$47.96
|
1 |
(includes 25) (on board charger) |
ships same day |
24b |
N/A
|
Not available |
Call for price
|
1 |
(10ga charger harness) (off-board charger and Lithium-ion) |
usually ships 3-26 days |
25 |
991-2103
|
50amp charger plug SB50 with pins (red) |
$6.17
|
1 |
|
ships same day |
26 |
375-0046
|
Charger plug bracket |
$30.25
|
1 |
(off-board charger) |
usually ships 10-16 days |
27 |
999-1040
|
Screw M3-.5 x 20mm pan head |
$0.99
|
2 |
(off-board charger) |
ships same day |
28 |
375-0226
|
Mircroswitch |
$10.34
|
1 |
(off-board charger) |
ships same day |
29 |
175-7839
|
Switch plate |
$33.66
|
1 |
(off-board charger) |
usually ships 10-16 days |
30 |
999-1040
|
Screw M3-.5 x 20mm pan head |
$0.99
|
2 |
(off-board charger) |
ships same day |
31 |
375-2531
|
24V 650W Lithium-ion charger |
$598.73
|
1 |
(includes 25) (off-board charger) |
usually ships 10-16 days |
32 |
375-0186
|
24V battery charger |
$661.05
|
1 |
(includes 25) (off-board charger) |
usually ships 10-16 days |
33 |
175-2894
|
Nut M5-.8 hex nylon locking |
$3.04
|
4 |
(Lithium-ion) |
usually ships 10-16 days |
34 |
999-0998
|
Washer #10 flat stainless steel |
$0.99
|
4 |
(Lithium-ion) |
ships same day |
35 |
N/A
|
Not available |
Call for price
|
1 |
(24V 650W on-board charger) (Lithium-ion) |
usually ships 3-26 days |
36 |
375-9380
|
Relay adapter electrical harness |
$99.11
|
1 |
(Lithium-ion) |
usually ships 10-16 days |
37 |
175-8635
|
40amp relay |
$29.26
|
1 |
(Lithium-ion) |
ships same day |
38 |
999-0777
|
Screw M4-.7 x 10mm hex head plain finish |
$0.99
|
1 |
(Lithium-ion) |
ships same day |
39 |
375-9394
|
Charger adapter plate weldment |
$66.66
|
1 |
(Lithium-ion) |
usually ships 10-16 days |
