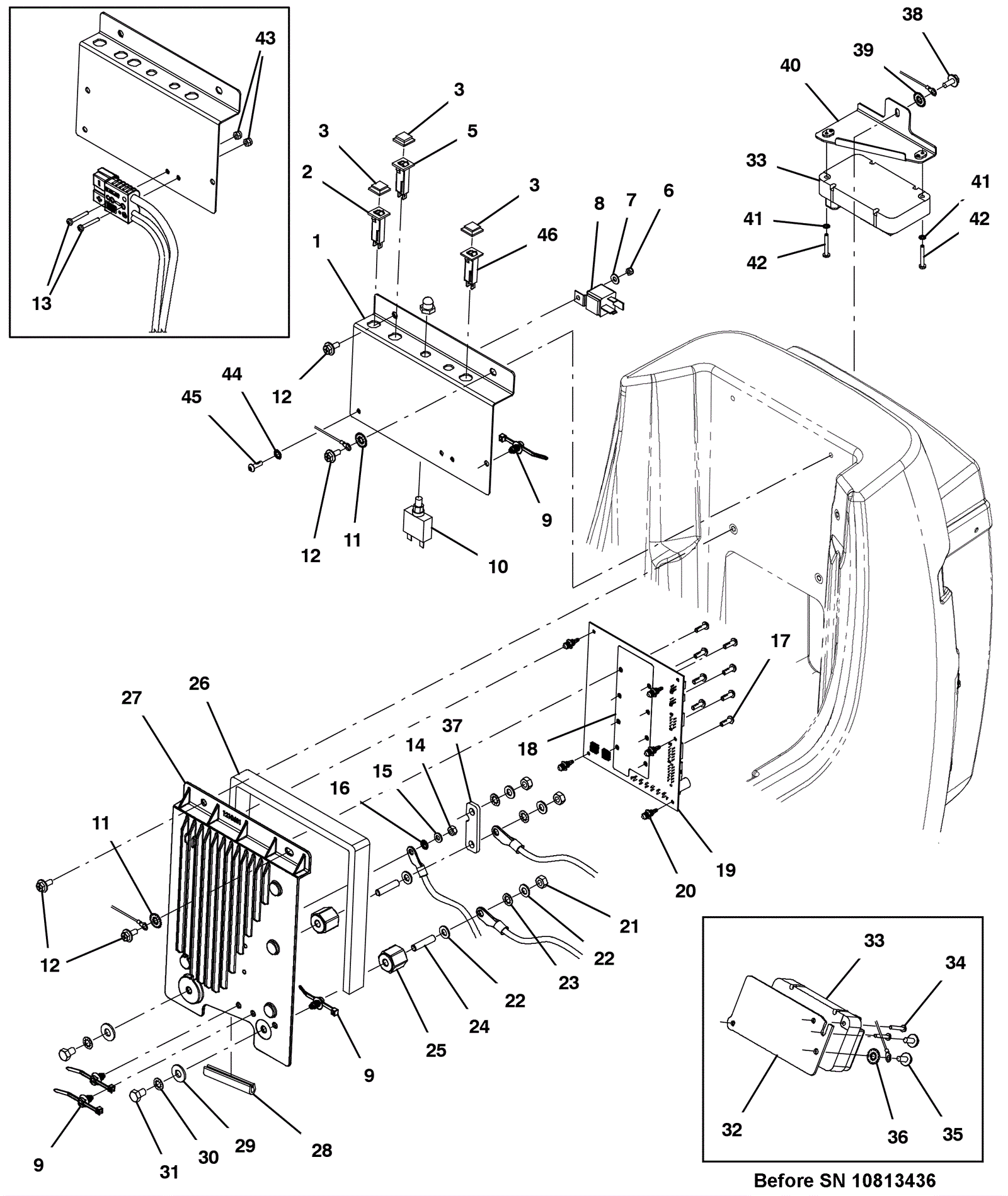

Electrical Components Assembly

#PartDescription ReqNotesAvailability
1 375-0169 Bracket weldment 1
2 375-0170 Circuit breaker 1
3 275-2596 Circuit breaker boot (Tennant Industrial) 2
5a 275-9986 10amp circuit breaker (Tennant Industrial) 1 (standard)
5b 375-0170 Circuit breaker 2 (ec-H2O)
6 999-0740 Nut M5-.8 hex stainless steel 1
7 999-0998 Washer #10 flat stainless steel 1
8 175-6588 24V 70amp elevated relay 1
9 275-5197 Fir tree clip 4
10 175-2151 30amp circuit breaker 1
11 275-0288 Washer 1/4 internal-external lock 2
12 999-1383 Screw M6-1 x 16mm hex head stainless steel 4
13 999-1672 Screw M4-.7 x 30mm pan head phillips stainless steel 2
14 275-5479 Nut M6 x 1 (Tennant Industrial) 1
15 999-0016 Washer 1/4 flat plain finish 1
16 175-4544 Washer M6 locking 1
17 999-1403 Screw M8 x 16mm torx head 8
18 375-0173 Circuit board pad 1
19a 375-0174 Circuit board assembly 1 (includes 19b-19c) (requires Tennant True service or an authorized Tennant service provider)
19b 275-1425 Static ground strap (Tennant Industrial) 1
19c 375-1351 USB to USB mini cable 1
20 275-5465 Standoff 5
21 275-5476 Nut M8 x 1.25 hex brass (Tennant Industrial) 3
22 275-5475 Washer M8-.4 x 1.6mm brass 5
23 999-1053 Washer 5/16 internal star lock stainless steel 3
24 175-4271 Screw M8 x 35mm set 2
25 375-0176 Insulated stand-off 2
26 375-0177 Circuit board cover gasket 1
27 375-0178 Circuit board heat sink 1
28 275-1269 3 foot trim molding 1
29 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
30 999-0406 Washer 5/16 internal star lock zinc plated 2
31 999-1415 Screw M8-1.25 x 12mm hex head stainless steel 2
32 375-0179 Drive bracket weldment 1 (before SN 10813436)
33 375-3234 Drive module kit 1 (propel model) (requires Tennant True service or an authorized Tennant service provider)
34 275-4705 Screw M4-.7 x25mm pan head phillips 2 (propel model) (before SN 10813436)
35 999-1383 Screw M6-1 x 16mm hex head stainless steel 2 (propel model) (before SN 10813436)
36 275-0288 Washer 1/4 internal-external lock 1 (propel model) (before SN 10813436)
37 375-0181 Fuse 1
38 999-1383 Screw M6-1 x 16mm hex head stainless steel 1 (after SN 10813435)
39 275-0288 Washer 1/4 internal-external lock 1 (after SN 10813435)
40 375-3180 Bracket 1 (after SN 10813435)
41 999-1083 Washer #8 internal star lock stainless steel 2 (after SN 10813435)
42 999-1672 Screw M4-.7 x 30mm pan head phillips stainless steel 2 (after SN 10813435)
43 999-0954 Nut M4-.7 nylon insert lock stainless steel 2
44 175-4544 Washer M6 locking 1
45 999-1403 Screw M8 x 16mm torx head 1
46 275-7846 20amp circuit breaker (Tennant Industrial) 1
