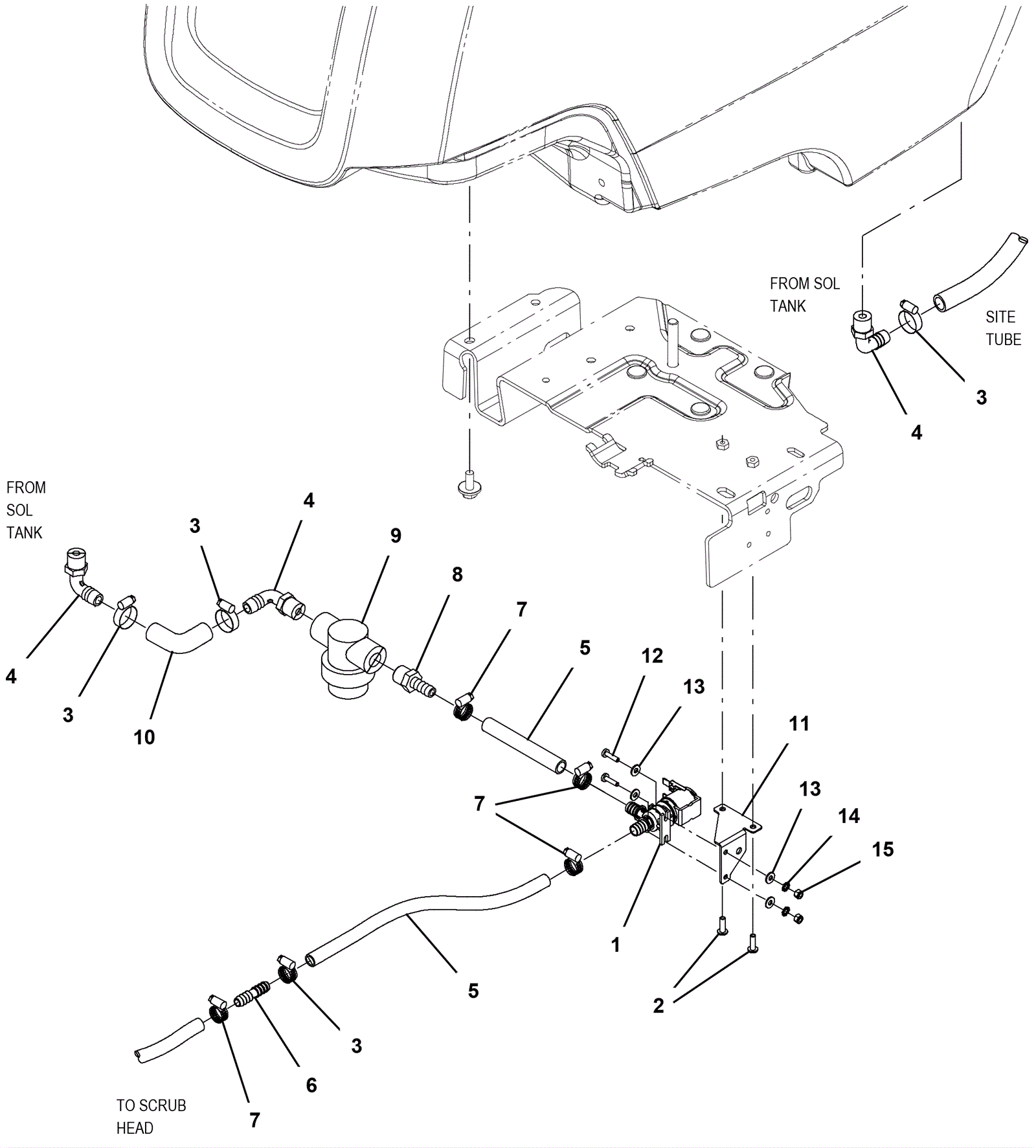

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1a |
275-1526
|
24V solution solenoid valve |
$117.48
|
1 |
(before SN 11056740) |
usually ships 10-16 days |
1b |
375-2529
|
24VDC water solenoid valve |
$143.99
|
1 |
(after SN 11056739) |
usually ships 10-16 days |
1b |
991-9173
|
24V solenoid valve |
$67.71
|
|
(NON-OEM) |
ships same day |
2 |
999-1403
|
Screw M8 x 16mm torx head |
$2.90
|
2 |
|
ships same day |
3 |
175-6081
|
Hose clamp |
$4.84
|
3 |
(qty 7 for between SN 11009738 and SN 11056739) (qty 13 for between SN 10978370 and SN 11009737) |
ships same day |
4 |
175-5241
|
90 degree elbow |
$9.13
|
3 |
|
usually ships 10-16 days |
5a |
275-9404
|
2 foot hose (clear) |
$39.71
|
1 |
(before SN 11056740) |
usually ships 3-26 days |
5b |
375-0119
|
Clear PVC hose |
$28.49
|
1 |
(between SN 10978370 and SN 11009737) |
ships same day |
5c |
375-1606
|
HOSE, AFMKT, PVC, CLR, 0.38ID, 02FT (Tennant Industrial) |
$40.51
|
1 |
(after SN 11056739) |
usually ships 10-16 days |
6a |
375-7839
|
Straight fitting |
$28.51
|
1 |
(before SN 11056740) |
usually ships 10-16 days |
6b |
275-8703
|
Straight plastic fitting (Tennant Industrial) |
$6.67
|
1 |
(after SN 11056739) |
usually ships 10-16 days |
7 |
175-3594
|
Hose clamp |
$5.28
|
1 |
|
usually ships 10-16 days |
8a |
275-5771
|
Plastic fitting |
$5.50
|
1 |
(before SN 11056740) |
usually ships 1-5 days |
8b |
175-4808
|
Hose barb |
$5.50
|
1 |
(after SN 11056739) |
usually ships 10-16 days |
9a |
375-0138
|
In-line filter |
$17.38
|
1 |
(includes 9b-9d) |
ships same day |
9b |
375-0139
|
Gasket |
$3.56
|
1 |
|
usually ships 10-16 days |
9c |
375-0140
|
Mesh filter screen |
$10.34
|
1 |
|
ships same day |
9d |
175-5868
|
Short clear filter bowl |
$19.80
|
1 |
|
ships same day |
9e |
991-3109
|
Strainer assembly |
$14.74
|
1 |
(NON-OEM) |
ships same day |
10 |
275-6481
|
PVC hose |
$14.19
|
1 |
(after SN 11009737) |
usually ships 10-16 days |
11 |
375-2530
|
Valve bracket |
Call for price
|
1 |
(after SN 11056739) |
usually ships 10-16 days |
12 |
999-9113
|
Screw M4-.7 x 16mm pan head phillips stainless steel |
$0.99
|
2 |
(after SN 11056739) |
ships same day |
13 |
999-0266
|
Washer #8 SAE flat stainless steel |
$0.99
|
4 |
(after SN 11056739) |
ships same day |
14 |
999-0148
|
Washer #6 external star lock zinc plated |
$0.99
|
2 |
(after SN 11056739) |
ships same day |
15 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
$0.99
|
2 |
(after SN 11056739) |
ships same day |
