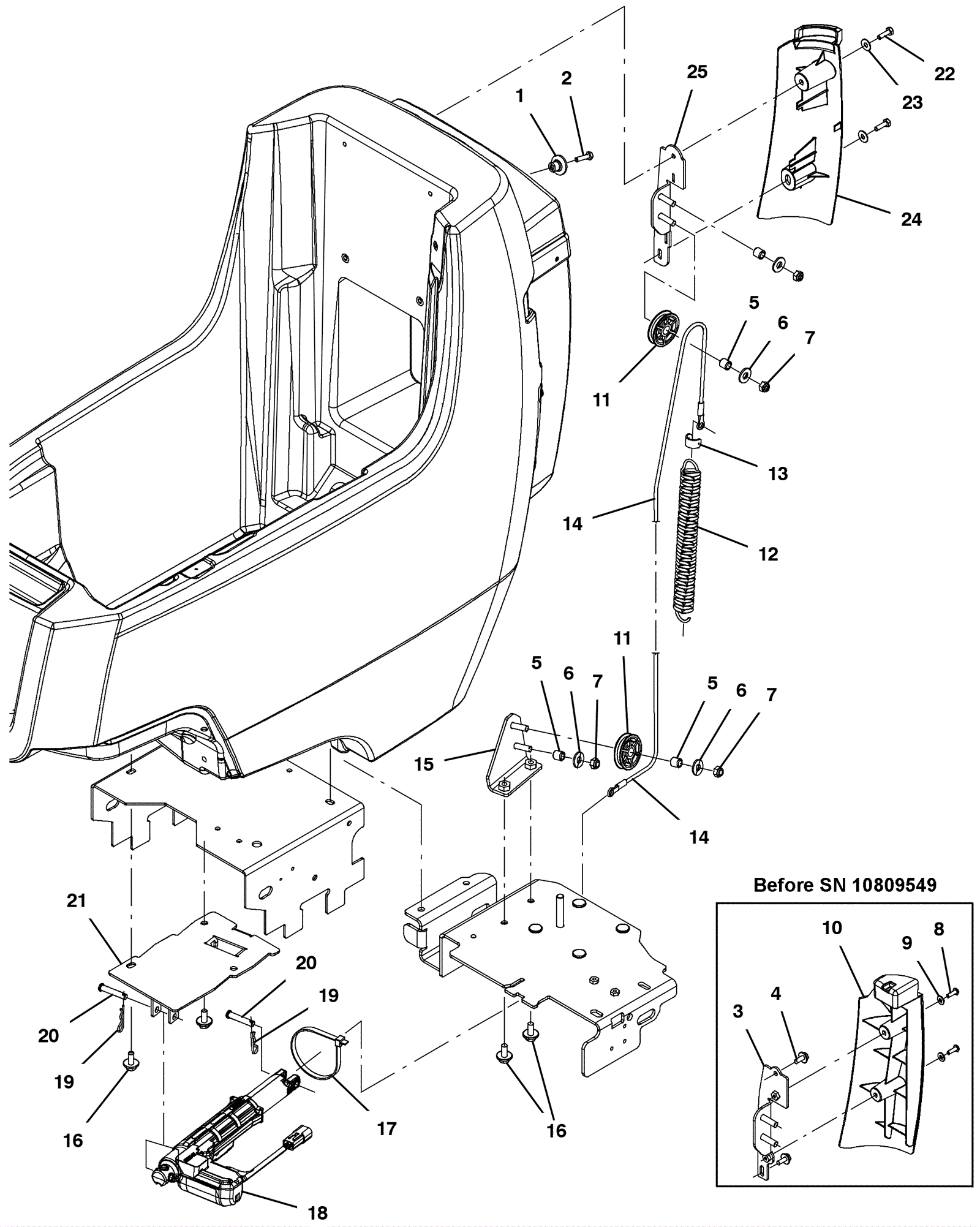

T300 Actuated Down Pressure Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-0123 Cable guide $11.00 1 usually ships 1-5 days
2 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 1 ships same day
3 375-0124 Down press bracket weldment $53.24 1 (before SN 10809549) usually ships 1-5 days
4 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 2 (before SN 10809549) ships same day
5 175-2249 Sleeve $4.22 4 ships same day
6 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
7 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 4 ships same day
8 999-1403 Screw M8 x 16mm torx head $2.90 2 (before SN 10809549) ships same day
9 999-0998 Washer #10 flat stainless steel $0.99 2 (before SN 10809549) ships same day
10 375-0125 Down press pulley assembly cover $26.84 1 (before SN 10809549) usually ships 1-5 days
11 275-0057 PULLEY, CABLE, 1.5D NYL (Tennant Industrial) $8.34 2 usually ships 10-16 days
12a 375-0126 Extension spring $25.52 1 (Disk and Orbital models) usually ships 10-16 days
12b 375-0127 Extension spring $32.23 1 (Cylindrical models) usually ships 10-16 days
13 375-0128 Rubber strip retainer $2.38 1 usually ships 1-5 days
14 375-0129 Down pressure cable $16.50 1 usually ships 10-16 days
15 375-0130 Down pressure bracket weldment $46.75 1 usually ships 1-5 days
16 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.49 4 usually ships 10-16 days
17 175-7795 Cable tie $5.15 1 ships same day
18 375-0131 24V actuator $433.07 1 usually ships 10-16 days
19 375-0071 Cotter hair pin $1.98 2 ships same day
20 275-5392 Clevis pin $4.49 2 usually ships 10-16 days
21 375-0132 Actuator weldment $108.57 2 usually ships 1-5 days
22 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 2 (after SN 10809548) ships same day
23 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 (after SN 10809548) ships same day
24 375-3178 Down press pulley assembly cover $66.88 1 (after SN 10809548) usually ships 10-16 days
25 375-4029 Pulley weldment bracket $46.64 1 (after SN 10809548) usually ships 10-16 days
