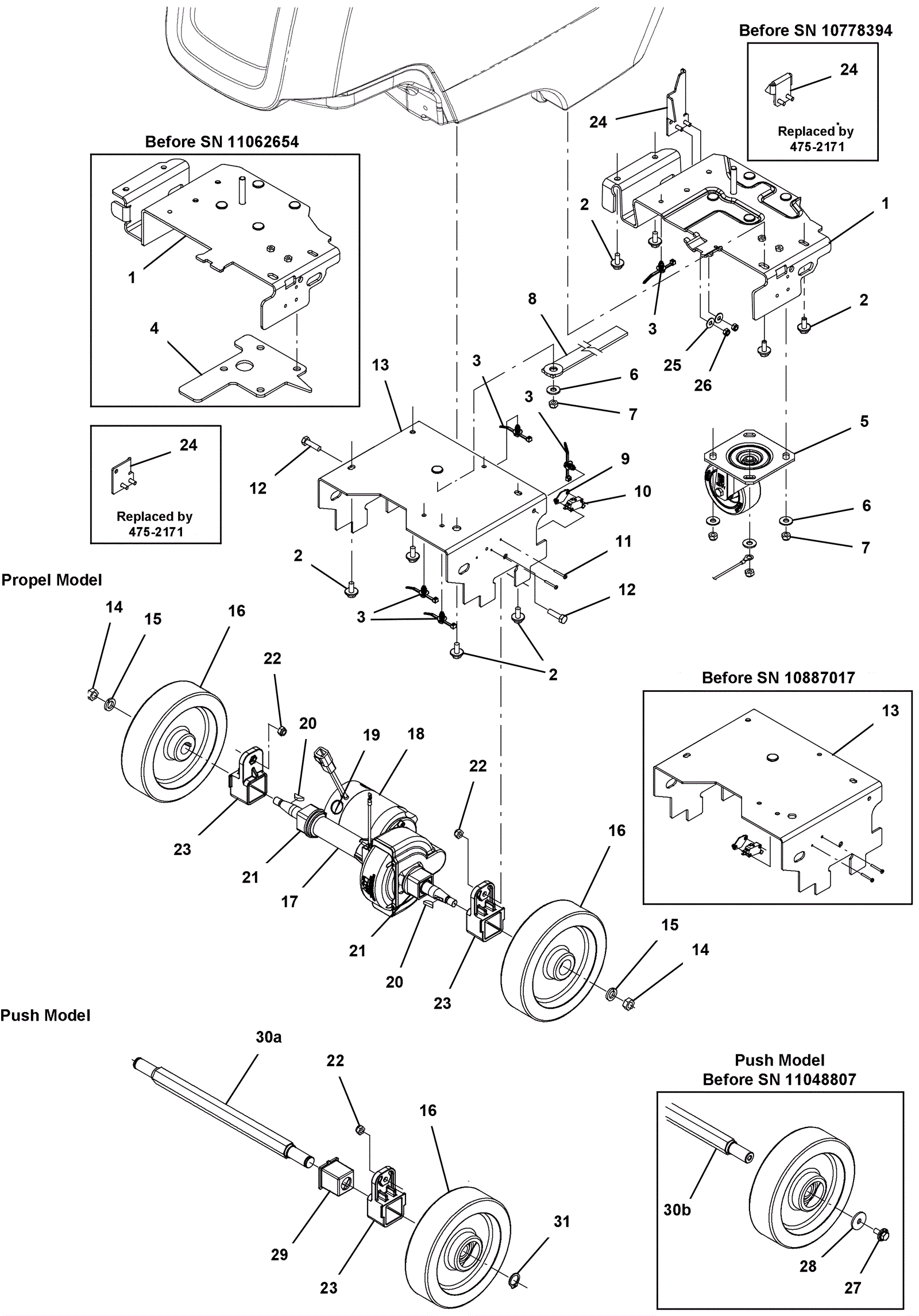

T300 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-0221 Rear frame weldment $188.70 1 (after SN 11062653) usually ships 5-16 days
2 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.00 8 ships same day
3 275-5197 Fir tree clip $1.50 5 usually ships 5-16 days
5 375-0225 Swivel caster wheel $67.80 1 ships same day
6 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 5 ships same day
7 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 5 ships same day
8 275-9261 Static strip with grommet $23.40 1 usually ships 5-16 days
9 175-7839 Switch plate $30.00 1 ships same day
10 375-0226 Mircroswitch $9.20 1 ships same day
11 999-1221 Screw M3-.5 x 25mm pan head stainless steel $0.99 2 ships same day
12 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
13a 275-9879 Front frame weldment $64.40 1 (after SN 10887016) usually ships 5-16 days
13b 375-0227 Front frame weldment $88.00 1 (before SN 10887017) usually ships 5-16 days
14 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 2 (propel model) ships same day
15 175-1825 Washer $3.50 2 (propel model) ships same day
16a 375-3173 Wheel with taper $136.00 2 (propel model) usually ships 5-16 days
16b 375-3176 Wheel with bearing $143.30 2 (push model) usually ships 5-16 days
17a 375-0229 Transaxle assembly $1,529.10 1 (includes 17b-21) (propel model) usually ships 1-5 days
17b 175-7899 Transaxle coupling kit $31.00 1 (propel model) ships same day
18 375-0230 Transaxle motor $592.40 1 (includes 19) (propel model) ships same day
19 175-4019 Carbon brush kit (pkg of 4) $114.20 1 (propel model) usually ships 5-16 days
20 275-1448 Square keyway $3.00 2 (propel model) ships same day
21 175-3660 Transaxle sleeve $9.20 2 (propel model) usually ships 5-16 days
22 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
23 275-5900 Axle mount $13.60 2 usually ships 5-16 days
24a 375-3174 Bracket latch $67.80 1 (after 12/2019) usually ships 5-16 days
24b 175-7883 Foot pedal locking bracket $49.00 1 (before SN 10778394) (replaced by 475-2171) usually ships 5-16 days
25 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
26 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
27 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.00 2 (push model) (before SN 11048807) ships same day
28 275-7133 Washer .34B x 1.25D x .11 flat stainless steel $4.50 2 (push model) (before SN 11048807) ships same day
29 275-5901 Grommet $7.30 2 (push model) usually ships 5-16 days
30a 375-7838 Wheel axle $38.80 1 (push model) (after SN 11048806) usually ships 5-16 days
30b 275-5902 Axle $140.10 1 (push model) (before SN 11048807) (replaced by 375-7838 and qty 2 of 275-1406) usually ships 1-5 days
31 275-1406 Retaining ring $17.40 2 (push model) (after SN 11048806) usually ships 5-16 days
