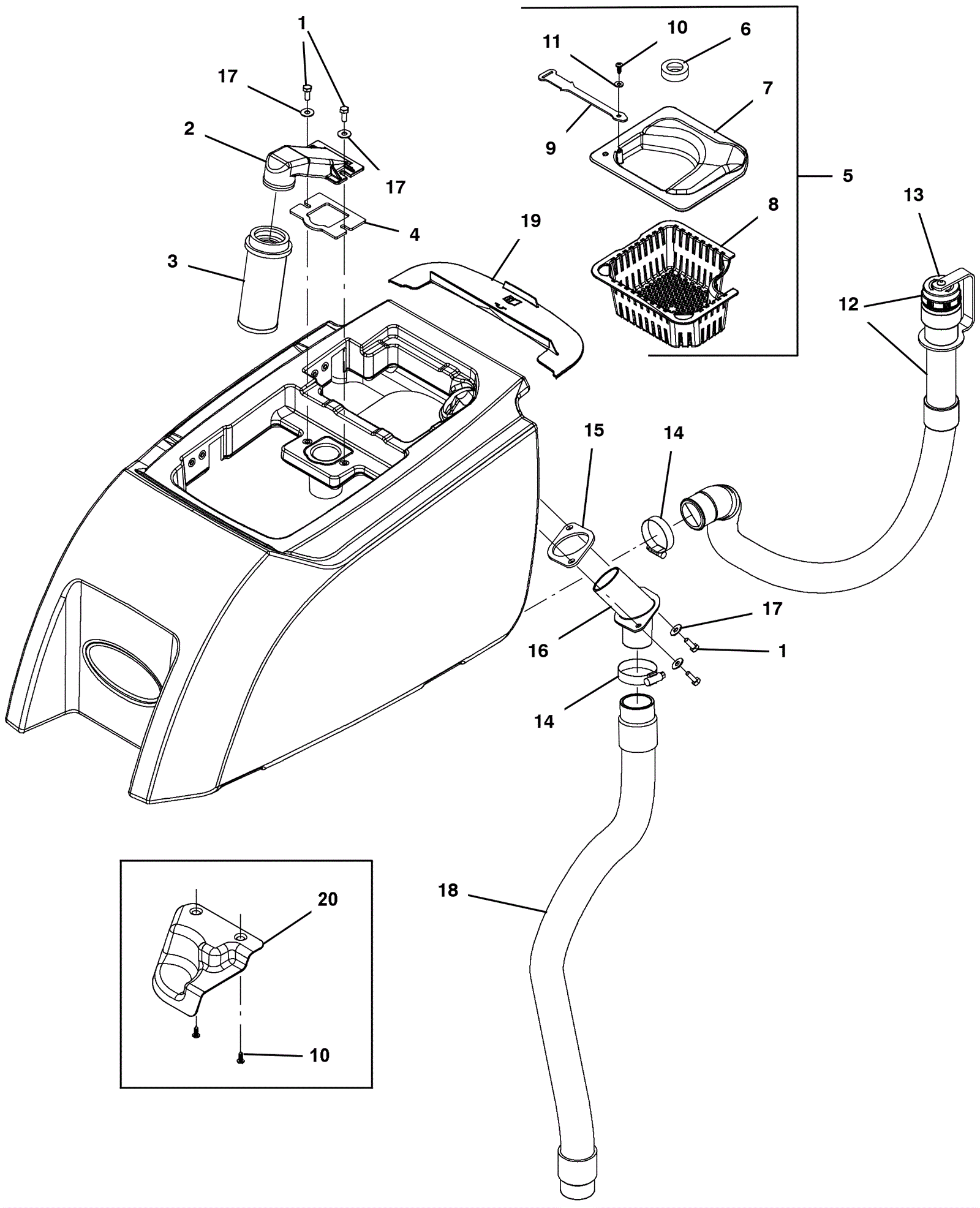

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
$0.99
|
4 |
|
ships same day |
2 |
175-7782
|
Float mount |
$30.69
|
1 |
|
usually ships 6-16 days |
3 |
175-1804
|
Shut-off float |
$75.68
|
1 |
|
usually ships 16-25 days |
4 |
175-7783
|
Float mount gasket |
$4.29
|
1 |
|
ships same day |
5 |
375-1369
|
Debris tray deflector kit |
$48.07
|
1 |
(includes 6-11) (after SN 10785188) |
ships same day |
6 |
375-1373
|
Seal |
$2.20
|
1 |
(after SN 10785188) |
usually ships 6-16 days |
7 |
375-1370
|
Debris tray deflector |
$1.11
|
1 |
(after SN 10785188) |
ships same day |
8 |
375-0211
|
Debris tray |
$32.56
|
1 |
|
ships same day |
9 |
375-1371
|
Deflector retaining strap |
$3.90
|
1 |
(after SN 10785188) |
usually ships 6-16 days |
10 |
999-0531
|
Screw M5-.8 x 16mm pan head slotted zinc |
$0.99
|
1 |
(after SN 10785188) |
ships same day |
11 |
999-0998
|
Washer #10 flat stainless steel |
$0.99
|
1 |
(after SN 10785188) |
ships same day |
12 |
375-0216
|
Drain hose assembly 1 1/2 x 13 inch |
$72.58
|
1 |
(includes 13a) (after SN 10988542) |
ships same day |
13a |
375-0214
|
Drain cap assembly (black) |
$8.14
|
1 |
(after SN 10988542) (pinch cuff screw cap and standard screw cap) |
ships same day |
13b |
375-0213
|
Drain cap assembly (gray) |
$8.14
|
1 |
(before SN 10988543) |
ships same day |
14 |
997-2000
|
Hose clamp |
$2.37
|
2 |
|
ships same day |
15 |
275-5935
|
Hose adapter gasket |
$3.41
|
1 |
|
ships same day |
16 |
375-0218
|
Hose adapter |
$11.11
|
1 |
|
ships same day |
17 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
4 |
|
ships same day |
18 |
375-0220
|
22 inch hose assembly w/cuffs 1 1/2 x 22 in |
$34.84
|
1 |
(after SN 10988542) (pinch cuff screw cap and standard screw cap) |
ships same day |
19 |
375-1558
|
Circuitbreaker cover kit |
$72.49
|
1 |
|
ships same day |
