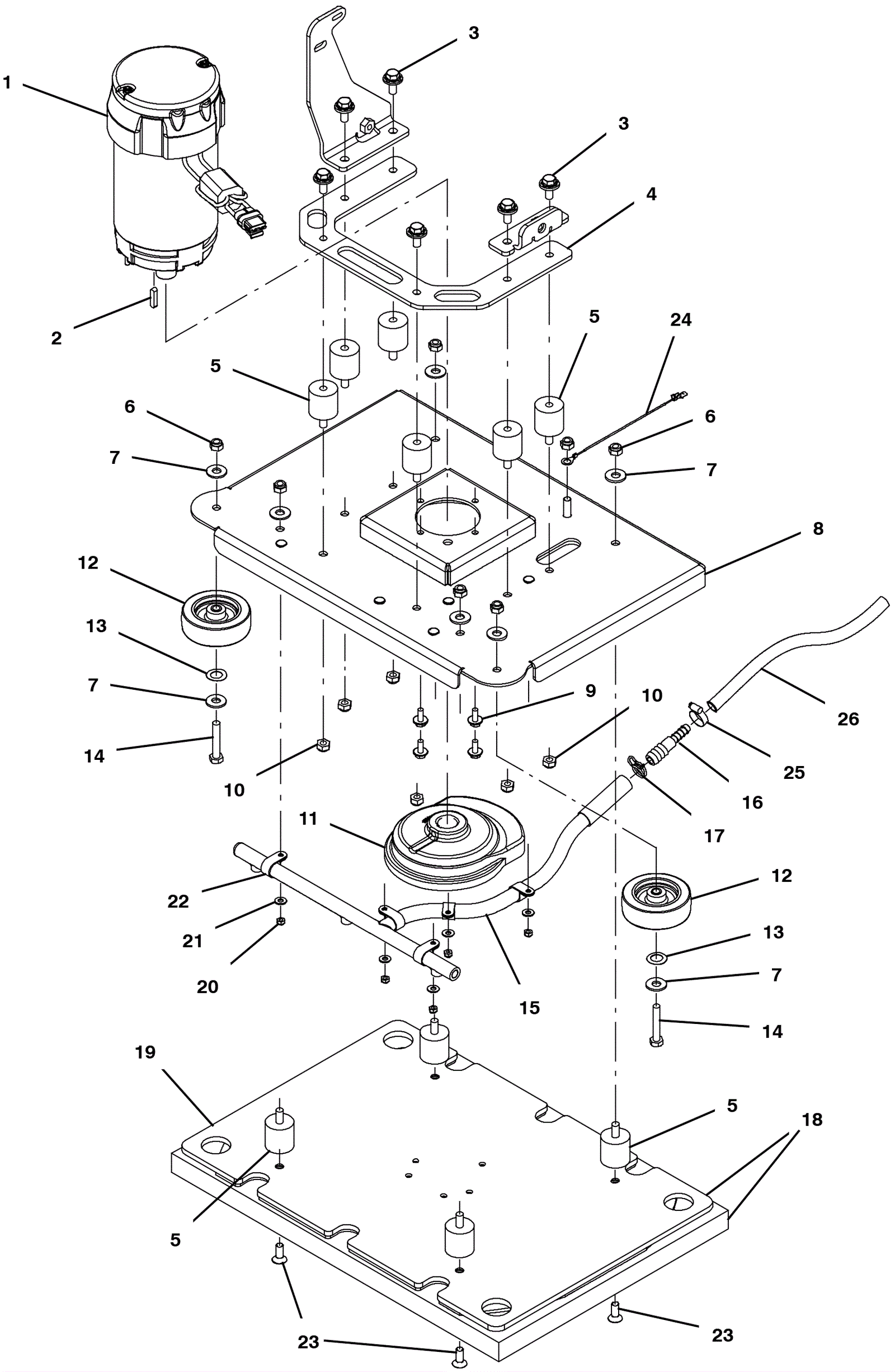

T300 Scrub Head Assembly - Orbital

#PartDescriptionPriceReqNotesAvailability
1a 375-3170 24V motor $1,105.20 1 (includes 1c, 2) (after SN 10827597) usually ships 5-16 days
1b 375-0100 24V electric motor $2,018.14 1 (includes 1c, 2) (before SN 10827596) usually ships 5-16 days
1c 275-9904 Carbon brush (pkg of 4) $77.80 1 usually ships 5-16 days
2 275-1468 Square keyway $3.60 1 ships same day
3 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.00 6 ships same day
4 375-0101 Head plate $31.60 1 usually ships 1-5 days
5 375-0102 Neoprene isolator $13.50 10 ships same day
6 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 6 ships same day
7 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 8 ships same day
8 375-0103 Scrub deck weldment $275.80 1 usually ships 5-16 days
9 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 4 ships same day
10 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 6 ships same day
11 375-0104 Eccentric assembly $930.10 1 ships same day
12 175-0117 Guide wheel with bushing $8.80 2 ships same day
13 999-6674 Washer 5/16 x 1 1/2 wave stainless steel $6.41 2 ships same day
14 175-2854 Screw M8-1.25 x 45mm hex head stainless steel $3.60 2 ships same day
15 375-0105 Water distribution manifold $113.50 1 ships same day
16 175-6956 Plastic strainer fitting $3.60 1 ships same day
17 375-0291 Hose clamp $3.60 1 ships same day
18 375-0106 Pad driver kit $400.20 1 (includes 19) usually ships 5-16 days
19 475-1957 Pad driver face $95.50 1 ships same day
20 999-0740 Nut M5-.8 hex stainless steel $0.99 5 ships same day
21 999-0998 Washer #10 flat stainless steel $0.99 5 ships same day
22 175-0988 P clamp $2.80 5 usually ships 5-16 days
23 375-0107 Screw M8-1.25 x 14mm flat socket stainless steel $2.20 4 usually ships 5-16 days
24 375-0108 Electrical harness $5.70 1 usually ships 5-16 days
25 175-3594 Hose clamp $3.60 1 ships same day
26 175-2222 PVC hose $19.00 1 ships same day
