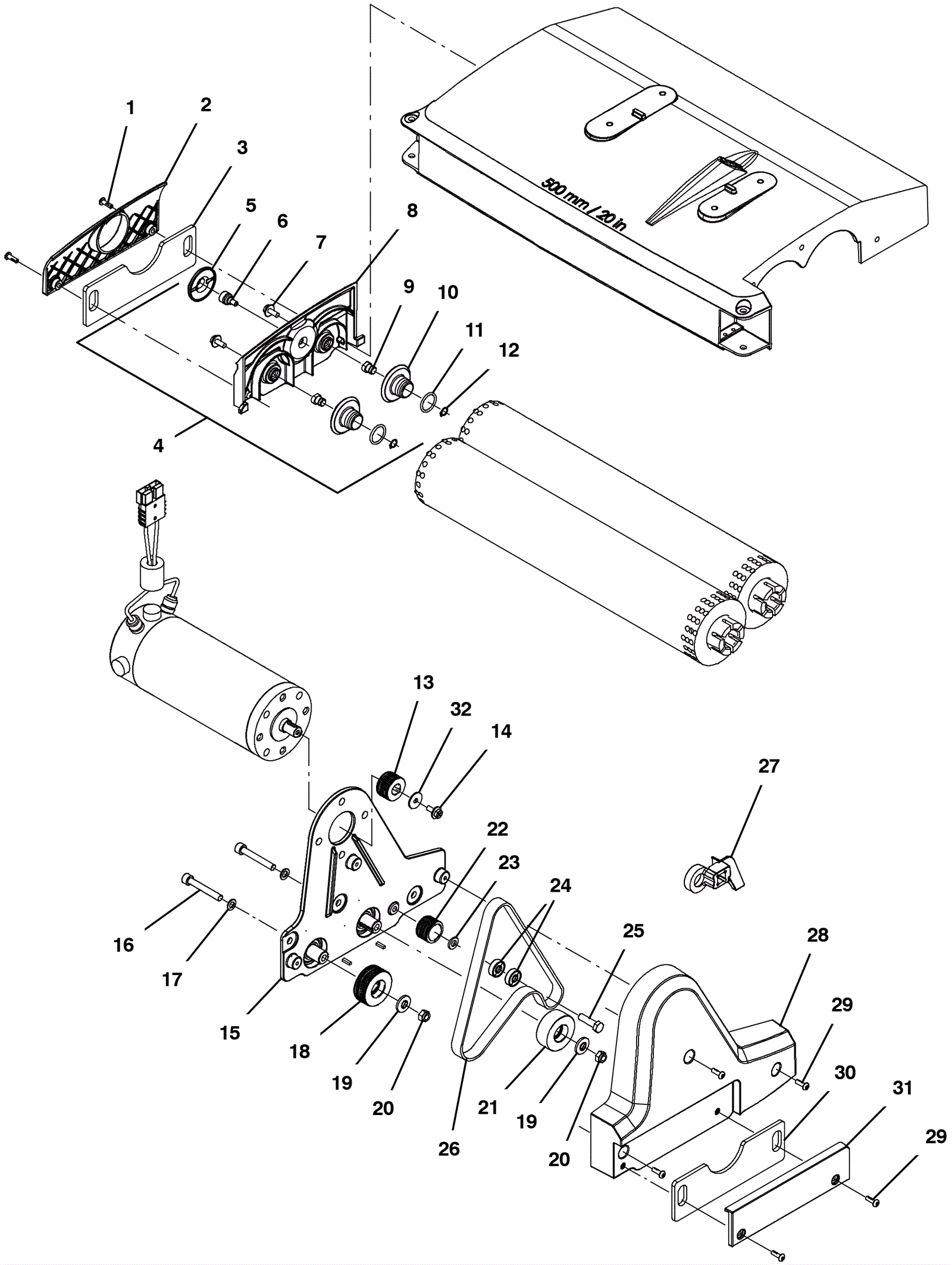

T300 Scrub Head Assembly - Cylindrical - Lower

#PartDescriptionPriceReqNotesAvailability
1 999-1403 Screw M8 x 16mm torx head $2.90 2 ships same day
2 375-0084 Skirt door cover $13.90 1 usually ships 5-16 days
3 375-0085 Floating side skirt $18.30 1 usually ships 5-16 days
4 375-0086 Brush door assembly $306.90 1 (includes 5-12) usually ships 5-16 days
5 375-0087 Screw cap $3.00 1 usually ships 1-5 days
6 375-0088 Round knob $5.80 1 usually ships 5-16 days
7 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 ships same day
8 375-0089 Brush door $64.10 1 usually ships 5-16 days
9 275-2416 Shaft idler plug $18.90 2 ships same day
10 275-2414 Brush idler hub $17.00 2 ships same day
11 375-3168 Seal $1.10 2 usually ships 5-16 days
12 275-2415 Retaining ring $2.20 2 ships same day
13 375-0090 Motor sheave $57.30 1 usually ships 1-5 days
14 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 1 ships same day
15 375-0091 Single mount motor bracket assembly $776.10 1 (includes 16-27) (includes hubs, bearings, and seals not available separately) usually ships 5-16 days
16 999-1828 Screw M8-1.25 x 55mm socket head stainless steel $4.54 2 ships same day
17 275-6722 Washer flat $1.30 2 usually ships 5-16 days
18 375-0092 Grooved drive sheave $100.20 1 usually ships 1-5 days
19 999-1407 Washer 5/16 belleville $3.04 2 ships same day
20 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
21 375-0093 Smooth drive sheave $57.60 1 usually ships 5-16 days
22 375-0094 Idler sheave $35.10 1 usually ships 5-16 days
23 375-0095 Pulley spacer $3.50 1 usually ships 1-5 days
24 375-0096 Ball bearing (tennant industrial) $6.01 2 usually ships 1-5 days
25 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 1 ships same day
26a 375-0097 Motor belt kit $151.40 1 (includes 26b-27) (includes belt and installation tool) usually ships 5-16 days
26b 475-1436 BELT, MOTOR [VW SINGLE MOTOR] $80.90 1 usually ships 5-16 days
27 375-3169 Belt installation tool $12.90 1 usually ships 5-16 days
28 375-0098 Belt cover $41.60 1 usually ships 5-16 days
29 999-1403 Screw M8 x 16mm torx head $2.90 5 ships same day
30 375-0085 Floating side skirt $18.30 1 usually ships 5-16 days
31 375-0099 Skirt cover $13.20 1 usually ships 5-16 days
32 175-1424 Washer flat $3.60 1 usually ships 5-16 days
