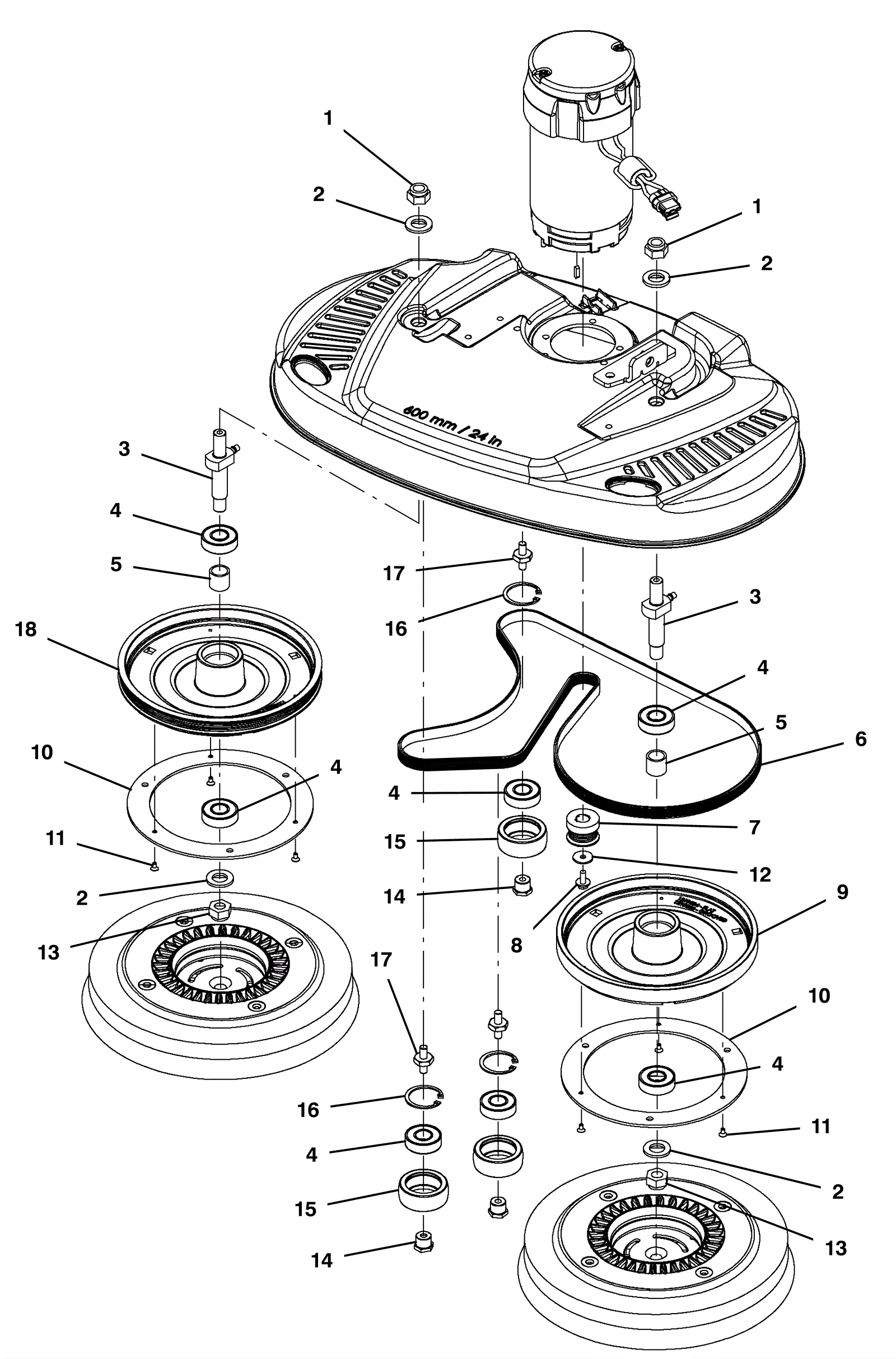

T300 Scrub Head Assembly - Dual Disk - Lower

#PartDescriptionPriceReqNotesAvailability
1 375-0063 Nut M14 x 2mm hex lock (Tennant Industrial) $4.84 2 usually ships 5-16 days
2 275-1469 Shaft spacer $7.30 4 usually ships 5-16 days
3 375-0064 Pulley shaft weldment $203.70 2 usually ships 5-16 days
4 375-0036 Ball bearing $18.90 7 ships same day
5 275-9918 Tube $5.70 2 usually ships 5-16 days
6 275-9917 Drive belt $110.70 1 usually ships 5-16 days
7 375-0065 Sheave $84.20 1 usually ships 5-16 days
8 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 1 ships same day
9 375-0066 Magnetic drive hub $116.20 1 usually ships 5-16 days
10 375-0068 Magnetic hub ring $21.90 2 ships same day
11 175-4251 Screw M4 x 8mm flat head phillips $2.90 6 ships same day
12 175-1424 Washer flat $3.60 1 usually ships 5-16 days
13 375-0063 Nut M14 x 2mm hex lock (Tennant Industrial) $4.84 2 usually ships 5-16 days
14 275-9916 Spacer $10.90 3 usually ships 5-16 days
15 275-9915 Idler pulley $61.10 3 usually ships 5-16 days
16 275-9914 Retaining ring $21.10 3 usually ships 5-16 days
17 375-0067 Stud $52.20 3 usually ships 5-16 days
18 375-0069 Grooved magnetic drive hub $116.20 1 usually ships 5-16 days
