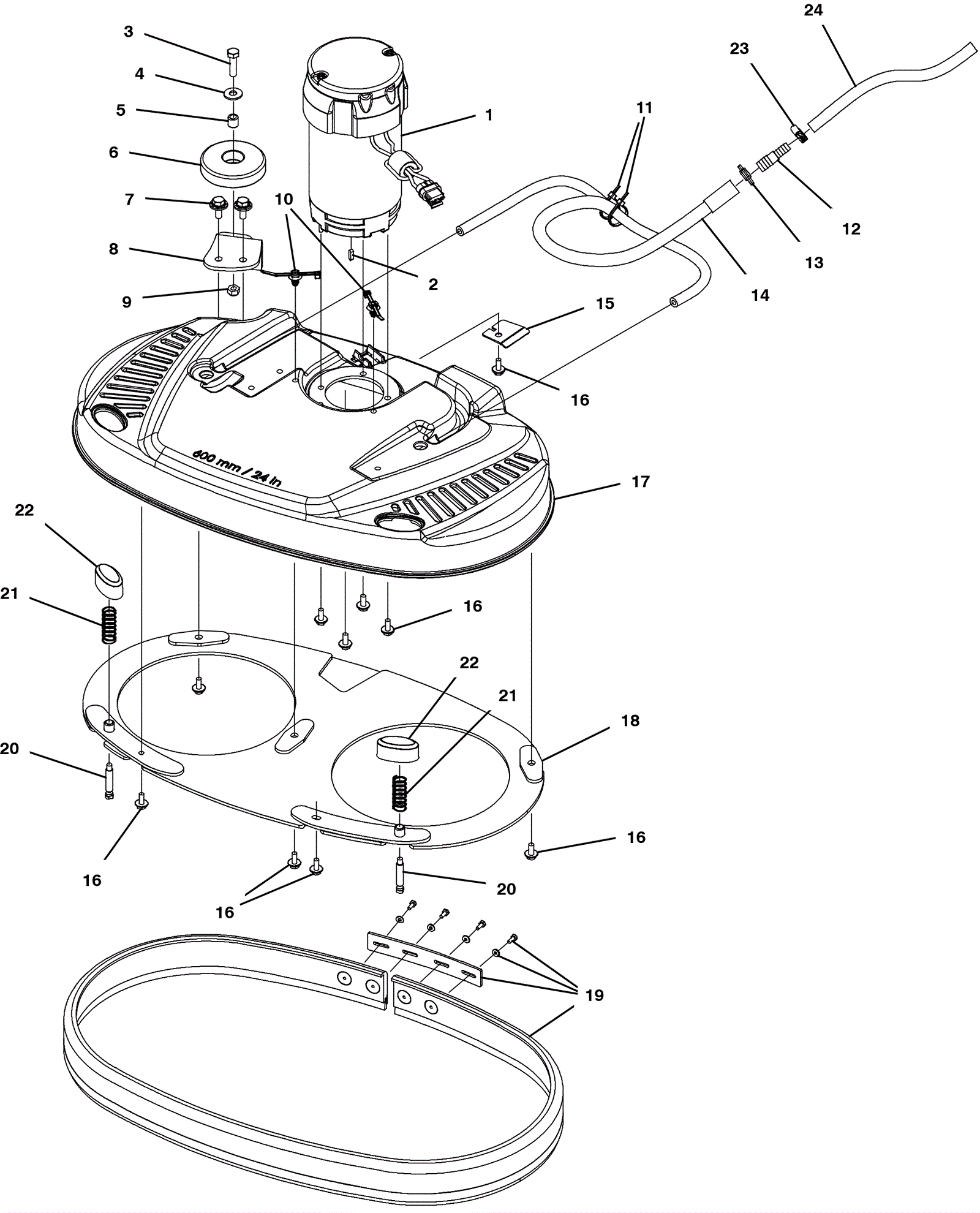

T300 Scrub Head Assembly - Dual Disk - Upper

#PartDescriptionPriceReqNotesAvailability
1a 375-3157 24V brush motor $897.50 1 (includes 1c, 2) (after SN 10835312) usually ships 5-16 days
1b 375-0051 24V brush motor $1,142.00 1 (includes 1c, 2) (before SN 10835313) usually ships 5-16 days
1c 275-9904 Carbon brush (pkg of 4) $77.80 1 usually ships 5-16 days
2 375-0052 Square keyway $3.30 1 ships same day
3 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 1 ships same day
4 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
5 175-2249 Sleeve $2.80 1 usually ships 5-16 days
6 175-7919 Guide wheel $4.50 1 ships same day
7 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.00 2 ships same day
8 375-0053 Bracket $27.00 1 usually ships 1-5 days
9 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
10 275-5197 Fir tree clip $1.50 2 usually ships 5-16 days
11 175-7795 Cable tie $3.50 2 ships same day
12 175-6956 Plastic strainer fitting $3.60 1 ships same day
13 375-0291 Hose clamp $3.60 1 ships same day
14 375-0056 Water distribution manifold $112.80 1 usually ships 5-16 days
15 375-0057 Belt guide bracket $13.00 1 usually ships 1-5 days
16 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 10 ships same day
17 375-0058 24 inch scrub head housing $532.90 1 usually ships 5-16 days
18 375-0059 Splash guard bracket weldment $202.40 1 usually ships 5-16 days
19 275-1466 24 inch (600mm) bumper skirt assembly $254.50 1 ships same day
20 375-0060 Short stop pin $19.60 2 usually ships 5-16 days
21 375-0061 Spring $10.10 2 ships same day
22 375-0062 Plunger pad button $10.00 2 ships same day
23 175-3594 Hose clamp $3.60 1 ships same day
24 175-2222 PVC hose $19.00 1 ships same day
