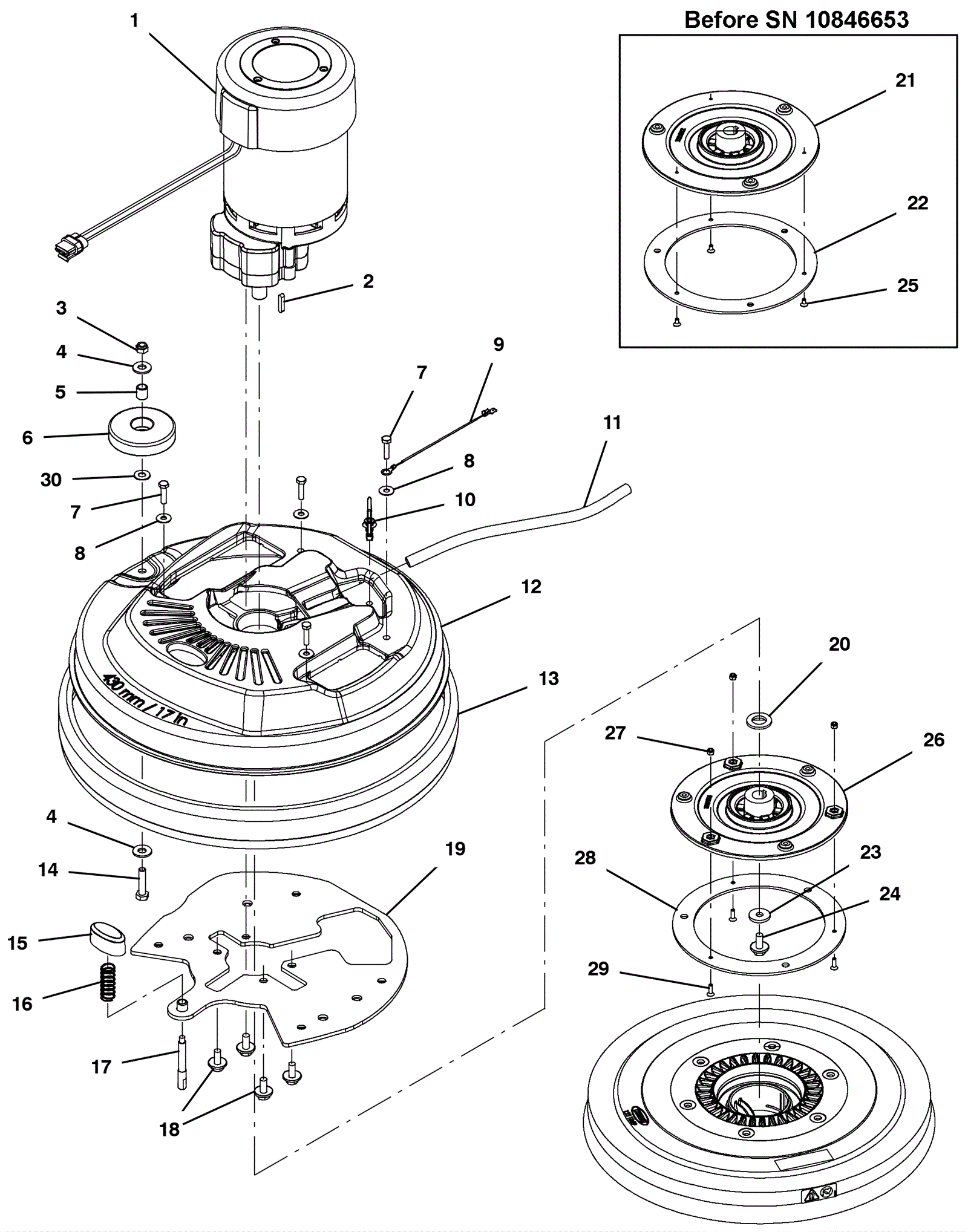

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
375-3152
|
24V electric motor |
1 |
(includes 1c and 2) (after SN 10834062) |
|
1b |
375-0203
|
24V 1 HP brush motor |
1 |
(includes 1d-1e, 2) (before SN 10834063) |
|
1c |
375-3153
|
Carbon brush kit (pkg of 4) |
1 |
(after SN 10834062) |
|
1d |
175-5352
|
Carbon brush (pkg of 4) |
1 |
(for Imperial motor) (before SN 10834063) |
|
1e |
275-5907
|
Carbon brush replacement kit (pkg of 4) |
1 |
(for Sanrong motor) (before SN 10834062) |
|
2 |
275-1468
|
Square keyway |
1 |
|
|
3 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
4 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
5 |
275-7304
|
Sleeve (Tennant Industrial) |
1 |
|
|
6 |
175-7919
|
Guide wheel |
1 |
|
|
7 |
999-1087
|
Bolt M6-1 x 25mm hex head stainless steel |
4 |
|
|
8 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
9 |
375-0108
|
Electrical harness |
1 |
|
|
10 |
275-5197
|
Fir tree clip |
1 |
|
|
11 |
175-2222
|
PVC hose |
1 |
|
|
12a |
375-0205
|
17 inch (430mm) brush housing |
1 |
|
|
12b |
375-0209
|
20 inch (500mm) brush housing |
1 |
|
|
13a |
175-7923
|
17 inch (430mm) bumper with bristle skirt |
1 |
|
|
13b |
175-7916
|
20 inch (500mm) bumper with bristle skirt |
1 |
|
|
14 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
1 |
|
|
15 |
375-0062
|
Plunger pad button |
1 |
|
|
16 |
375-0061
|
Spring |
1 |
|
|
17 |
375-0206
|
Stop pin |
1 |
|
|
18 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
4 |
|
|
19a |
375-3154
|
Plate weldment |
1 |
(after SN 10802497) |
|
19b |
375-0207
|
Plate weldment |
1 |
(before SN 10802498) (replaced by 475-2157) |
|
20 |
275-1469
|
Shaft spacer |
1 |
|
|
21 |
375-0208
|
Drive hub |
1 |
(before SN 10846653) |
|
22 |
375-0068
|
Magnetic hub ring |
1 |
|
|
23 |
175-7920
|
Washer M8 flat stainless steel |
1 |
|
|
24 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
1 |
|
|
25 |
175-4251
|
Screw M4 x 8mm flat head phillips |
3 |
(before SN 10846653) |
|
26a |
375-0208
|
Drive hub |
1 |
(includes 26b-29) (after SN 10846652) |
|
26b |
375-4183
|
Magnetic drive hub (OBSOLETE) |
1 |
(after SN 10846652)(order 375-0208, 375-0068, 375-4184, and 999-0954 to replace kit) |
|
27 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
2 |
(after SN 10846652) |
|
28 |
375-0068
|
Magnetic hub ring |
1 |
|
|
29 |
375-4184
|
Screw M4-0.7 x 14mm flat head socket stainless steel |
3 |
(after SN 10846652) |
|
30 |
999-0024
|
Washer 5/16 flat stainless steel |
1 |
|
|
