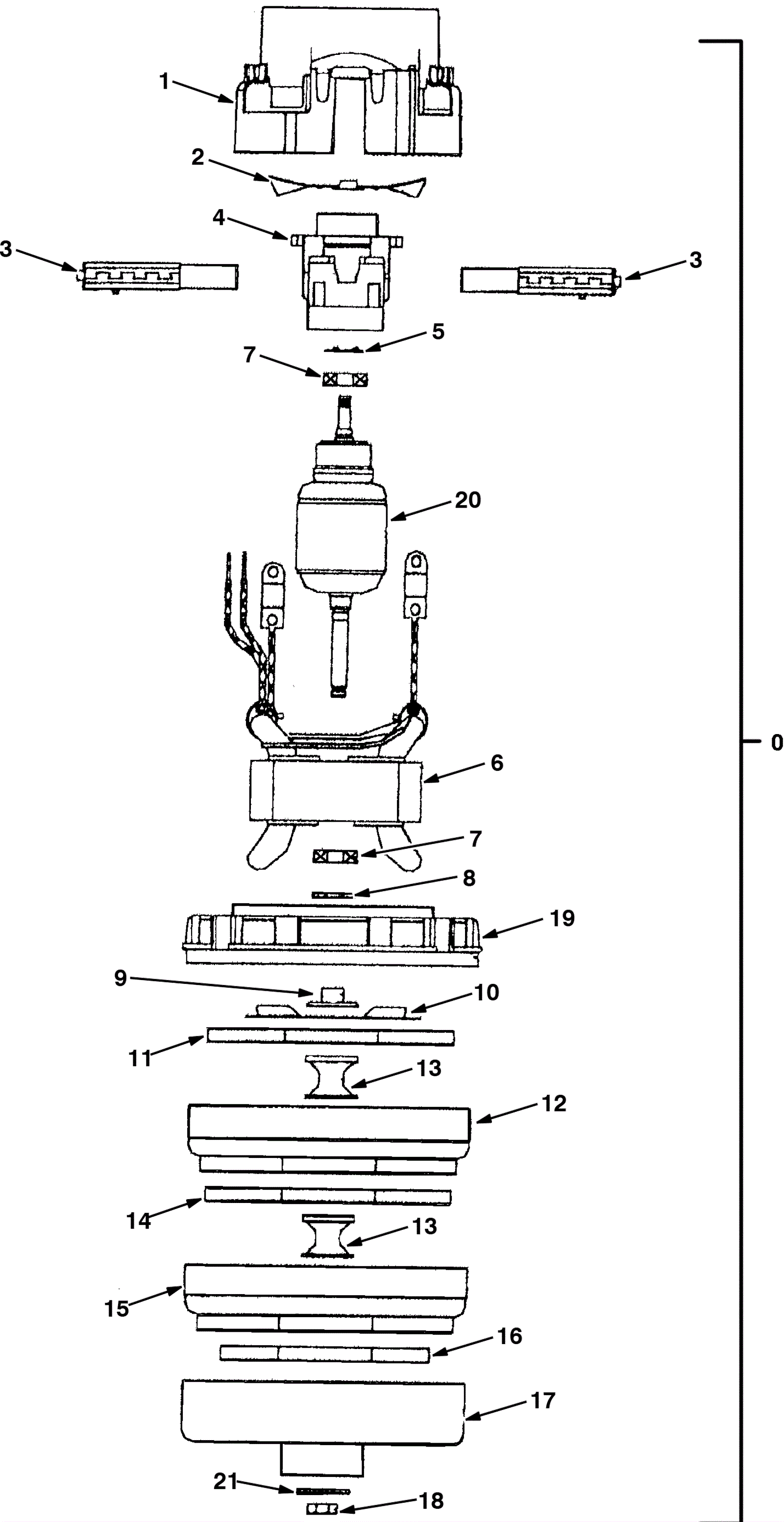

SPEED SCRUB RIDER Vacuum Motor Breakdown Assembly

#PartDescriptionPriceReqNotesAvailability
0 275-8003 24V 3 stage vacuum motor $242.98 1 (includes 1-21) ships same day
1 175-5275 Housing $21.56 1 usually ships 5-16 days
2 175-5276 Fan $5.06 1 usually ships 5-16 days
3 175-7791 Carbon brush (pkg of 2) $36.41 1 ships same day
4 175-5278 Commuicator bracket (OBSOLETE) $7.05 1 usually ships 5-16 days
5 175-5279 Spring $2.97 1 usually ships 1-5 days
6 275-8251 Commutator $200.86 1 usually ships 1-5 days
7 175-5281 Bearing $33.66 2 usually ships 5-16 days
8 275-8252 Washer $8.80 1 usually ships 1-5 days
9 175-5283 Spacer $8.47 1 usually ships 1-5 days
10 175-5284 Fan $6.38 1 usually ships 1-5 days
11 275-8253 Fan impeller $19.25 1 usually ships 1-5 days
12 275-8254 VR, FAN (Tennant Industrial) $31.90 1 usually ships 1-5 days
13 175-5286 Spacer $7.81 2 usually ships 1-5 days
14 175-5285 Vacuum fan $13.64 1 usually ships 5-16 days
15 175-5288 Stationary fan $23.32 1 usually ships 1-5 days
16 275-8255 Fan impeller $19.14 1 usually ships 1-5 days
17 275-8256 Fan shell $12.65 1 usually ships 1-5 days
18 175-5290 Nut $4.18 1 usually ships 1-5 days
19 275-8257 Fan end bracket $62.92 1 usually ships 1-5 days
20 275-8258 Armature $272.36 1 usually ships 5-16 days
21 275-0182 VR, WASHER (Tennant Industrial) $6.18 1 usually ships 1-5 days
N/S 164-0881 Vacuum motor gasket $13.42 1 (included with 0) ships same day
N/S 175-5293 Female connector $10.01 1 (included with 0) ships same day
N/S 175-5365 Female terminal $2.18 2 (included with 0) usually ships 1-5 days
