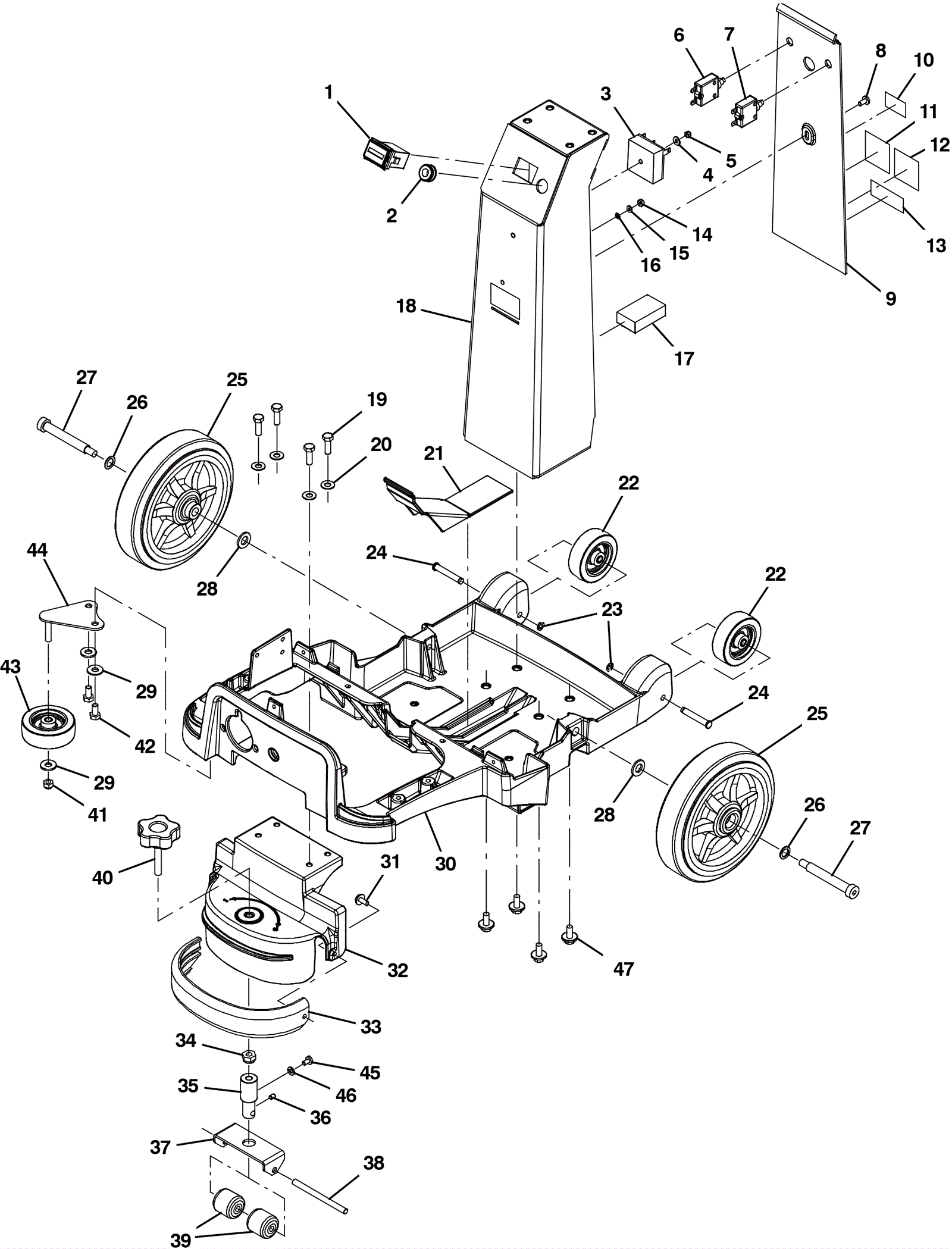

R3 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-9900 Hour meter $53.79 1 ships same day
2 275-2364 Rubber grommet (Tennant Industrial) $4.40 1 usually ships 5-16 days
3a 475-1974 MODULE, TIMER, 240VAC[T-REX READYSPACE] $121.11 1 (230V) usually ships 5-16 days
3b 275-9166 Timer module $158.40 1 (120V) usually ships 5-16 days
4 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
5 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
6a 475-1515 CIRCUITBREAKER, 2.5 AMP, 230 VOLT $45.87 1 (230V) usually ships 5-16 days
6b 175-2557 5amp circuit breaker $15.51 1 (120V) ships same day
7a 475-1409 CIRCUITBREAKER, 7.5 AMP, 230 VOLT $37.84 1 (230V) usually ships 5-16 days
7b 175-0842 15amp circuit breaker $15.51 1 (120V) ships same day
8 999-1041 Screw M6-1 x 12mm pan head phillips stainless steel $0.99 1 ships same day
9a 275-2368 Column cover $156.31 1 (230V) (includes 10-13a) usually ships 1-5 days
9b 275-9167 Column cover kit with decal $125.62 1 (120V) (includes 10, 13b) usually ships 5-16 days
10 N/A Not available Call for price 1 (safety decal) usually ships 3-26 days
11 275-2369 Flammable material decal $13.20 1 (230V) usually ships 5-16 days
12 275-2370 Read manual decal $17.05 1 (230V) usually ships 5-16 days
13a 275-2371 Warning decal $47.19 1 (230V) usually ships 1-5 days
13b 275-2352 Warning decal $9.57 1 (120V) usually ships 1-5 days
14 275-2353 Nut #8-32 hex locking $1.58 1 usually ships 1-5 days
15 999-1158 Washer #6 flat stainless steel $0.99 1 ships same day
16 999-1083 Washer #8 internal star lock stainless steel $0.99 1 ships same day
17 275-2350 Filter pump $44.00 1 (230V) usually ships 1-5 days
18 275-2351 Column kit with decal $362.56 1 usually ships 5-16 days
19 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 4 ships same day
20 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
21 275-2354 Rear frame cover $5.50 1 usually ships 5-16 days
22 175-0117 Guide wheel with bushing $9.90 2 ships same day
23 275-2355 Retaining ring $3.04 2 ships same day
24 275-2356 Clevis pin $8.47 2 ships same day
25 275-2357 Wheel assembly $53.57 2 ships same day
26 275-2358 Washer flat $4.09 2 ships same day
27 275-2359 Bolt 3/8-16 x 1/2 x 3 1/4 shoulder $10.23 2 ships same day
28 175-5407 Washer M12 flat stainless steel $3.96 2 usually ships 5-16 days
29 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 3 ships same day
30 275-9168 Frame $607.64 1 usually ships 5-16 days
31 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 2 ships same day
32 275-9169 Head adjustment bracket $79.31 1 usually ships 5-16 days
33 275-9170 Front bumper $24.64 1 usually ships 1-5 days
34 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
35 275-9171 Roller adjuster $19.36 1 usually ships 5-16 days
36 175-9339 Screw M6-1 x 8mm set socket $4.88 1 usually ships 5-16 days
37 275-9172 Roller bracket $26.84 1 usually ships 5-16 days
38 275-9173 Round bar $48.51 1 usually ships 5-16 days
39 175-0061 Roller wheel $9.57 2 usually ships 5-16 days
40 275-9174 Adjustment knob $22.00 1 usually ships 5-16 days
41 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
42 999-0783 Screw M8-1.25 x 16mm hex head $0.99 2 ships same day
43 175-0117 Guide wheel with bushing $9.90 1 ships same day
44 275-5258 Bumper wheel bracket $31.57 1 usually ships 5-16 days
45 999-0807 Screw M6-1 x 10mm flat head phillips $2.49 1 ships same day
46 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
47 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 4 ships same day
N/S 275-9175 Chassis harness $151.03 1 usually ships 1-5 days
