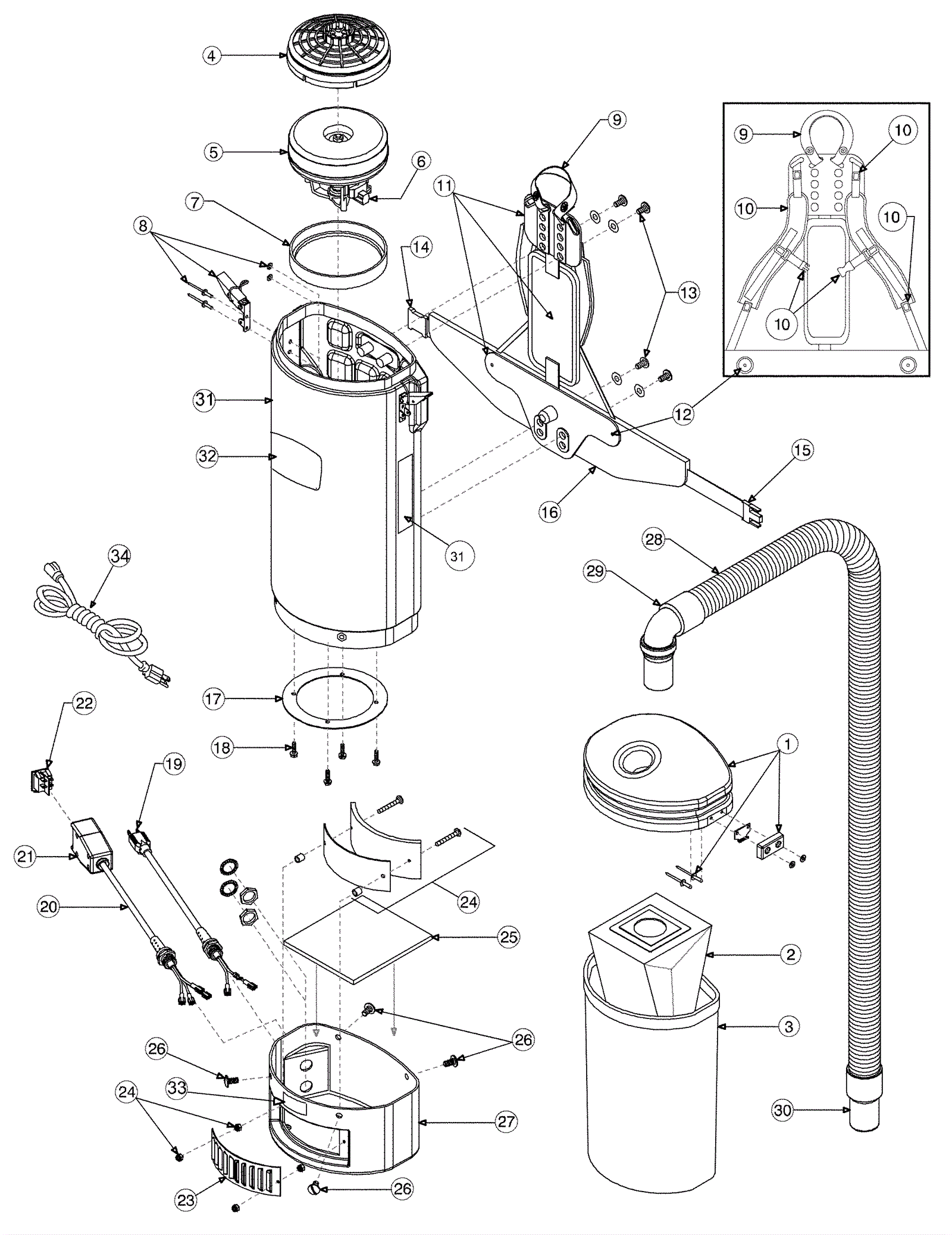

V-BP 10 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 475-2022 COVER ASSY [V-BP-10] $145.09 1 usually ships 5-16 days
2 175-4375 Filter bags (10 pack) $19.69 1 usually ships 5-16 days
3 175-1529 Microcloth filter $62.04 1 usually ships 1-5 days
4a 175-1534 Filter dome with foam media $31.24 1 usually ships 1-5 days
4b 175-1537 Foam media for dome filter $4.73 1 usually ships 1-5 days
4c 175-1554 2-pack high filtration disk $28.60 1 usually ships 1-5 days
5 175-1579 Motor fan with crimps $247.61 1 usually ships 1-5 days
6 175-1580 Carbon brush set for 1340 watt motor $45.21 1 usually ships 5-16 days
7 175-1581 Motor seal $23.98 1 usually ships 1-5 days
8 175-1582 Draw latch assembly $15.95 1 usually ships 1-5 days
9 175-1781 Carry handle with rivet and washer set $17.36 1 usually ships 1-5 days
10a 175-1791 Shoulder strap assembly with sternum strap $50.80 1 ships same day
10b N/A Not available Call for price 1 usually ships 3-26 days
10c 175-1799 Shoulder strap adjustment buckle bottom $8.47 1 usually ships 5-16 days
10d 475-0848 BUCKLE, TOP, MAL & FEM $13.97 1 usually ships 5-16 days
11 175-1800 Two piece backplate assembly with center pad $69.85 1 usually ships 1-5 days
12 175-1801 Nut barrel set kit $15.07 1 usually ships 1-5 days
13 175-1811 Backplate connection plate $43.34 1 usually ships 1-5 days
14 175-1862 Waist belt keeper $12.65 1 usually ships 1-5 days
15 175-1814 Waist belt latch $12.65 1 usually ships 1-5 days
16a 175-1821 Waist belt $156.09 1 usually ships 1-5 days
16b 175-1822 Two-piece system complete backplate $172.70 1 usually ships 1-5 days
17 175-1827 Motor plate $24.64 1 usually ships 1-5 days
18 175-1828 Compression ring kit $11.66 1 usually ships 1-5 days
19 175-4021 Power cord assembly 16/3 x 18 inches $43.56 1 usually ships 1-5 days
20a 175-1831 Cord switch assembly kit with box $86.24 1 usually ships 1-5 days
20b 175-1844 Cord switch with crimps $38.28 1 usually ships 1-5 days
22 675-9477 On/off switch $16.17 1 usually ships 5-16 days
23 175-1850 Exhaust louver $26.18 1 usually ships 1-5 days
24 175-1851 Sound/exhaust assembly $23.21 1 usually ships 5-16 days
25 175-1853 Accoustic insulator $27.17 1 usually ships 1-5 days
26 175-1855 Bottom cap screw kit $8.80 1 usually ships 1-5 days
27 475-1823 VR, CAP, BOTTOM [V-BP-10] $84.81 1 usually ships 5-16 days
28 175-1857 Static dissipating hose with cuffs $88.88 1 usually ships 1-5 days
29 175-1859 Replacement cuff with swivel elbow $33.00 1 usually ships 5-16 days
30 175-1860 Swivel replacement hose cuff 1-1/2 inches $23.54 1 usually ships 5-16 days
31a 475-2637 HOUSING, BAG[V-BP-10] $631.07 1 usually ships 5-16 days
31b N/A Not available Call for price 1 (warning decal) usually ships 3-26 days
31c N/A Not available Call for price 1 (warning decal) usually ships 3-26 days
32 275-9848 Tennant/Nobles decal $7.26 1 usually ships 5-16 days
33 N/A Not available Call for price 1 (hepa decal) usually ships 3-26 days
34 175-1861 Extension cord with cord wrap 50 feet $84.37 1 usually ships 5-16 days
