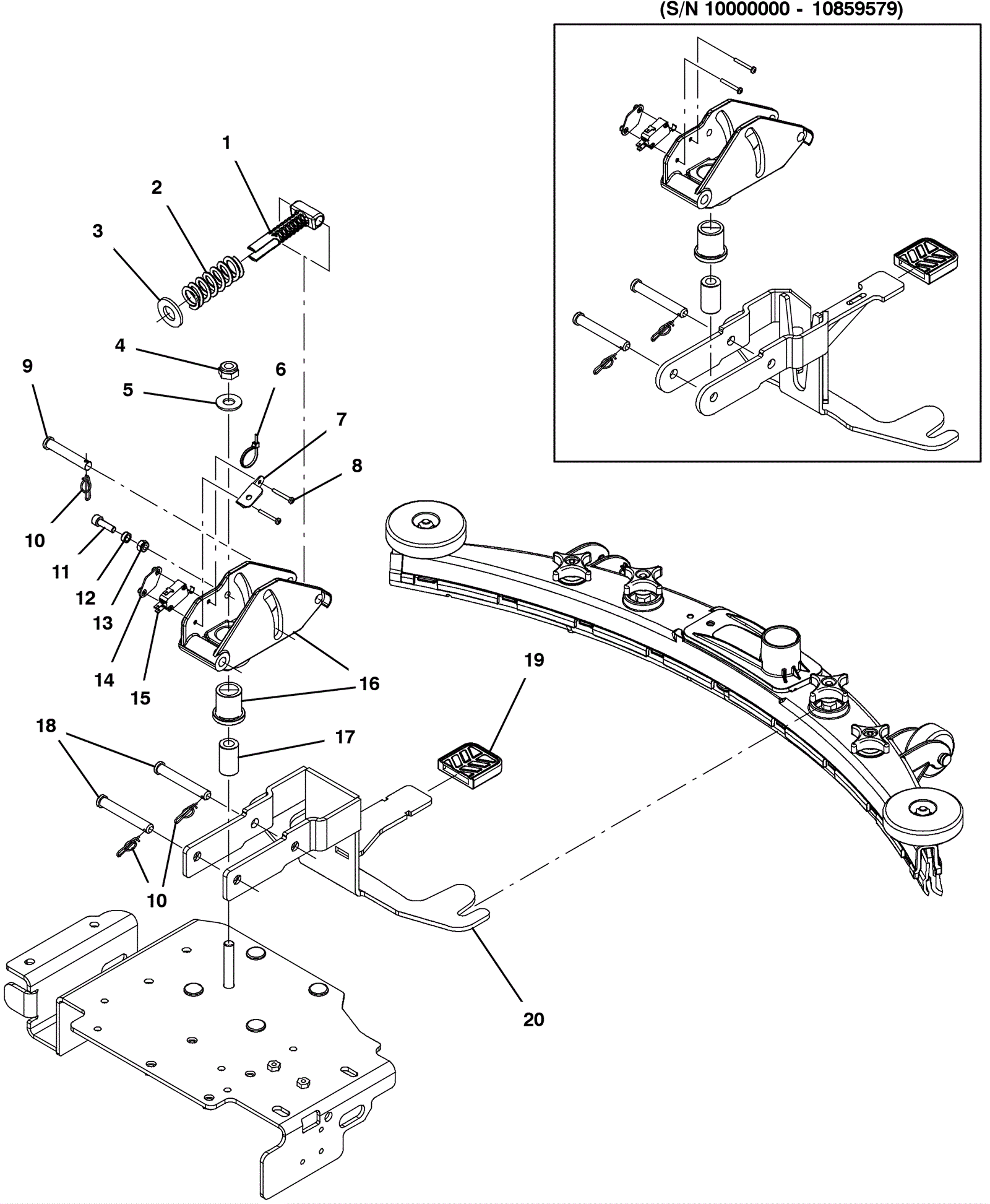

T300E Squeegee Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-0272 Spring guide pin $5.83 1 usually ships 5-16 days
2 375-0271 Spring $12.32 1 usually ships 5-16 days
3 275-3215 WASHER, THRUST, 0.63B 1.25D 0.13W $6.82 1 usually ships 5-16 days
4 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
5 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 1 ships same day
6 175-7795 Cable tie $4.75 1 ships same day
7 475-0765 BRACKET, RETAINING, WIRE [T300] $10.45 1 usually ships 5-16 days
8 999-1221 Screw M3-.5 x 25mm pan head stainless steel $0.99 2 ships same day
9 275-2176 PIN, CLEVIS, 0.37D X 2.12L $4.88 1 usually ships 5-16 days
10 375-0071 Cotter hair pin $1.85 3 ships same day
11 999-1320 Screw M6-1 x 20mm socket head stainless steel $0.99 1 ships same day
12 175-0777 P/M sleeve $5.50 1 usually ships 5-16 days
13 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 1 ships same day
14 175-7839 Switch plate $33.66 1 usually ships 5-16 days
15 375-0226 Mircroswitch $10.34 1 ships same day
16 375-1346 Squeegee lift bracket kit $184.36 1 usually ships 5-16 days
17 375-0269 Sleeve $6.82 1 usually ships 5-16 days
18 175-3341 Clevis pin $4.88 2 ships same day
19 375-0266 Lift pedal cover $11.22 1 usually ships 5-16 days
20 375-1345 Squeegee weldment bracket $185.90 1 ships same day
