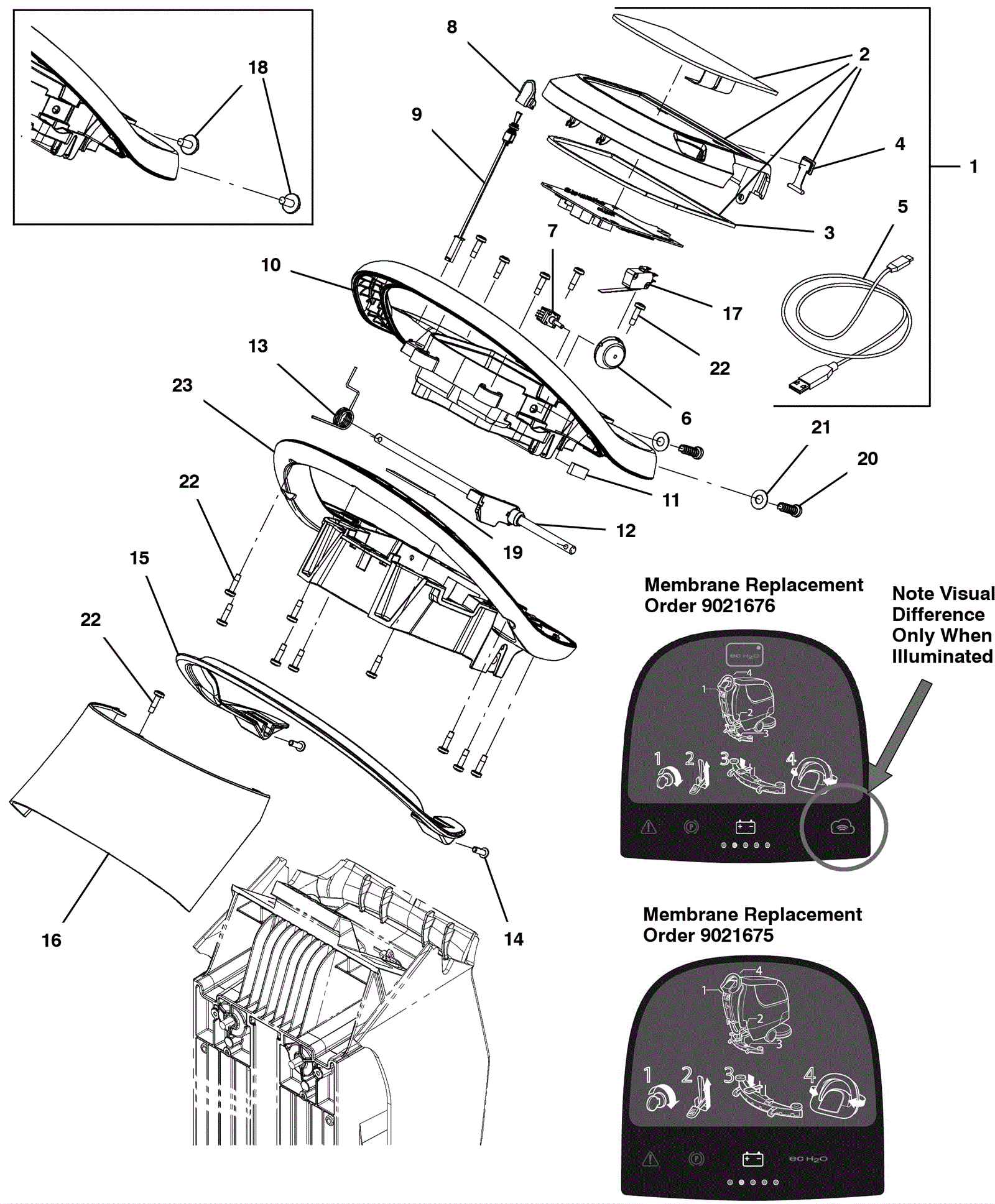

T300E Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1a 375-7841 Bezel kit $660.44 1 (includes 2a, 3-5) (after SN 11055625) (requires Tennant True service or an authorized Tennant service provider) (propel model) ships same day
1b 375-7841 Bezel kit $660.44 1 (includes 3-5) (before SN 11055626) (requires Tennant True service or an authorized Tennant service provider) (propel model) ships same day
1c 375-7842 Bezel kit $753.17 1 (includes 2b, 3-5) (after SN 11055625) (requires Tennant True service or an authorized Tennant service provider) (push model) usually ships 5-16 days
1d 375-7842 Bezel kit $753.17 1 (includes 3-5) (before SN 11055626) (requires Tennant True service or an authorized Tennant service provider) (push model) usually ships 5-16 days
2a 375-7843 Screen kit $164.89 1 (includes 3-4) (after SN 11055625) (propel model) usually ships 5-16 days
2b 375-7844 Screen kit $247.39 1 (includes 3-4) (after SN 11055625) (push model) usually ships 5-16 days
3 375-9374 Console gasket $37.18 1 usually ships 5-16 days
4 275-5430 USB cap $6.82 1 usually ships 5-16 days
5 375-1351 USB to USB mini cable $15.29 1 usually ships 5-16 days
6 375-4600 Speed range dial $8.14 1 (propel model) ships same day
7 275-5452 Potentiometer $81.73 1 (propel model) ships same day
8 275-5453 Toggle cap $6.82 1 (propel model) ships same day
9 275-5454 Toggle switch assembly $76.45 1 (propel model) ships same day
10 275-5434 Top handle housing $85.25 1 usually ships 5-16 days
11 475-2983 SEAL, AFMKT, RBR, CLSD, ADH, 01FT $3.17 1 usually ships 5-16 days
12 275-5436 Handle shaft assembly $18.92 1 usually ships 5-16 days
13 275-5435 Spring $29.26 1 usually ships 1-5 days
14 999-1403 Screw M8 x 16mm torx head $2.90 2 ships same day
15 275-5438 Bail $46.31 1 usually ships 5-16 days
16 275-5439 Handle cover $18.04 1 usually ships 5-16 days
17 275-5433 Switch $9.57 1 usually ships 5-16 days
18 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 2 ships same day
19 275-5893 Seal $25.74 1 usually ships 1-5 days
20 375-3186 Screw $9.13 2 usually ships 5-16 days
21 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
22 175-7660 Screw #10-14 x .675 shoulder self-tapping $3.04 15 ships same day
23 275-5437 Bottom handle housing $85.80 1 usually ships 5-16 days
N/S 275-5427 Wiring harness $9.13 1 ships same day
N/S 375-6168 Hour and battery gauge $39.60 1 (push model) usually ships 1-5 days
