| # | Part | Description |
Req | Notes | Availability |
|---|

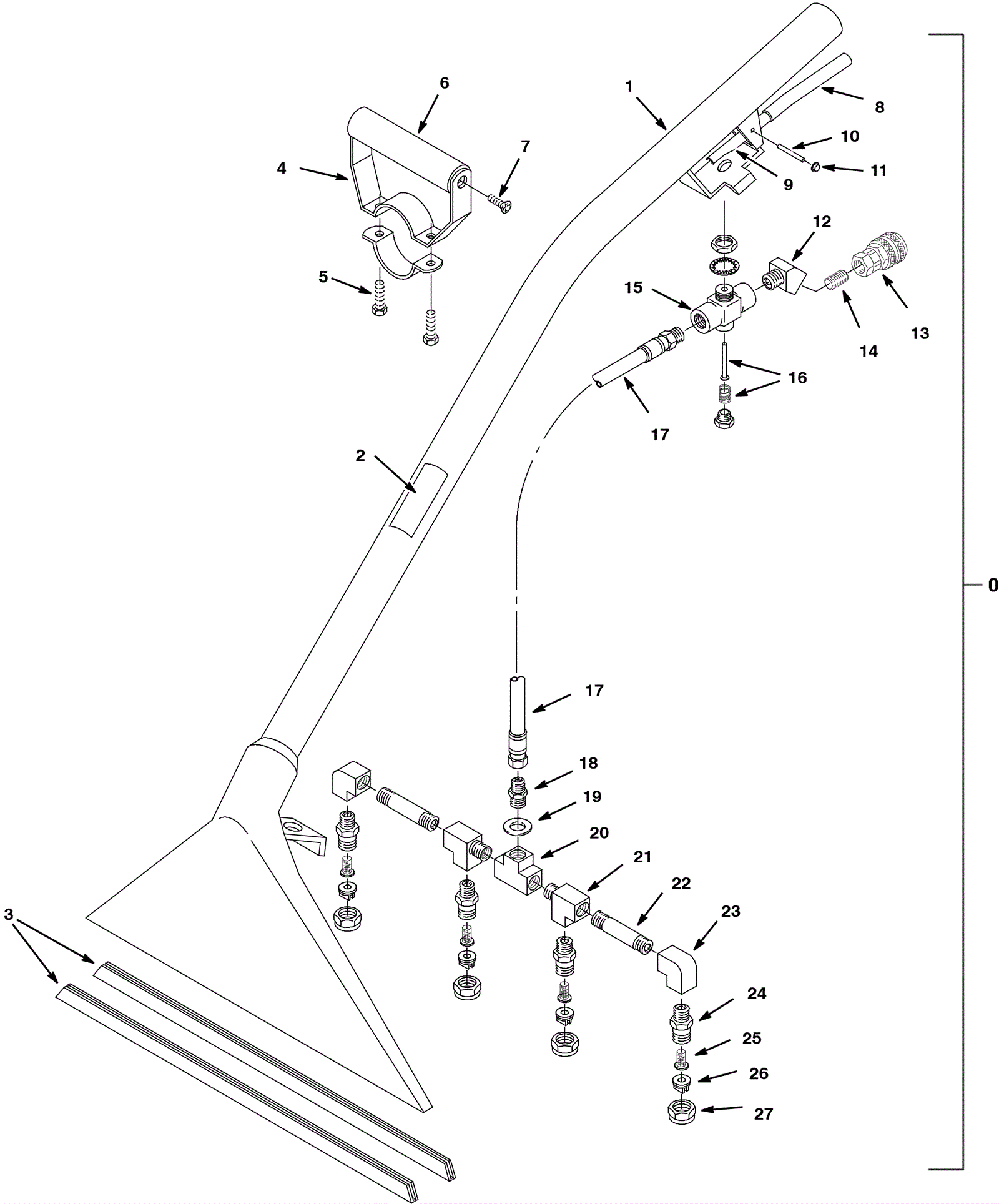

0a |
175-4314
|
16 inch low pressure wand assembly |
1 |
(includes 1a, 2, 3a, 4-20b, 21a, 22a, 23-27) (16 inch) |
|
0b |
775-0395
|
13 inch low pressure wand assembly |
1 |
(includes 1b, 2 , 3b, 4-13, 15-18, 20c, 21b, 22b, 21-25, 26b) (13 inch) |
|
1a |
175-4299
|
16 inch floor tool |
1 |
(16 inch) |
|
1b |
175-1810
|
13 inch floor tool |
1 |
(13 inch) |
|
2 |
175-3564
|
Low pressure tool decal |
1 |
|
|
3a |
175-6146
|
16 inch pick-up shoe plate stainless steel |
2 |
(16 inch) |
|
3b |
175-1321
|
13 inch pick-up shoe plate stainless steel |
2 |
(13 inch) |
|
4 |
175-1812
|
Handle assembly (OBSOLETE) |
1 |
(includes 5-7) |
|
5 |
999-0633
|
Bolt 1/4-20 x 5/8 hex head stainless steel |
2 |
|
|
6 |
175-1813
|
Foam grip |
1 |
|
|
7 |
999-0990
|
Screw 1/4-20 x 5/8 flat head phillips stainless steel |
2 |
|
|
8 |
175-1816
|
Handle sleeve |
1 |
|
|
9 |
175-1815
|
Trigger |
1 |
|
|
10 |
175-1817
|
Handle pin |
1 |
|
|
11 |
175-1818
|
Nut 1/4 push |
2 |
|
|
12 |
175-6031
|
Straight jet fitting |
1 |
|
|
13 |
991-8158
|
1/4 inch BH2-60 female coupler (mate to QD40) |
1 |
|
|
14 |
175-6244
|
Nipple |
1 |
|
|
15 |
175-1819
|
Manual valve assembly |
1 |
(includes 16) |
|
16 |
175-1820
|
Valve pin and spring kit |
1 |
|
|
17 |
175-3565
|
Solution hose assembly |
1 |
|
|
18 |
175-6239
|
1/4 inch nipple |
1 |
|
|
19 |
175-1825
|
Washer |
1 |
|
|
20a |
175-4313
|
Spray bar without tips for 16 inch wand |
1 |
(includes 20b, 21a, 22-24) (16 inch) |
|
20b |
175-6253
|
1/4 inch brass tee |
1 |
(16 inch) |
|
20c |
175-1826
|
Spray bar without tips for 13 inch wand |
1 |
(includes 21b, 22-24) (13 inch) |
|
21a |
175-6029
|
Straight tee |
2 |
(16 inch) |
|
21b |
175-1829
|
Tee fitting |
1 |
(13 inch) |
|
22 |
175-6015
|
Nipple |
2 |
|
|
23 |
175-6248
|
90 degree elbow |
2 |
|
|
24 |
175-1830
|
1/4 inch male spray body |
4 |
|
|
25 |
175-1802
|
Mesh screen filter |
4 |
|
|
26 |
175-3566
|
T-jet tip fitting |
4 |
|
|
27 |
175-1834
|
Spray nozzle cap |
4 |
|
|
