| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
175-4855
|

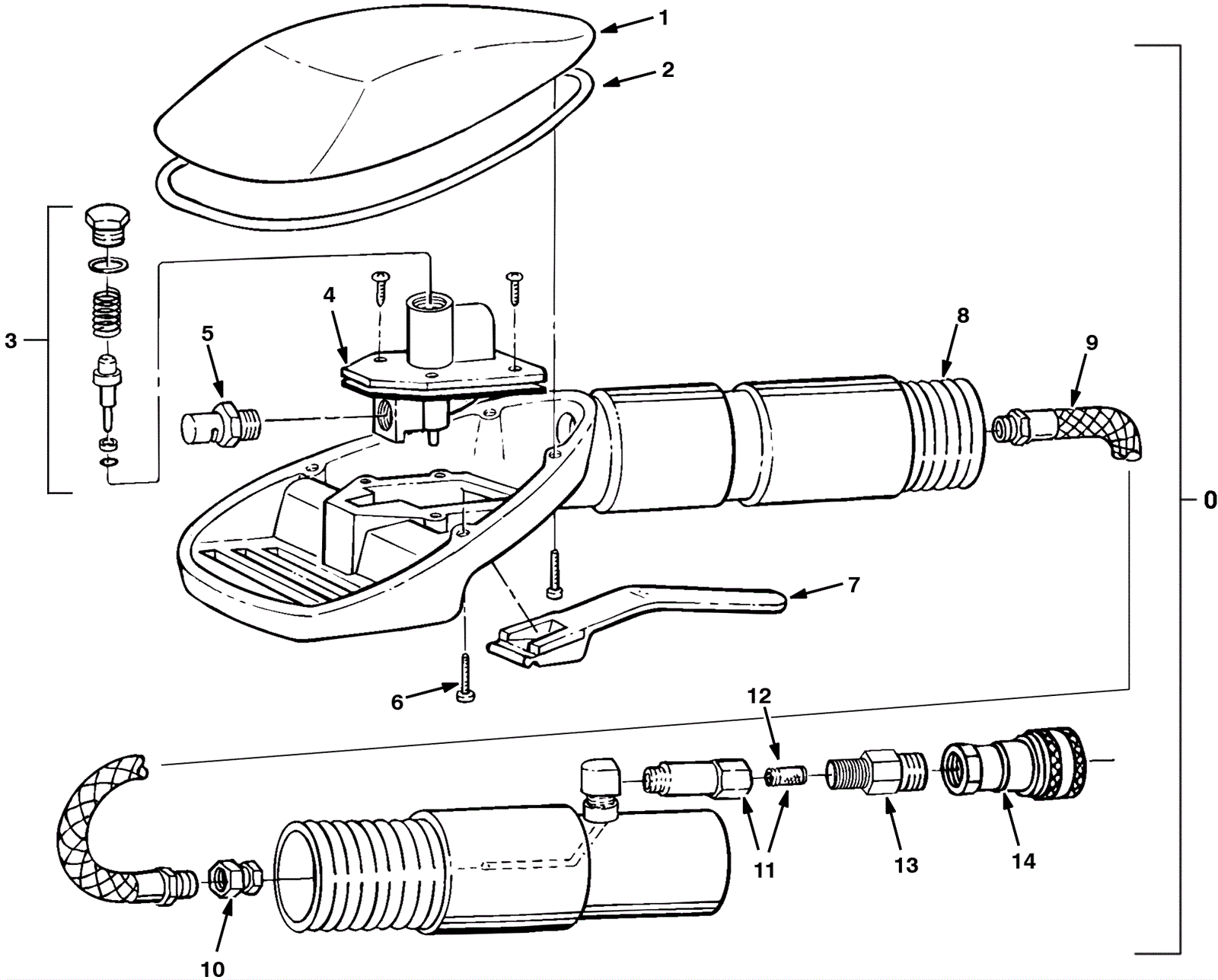

Low pressure upholstery tool assembly |
1 |
(includes 1-14) |
|
1 |
175-4856
|
Upholstery tool cover |
1 |
|
|
2 |
175-4857
|
Gasket |
1 |
|
|
3 |
175-4858
|
Valve assembly |
1 |
|
|
4 |
175-4859
|
Solution valve |
1 |
|
|
5 |
175-4860
|
Nozzle |
1 |
|
|
6 |
175-4861
|
Screw 6-32 x 3/4 inch |
4 |
|
|
7 |
175-4862
|
Trigger |
1 |
|
|
8 |
175-4863
|
Vacuum hose without cuffs |
1 |
|
|
9 |
175-4864
|
Solution hose |
1 |
|
|
10 |
175-4865
|
Fitting |
1 |
|
|
11 |
175-4866
|
Inline filter assembly |
1 |
|
|
12 |
175-4867
|
Filter screen |
1 |
|
|
13 |
175-6239
|
1/4 inch nipple |
1 |
|
|
14 |
991-8158
|
1/4 inch BH2-60 female coupler (mate to QD40) |
1 |
|
|
