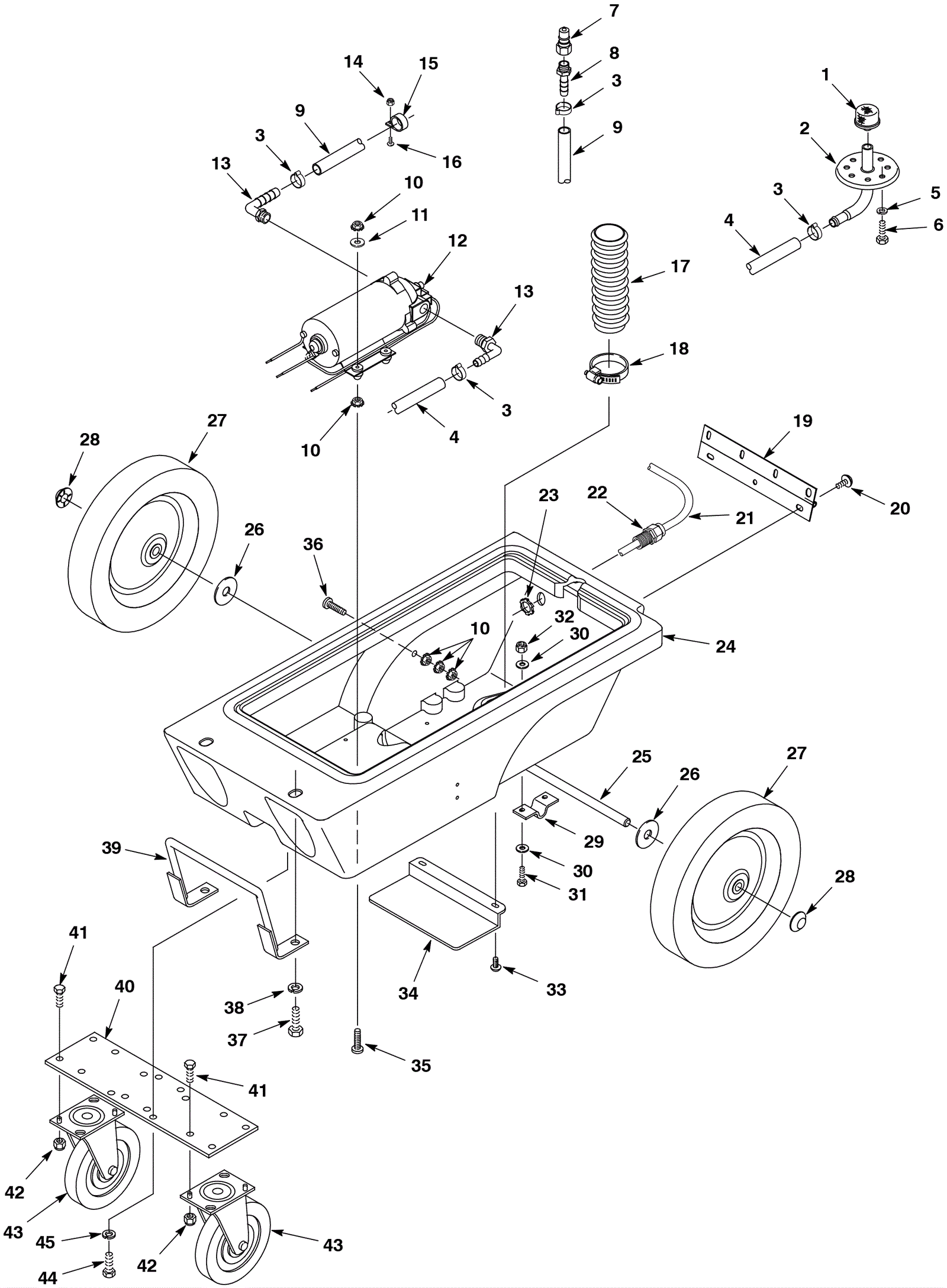

Chassis Assembly

#PartDescription ReqNotesAvailability
1 175-6079 Mesh filter screen 1
2 175-6021 Bladder plate fitting 1
3 175-6032 Hose clamp 4
4 175-7216 Hose 3/8 x 31 inch (gray) 1
5 999-0632 Washer 1/4 split lock stainless steel 4
6 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel 4
7 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) 1
8 175-2613 Straight brass fitting 1
9 175-7217 52 inch hose (gray) 1
10 999-0356 Nut 10-24 lock stainless steel 1
11 999-0006 Washer 3/16 flat zinc plated 4
12 175-6011 120V 100 PSI pump 1
13 175-6019 90 degree barbed elbow 2
14 999-0442 Nut 10-24 nylon insert lock stainless steel 1
15 175-0988 P clamp 1
16 999-1008 Screw 10-32 x 3/4 round head phillips stainless steel 1
17 175-6090 Exhaust hose 2 x 26 inch (black) 1
18 175-2057 Hose clamp 1
19 175-6077 Tank hinge 1
20 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel 7
21a 375-7816 14/3 power cord assembly 1 (OEM)
21b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM)
22 175-6124 Cord grip 1
23 175-6158 Nut 1/2 conduit 1
24 475-2471 HOUSING, RM-BLK, AFMKT [EX-SC-1020] 1
25 175-6095 Axle 1
26 999-0187 Washer 1/2 flat plain finish 2
27 175-6096 Wheel 2
28 175-6097 Hub cap 2
29 175-6098 Axle bracket 2
30 999-0016 Washer 1/4 flat plain finish 8
31 999-0076 Bolt 1/2-20 x 1 hex head grade 5 plain finish 4
32 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
33 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel 2
34 275-3866 Vacuum exhaust plate 1
35 999-0002 Screw 10-24 x 1 1/2 pan head phillips zinc plated 4
36 999-1195 Screw 10-24 x 1 1/4 round head phillips zinc plated 5
37 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated 2
38 999-0034 Washer 3/8 split lock plain finish 2
39 175-7358 Handle weldment (OBSOLETE) 1
40 175-7347 Caster mount plate 1
41 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 8
42 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 8
