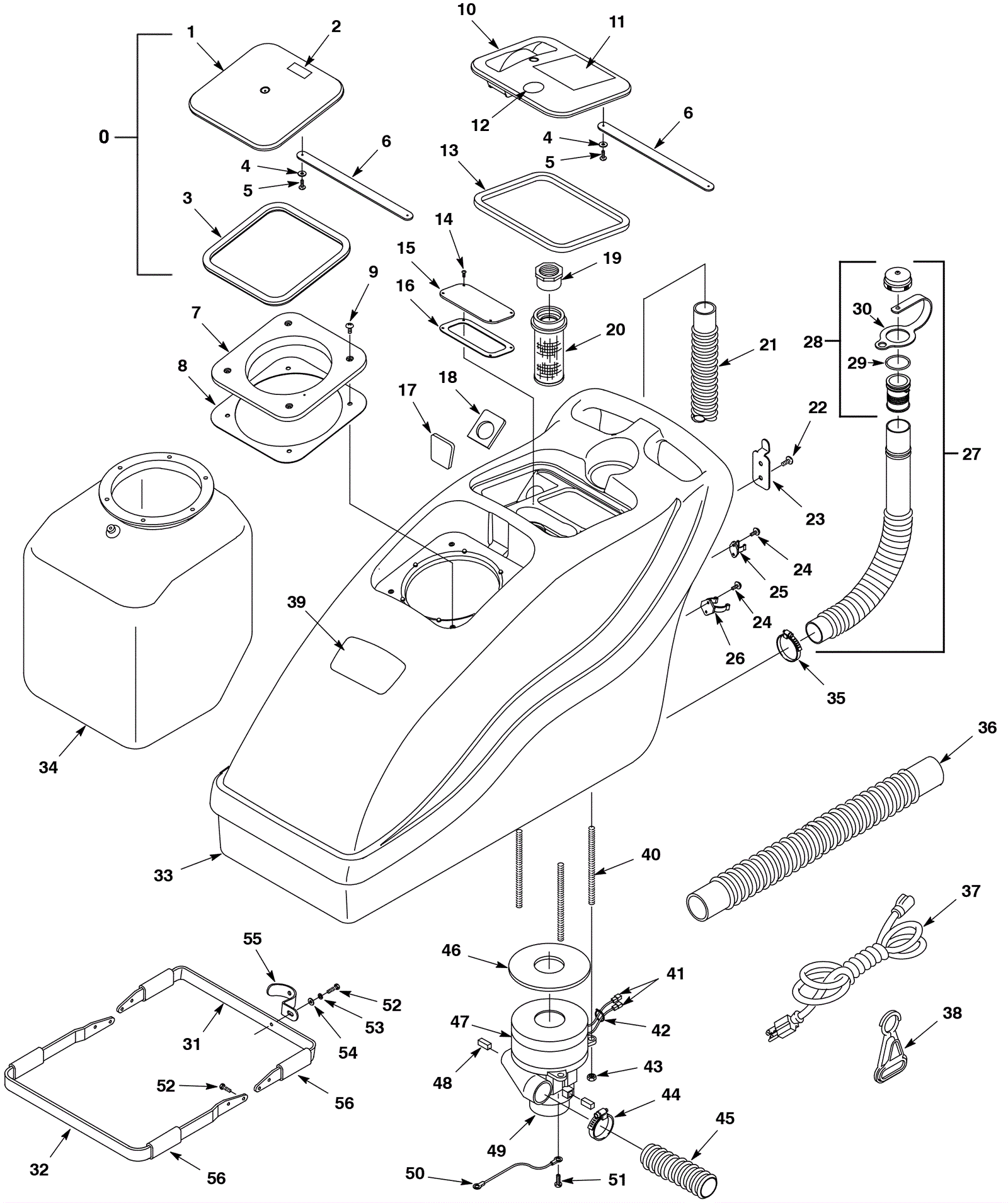

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
0 275-5134 Tank lid assembly 1 (includes 1-3)
1 275-5135 Tank lid (clear) 1
2 175-6107 Always drain decal 1
3 175-4226 Tank lid gasket 1
4 175-5797 Washer 1/6 flat zinc 4
5 999-0434 Screw 6 x 3/8 pan head phillips 4
6 175-8786 Strap 2
7 275-5136 Nylon cover adapter (black) 1
8 275-5137 Bladder bag gasket 1
9 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel 4
10 275-5138 Tank lid assembly 1 (includes 11-13)
11 275-9008 Warning decal 1
12 175-6109 Do not allow foam decal 1
13 175-9058 Tank lid gasket 1
14 999-0434 Screw 6 x 3/8 pan head phillips 4
15 275-5139 Standpipe cover 1
16 275-5140 Standpipe cover gasket 1
17 275-5141 Gasket 1
18 175-4208 Rear gasket 1
19 175-7386 PVC adapter 1
20 175-9838 Shut-off float 1
21 175-3530 Vacuum hose with cuffs 1 1/2 x 46 inch 1
22 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 2
23 175-5549 Drain hose hanger bracket 1
24 999-0421 Screw 10-24 x 1/2 flat head phillips zinc plated 4
25 275-5142 Hose clip .75 nylon (black) 1
26 275-8165 Hose clip 1
27 175-1535 Drain hose assembly 1 (includes 28-30)
28 175-4214 Drain plug assembly 1 (includes 29-30)
29 175-5804 O-ring 1
30 175-4214 Drain plug assembly 1
31 275-5146 Rear tank brace bracket 1
32 275-5147 Front tank brace bracket 1
33 275-6090 Tank assembly 1
34 175-6083 10 gallon bladder bag 1
35 997-2007 Hose clamp 1
36 175-6038 Vacuum hose with cuffs 1 1/2 x 53 inch 1
37a 175-1937 14/3 extension cord 25 feet (yellow) 1 (OEM)
37b 991-5001 14/3 extension cord 50 foot (yellow) 1 (NON-OEM)
38 175-0236 Cord belt clip 1
39 275-9770 Dual logo decal (Tennant Industrial) 2
40 175-6078 Stud 1/4-20 x 5 inch full threaded 3
41 175-3011 Female terminal 2
42 175-0037 Wire tie 2
43 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
44 175-2057 Hose clamp 1
45 175-6090 Exhaust hose 2 x 26 inch (black) 1
46 175-6084 Vacuum motor gasket 1
47b N/A Not available 1 (motor OEM 1041005 before February 2011) (replaced by 47a)
47a 175-0198 120V 3 stage vacuum motor 1 (includes 48b) (after March 2011)
48a 375-3946 Carbon brush kit 1 (after March 2011)
48b 175-6086 Carbon brush (pkg of 2) 1 (for motor OEM 1041005 before February 2011)
49 175-6954 Cooling fan cover 1 (for motor OEM 1041005 before February 2011)
50 175-7215 18 gauge wire assembly 1
51 175-4550 Ground screw 1
52 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 5
53 999-0632 Washer 1/4 split lock stainless steel 1
54 999-0016 Washer 1/4 flat plain finish 1
55 275-5145 Tank brace clamp 1
56 175-6102 Grip 4
