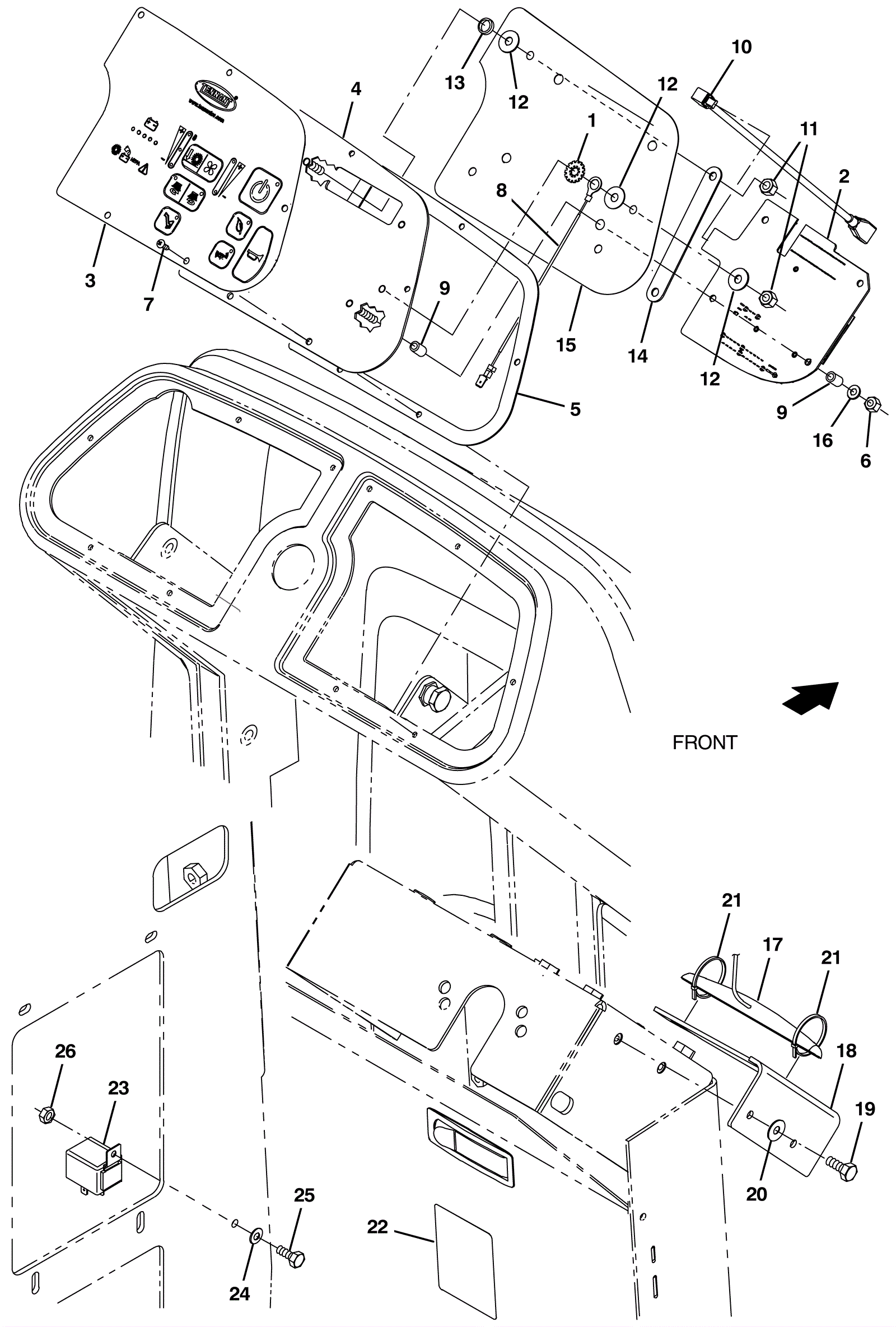

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1a |
375-8460
|
Circuit board kit with telemetry |
$2,777.89
|
1 |
(includes 1b-16) (requires Tennant True service or an authorized Tennant service provider) |
usually ships 10-16 days |
1b |
275-0288
|
Washer 1/4 internal-external lock |
$3.96
|
1 |
(requires Tennant True service or an authorized Tennant service provider) |
ships same day |
2 |
375-8461
|
Circuitboard assembly |
Call for price
|
1 |
(requires Tennant True service or an authorized Tennant service provider) |
usually ships 10-16 days |
3a |
375-8196
|
Membrane kit |
$733.59
|
1 |
(includes 3b-5) (requires Tennant True service or an authorized Tennant service provider) |
usually ships 10-16 days |
3b |
375-8202
|
Overlay panel |
Call for price
|
1 |
(requires Tennant True service or an authorized Tennant service provider) |
usually ships 10-16 days |
4 |
375-8203
|
Right hand spacer console plate |
Call for price
|
1 |
(requires Tennant True service or an authorized Tennant service provider) |
usually ships 10-16 days |
5 |
375-8197
|
Right hand dash gasket |
$33.55
|
1 |
(requires Tennant True service or an authorized Tennant service provider) |
usually ships 10-16 days |
6 |
999-0740
|
Nut M5-.8 hex stainless steel |
$0.99
|
8 |
(requires Tennant True service or an authorized Tennant service provider) |
ships same day |
7 |
175-2146
|
Screw 6-20 x 1/2 pan head |
$3.04
|
5 |
(requires Tennant True service or an authorized Tennant service provider) |
usually ships 10-16 days |
8 |
375-0108
|
Electrical harness |
$6.49
|
1 |
(requires Tennant True service or an authorized Tennant service provider) |
usually ships 10-16 days |
9 |
675-9527
|
Spacer |
$31.46
|
8 |
(requires Tennant True service or an authorized Tennant service provider) |
usually ships 10-16 days |
10 |
375-4076
|
USB cable |
$26.07
|
1 |
(requires Tennant True service or an authorized Tennant service provider) |
usually ships 10-16 days |
11 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
$1.32
|
4 |
(requires Tennant True service or an authorized Tennant service provider) |
ships same day |
12 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
6 |
(requires Tennant True service or an authorized Tennant service provider) |
ships same day |
13 |
275-6930
|
Spacer (TENNANT INDUSTRIAL) |
$2.60
|
3 |
(requires Tennant True service or an authorized Tennant service provider) |
usually ships 1-5 days |
14 |
375-8199
|
Right hand console retainer bracket |
$45.84
|
1 |
(requires Tennant True service or an authorized Tennant service provider) |
usually ships 10-16 days |
15 |
375-8198
|
Right hand console cover |
$48.34
|
1 |
(requires Tennant True service or an authorized Tennant service provider) |
usually ships 10-16 days |
16 |
175-6161
|
Nylon washer |
$3.83
|
4 |
(requires Tennant True service or an authorized Tennant service provider) |
usually ships 10-16 days |
17 |
375-9391
|
Telem antenna |
$60.28
|
1 |
|
usually ships 10-16 days |
18 |
375-8462
|
Antenna bracket |
$247.38
|
1 |
|
usually ships 10-16 days |
19 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
$0.99
|
2 |
|
ships same day |
20 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
21 |
275-0126
|
TIE, CABLE, 6.0L, 1.25D MAX (Tennant Industrial) |
$4.20
|
2 |
|
usually ships 1-5 days |
22 |
375-5142
|
Decal |
$28.27
|
1 |
|
usually ships 10-16 days |
23 |
375-4554
|
36V relay |
$32.01
|
1 |
|
ships same day |
24 |
999-0998
|
Washer #10 flat stainless steel |
$0.99
|
1 |
|
ships same day |
25 |
175-6939
|
Screw M5 x 16mm stainless steel |
$3.70
|
1 |
|
ships same day |
26 |
999-0740
|
Nut M5-.8 hex stainless steel |
$0.99
|
1 |
|
ships same day |
