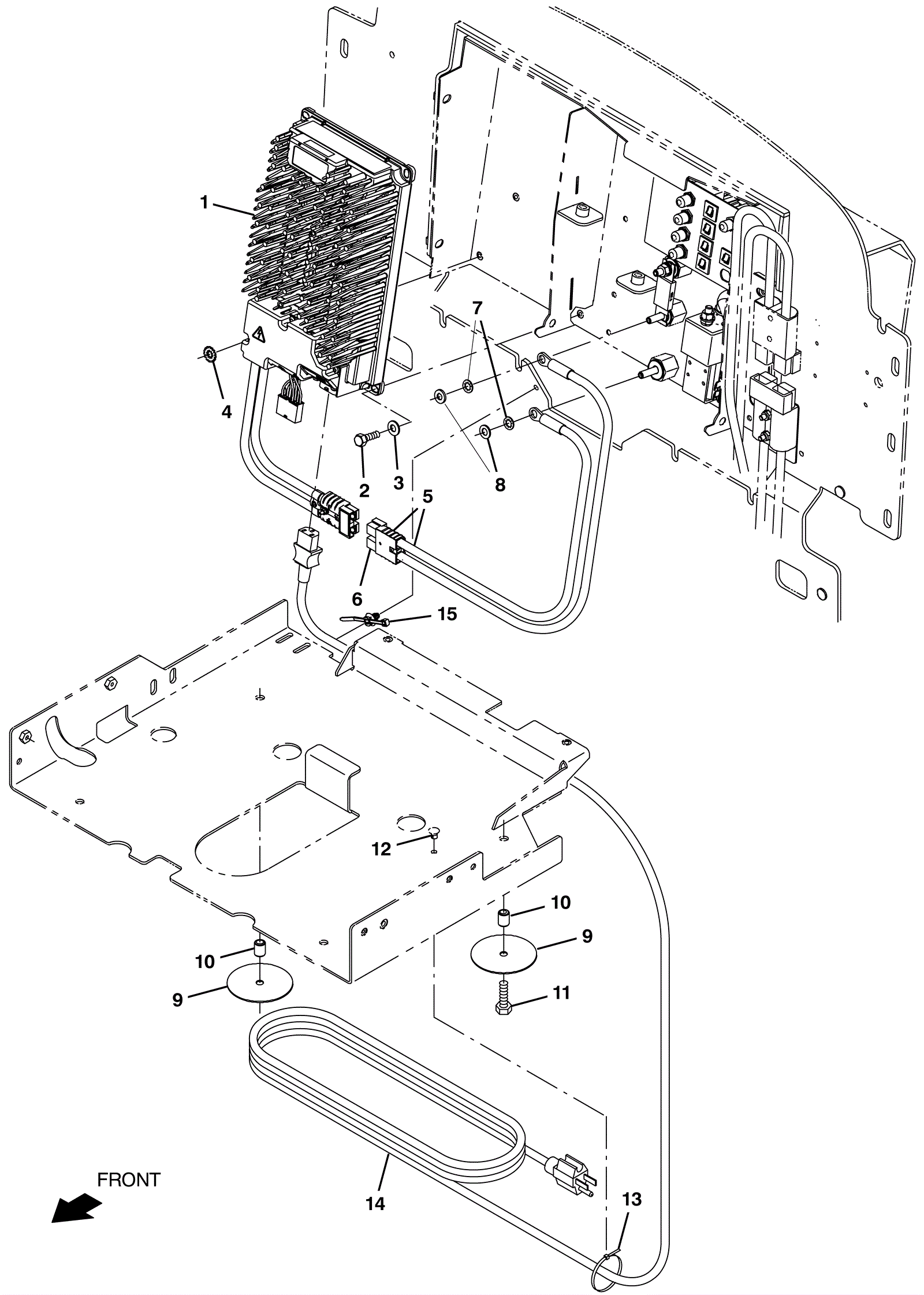

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
375-4593
|
36V on-board battery charger |
1 |
(900W) |
usually ships 16-21 days |
1b |
375-2501
|
36V on-board battery charger for lithium |
1 |
(1200W) |
usually ships 16-21 days |
2 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
4 |
|
usually ships 11-14 days |
3 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
usually ships 11-14 days |
4 |
275-0288
|
Washer 1/4 internal-external lock |
1 |
|
usually ships 16-21 days |
5 |
375-4596
|
Charger harness |
1 |
(includes 6) |
usually ships 16-21 days |
6 |
991-2105
|
SB50 50amp charger plug with pins (gray) |
1 |
|
usually ships 13-17 days |
7 |
999-0406
|
Washer 5/16 internal star lock zinc plated |
2 |
|
usually ships 11-14 days |
8 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
usually ships 11-14 days |
9 |
375-8350
|
Retainer plate |
2 |
|
usually ships 16-21 days |
10 |
175-9263
|
Sleeve |
2 |
|
usually ships 16-21 days |
11 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
2 |
|
usually ships 11-14 days |
12 |
275-7625
|
Plastic clip |
1 |
|
usually ships 1-5 days |
13 |
375-3863
|
Cable tie (Tennant Industrial) |
1 |
|
usually ships 16-21 days |
14 |
275-5446
|
16/3 power cord 15 foot (black) |
1 |
|
usually ships 16-21 days |
15 |
275-5197
|
Fir tree clip |
1 |
|
usually ships 16-21 days |
