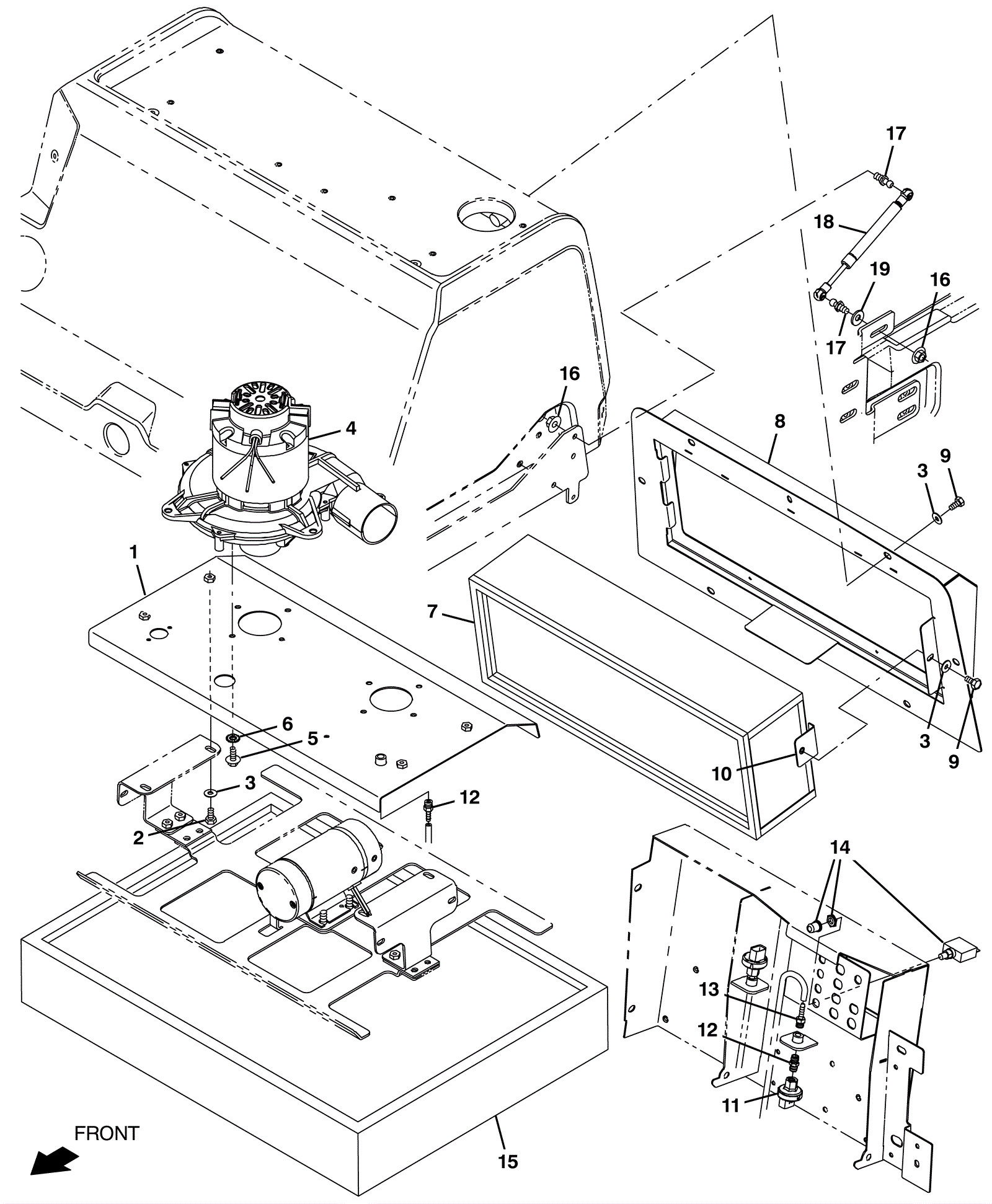

S16 Hepa Vacuum Fan Assembly-Optional

#PartDescriptionPriceReqNotesAvailability
1a 375-8430 Fan mounting plate weldment Call for price 1 (high dump before SN 002145) (low dump before SN 001076) usually ships 10-16 days
1b 375-8431 Fan mounting plate weldment $166.98 1 (high dump after SN 002144) (Iow dump after SN 001075) usually ships 10-16 days
2 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
3 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
4a 375-8309 36V 1 stage vacuum motor $542.94 1 (includes 4b) usually ships 10-16 days
4b 375-8310 Fan motor brush kit $49.83 1 usually ships 10-16 days
5 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 4 ships same day
6 275-0288 Washer 1/4 internal-external lock $3.96 1 ships same day
7 375-8432 Hepa filter $703.78 1 usually ships 10-16 days
8 375-8433 Filter cover weldment $377.63 1 usually ships 10-16 days
9 175-8867 SCREW, HEX, M6 X 1.00 X 12, SS (Tennant Industrial) $5.17 10 usually ships 1-5 days
10 375-8434 Filter mount bracket weldment $50.38 1 usually ships 10-16 days
11 375-8435 Pressure sensor assembly $160.53 1 usually ships 10-16 days
12 375-8300 Filter with filter $15.95 1 usually ships 10-16 days
13 175-3366 Fitting $4.88 2 usually ships 10-16 days
14 175-2151 30amp circuit breaker $15.51 1 usually ships 10-16 days
15 375-8303 Dust panel filter $354.31 1 usually ships 10-16 days
16 999-0665 Nut M8-1.25 flange lock $0.99 2 ships same day
17 275-5188 Ball stud $6.82 2 usually ships 10-16 days
18 675-9630 GASSPRING, 90LB, 3.15STRK (Tennant Industrial) $75.35 1 usually ships 10-16 days
19 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
