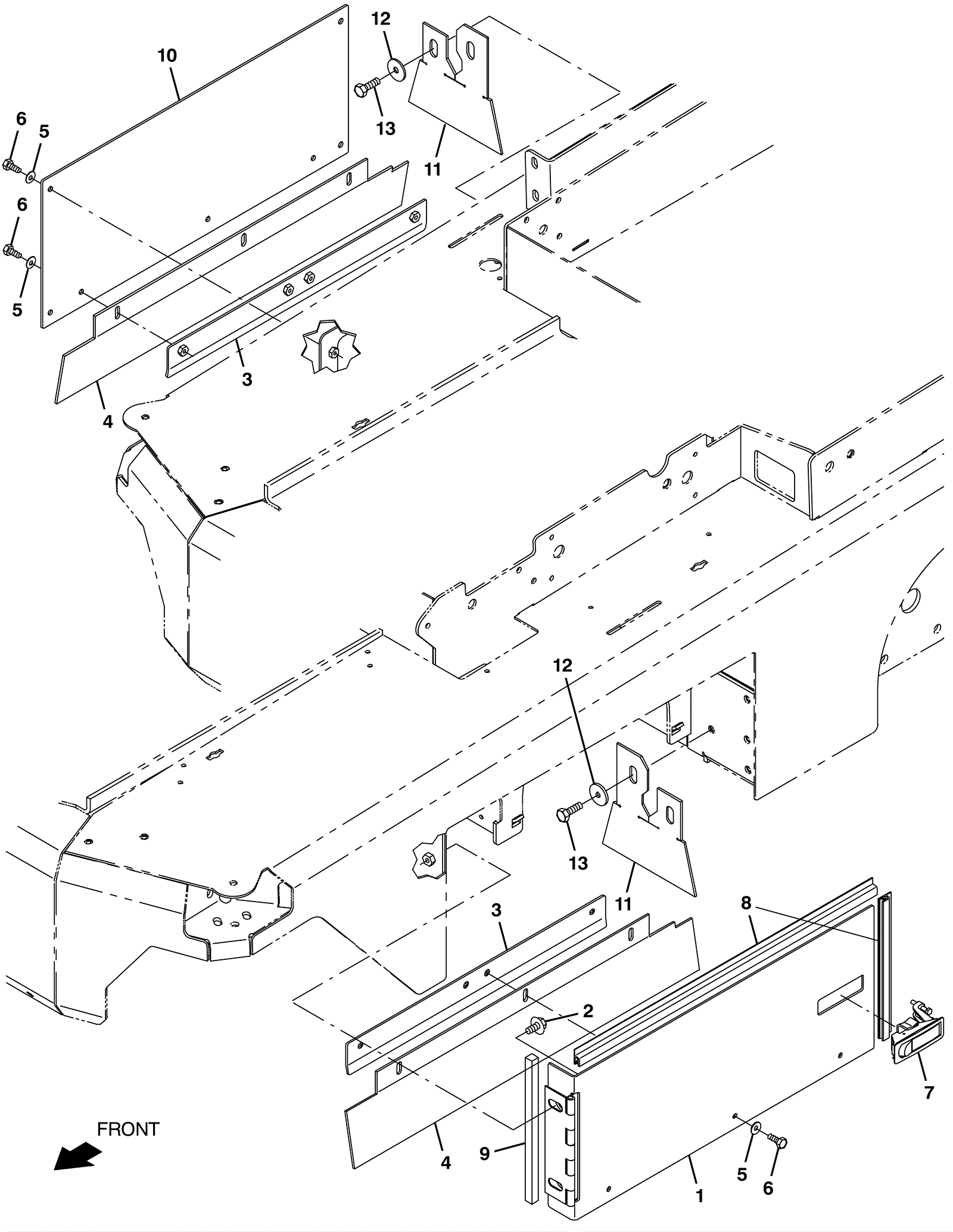

S16 Brush Door Dust Control Skirts Assembly-Optional

#PartDescriptionPriceReqNotesAvailability
1 375-8420 Skirt door weldment $183.59 1 usually ships 10-13 days
2 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.49 2 ships same day
3 375-8421 Skirt retainer bracket weldment $81.18 2 usually ships 10-13 days
4 375-8422 Door skirt $33.11 2 usually ships 10-13 days
5 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 10 ships same day
6 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 10 ships same day
7 275-0047 Latch $73.48 1 usually ships 10-13 days
8 575-5926 SEAL, AFMKT, WIPER, 03FT (Tennant Industrial) $71.01 1 usually ships 10-13 days
9 375-8423 Rubber seal $24.31 1 usually ships 10-13 days
10 375-8424 Brush skirt door plate $67.68 1 usually ships 10-13 days
11 375-8425 Rear side skirt $29.15 2 usually ships 10-13 days
12 275-7133 Washer .34B x 1.25D x .11 flat stainless steel $5.50 4 ships same day
13 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 4 ships same day
