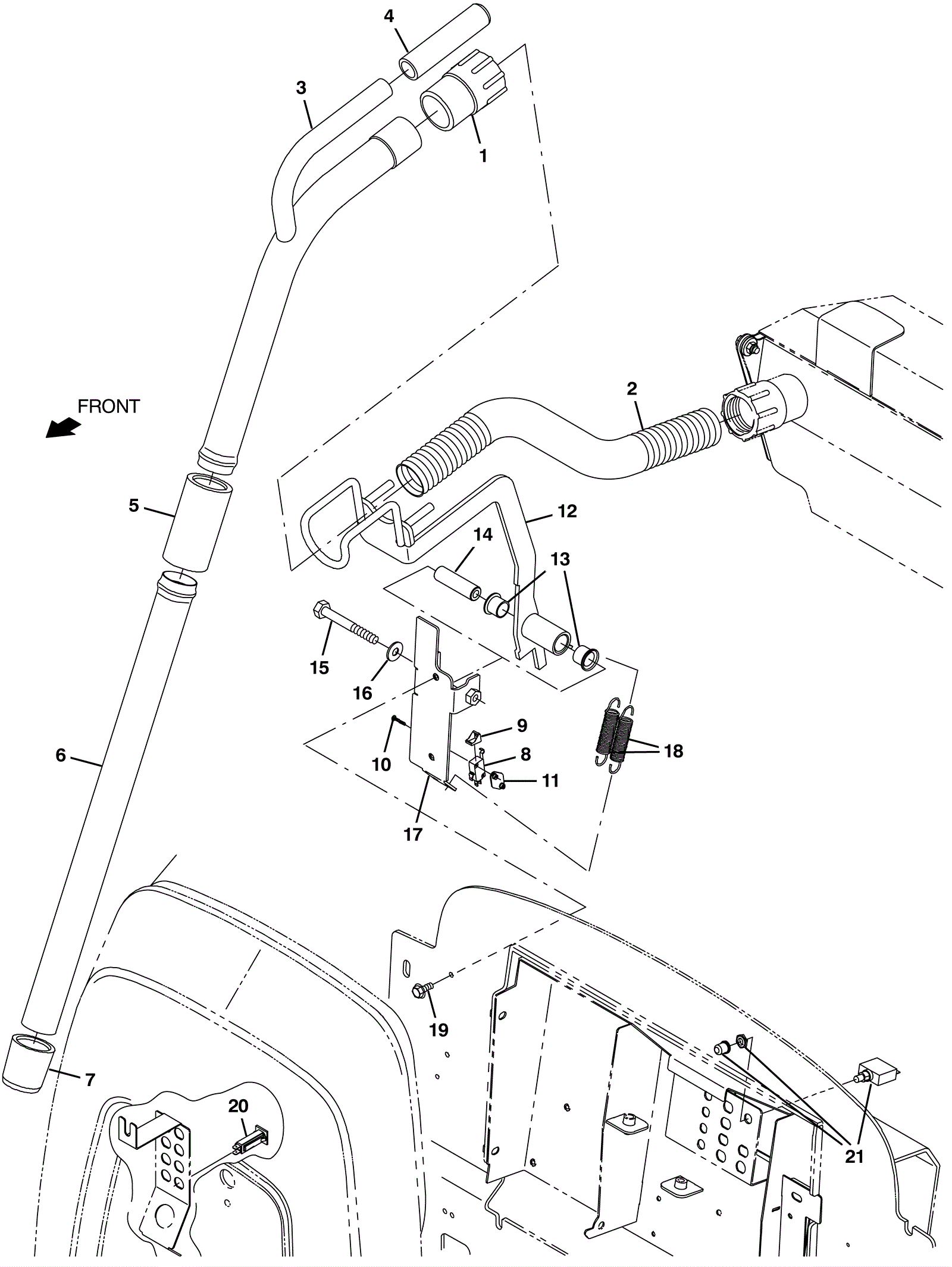

S16 Vacuum Wand Assembly-Optional

#PartDescriptionPriceReqNotesAvailability
1 175-9306 Hose cuff $29.59 1 usually ships 5-16 days
2 175-9417 Flex hose $40.59 1 usually ships 5-16 days
3 375-8389 Vacuum tube weldment $617.32 1 usually ships 1-5 days
4 375-8390 Handle grip $10.19 1 usually ships 1-5 days
5 375-8391 Cuff $123.20 1 usually ships 1-5 days
6 375-8392 Vacuum tube $219.34 1 usually ships 1-5 days
7 175-9409 Vacuum wand coupling $38.61 1 usually ships 5-16 days
8 375-0226 Mircroswitch $10.12 1 ships same day
9 175-4723 Switch boot $15.07 1 usually ships 5-16 days
10 999-1221 Screw M3-.5 x 25mm pan head stainless steel $0.99 2 ships same day
11 175-7839 Switch plate $33.00 1 usually ships 5-16 days
12a 375-8393 Vacuum wand hanger kit $741.73 1 (includes 12b-13) usually ships 1-5 days
12b 375-8394 Pivot wand handle weldment $376.42 1 usually ships 1-5 days
13 275-6956 Flange bearing $18.26 2 usually ships 5-16 days
14 375-8395 Tube $81.95 1 usually ships 1-5 days
15 275-2104 SCREW, HEX, M10 X 1.50 X 90, 8.8 (Tennant Industrial) $8.85 1 usually ships 1-5 days
16 999-0032 Washer 3/8 USS flat plain finish $2.42 1 ships same day
17 375-8396 Wand mounting plate weldment $79.42 1 usually ships 1-5 days
18 275-0840 Tension spring $6.60 2 usually ships 5-16 days
19 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 ships same day
20 275-5483 2.5amp circuit breaker $12.76 1 usually ships 5-16 days
21 991-1631 25amp circuit breaker $13.80 1 ships same day
