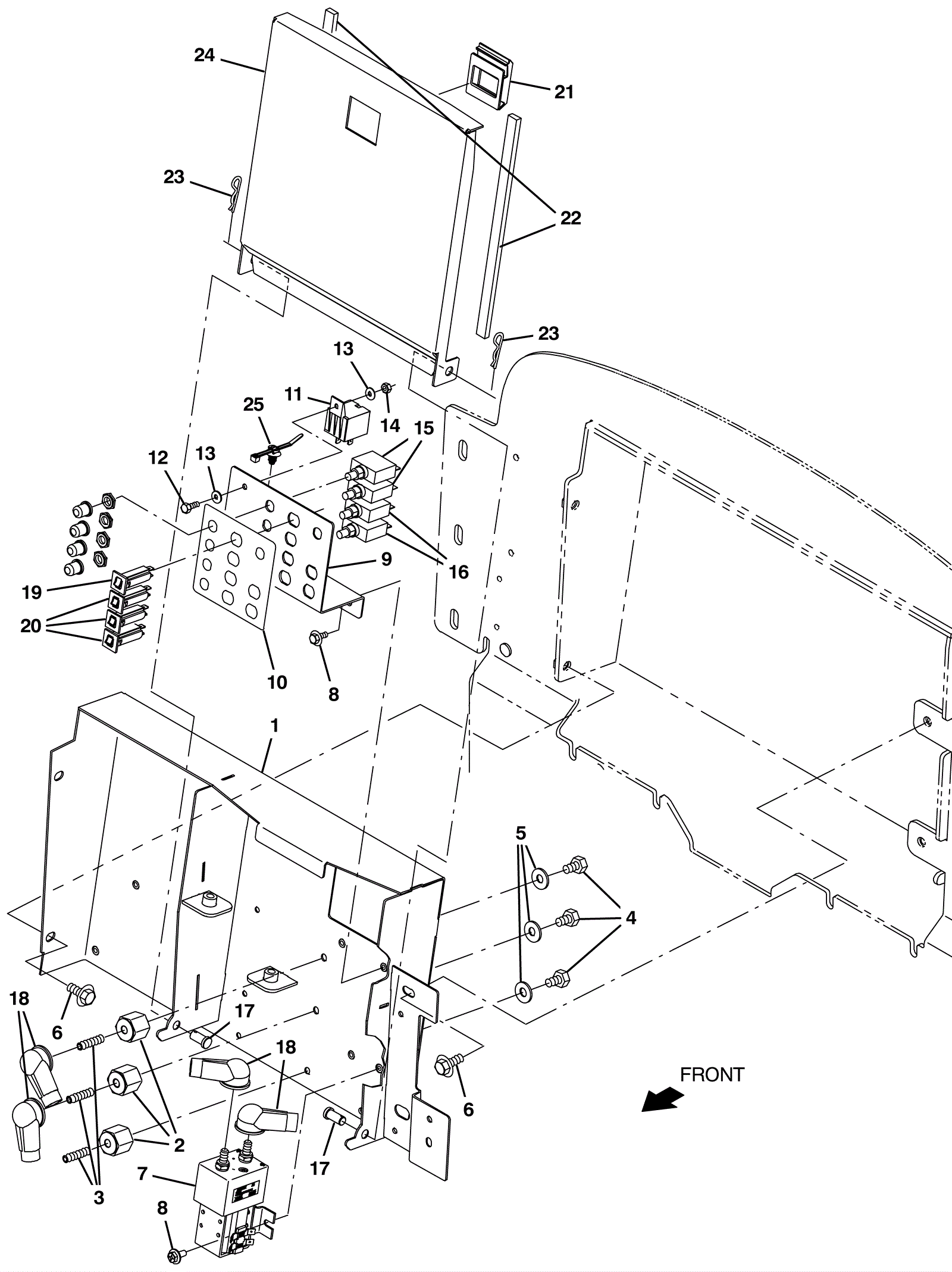

S16 Electrical Box Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-8366 Charger mount bracket weldment $266.64 1 usually ships 10-16 days
2 375-0176 Insulated stand-off $13.20 3 usually ships 1-5 days
3 175-4271 Screw M8 x 35mm set $4.88 3 usually ships 10-16 days
4 999-1415 Screw M8-1.25 x 12mm hex head stainless steel $1.52 3 ships same day
5 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 3 ships same day
6 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 4 ships same day
7 275-2713 36V 200amp contactor (Tennant Industrial) $180.87 1 usually ships 10-16 days
8 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 4 ships same day
9 375-8367 Rear breaker bracket $49.39 1 usually ships 10-16 days
10 375-8368 Rear circuitbreaker decal $89.65 1 usually ships 10-16 days
11 375-4554 36V relay $32.01 1 ships same day
12 175-6939 Screw M5 x 16mm stainless steel $3.70 1 ships same day
13 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
14 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
15 175-0843 40amp circuitbreaker $32.23 2 ships same day
16 175-2151 30amp circuit breaker $15.51 2 usually ships 10-16 days
17 175-3344 Clevis pin $7.70 2 usually ships 10-16 days
18 275-7746 Boot (red) (Tennant Industrial) $8.17 4 usually ships 1-5 days
19 175-5969 15amp circuit breaker (Tennant Industrial) $7.67 1 ships same day
20 275-5483 2.5amp circuit breaker $13.09 3 usually ships 10-16 days
21 275-0255 Push latch 1 1/2 x 1.8 $12.21 1 usually ships 10-16 days
22 275-0668 Foam rubber seal $4.62 1 usually ships 1-5 days
23 175-2117 Cotter pin $4.88 2 ships same day
24 375-8369 Electrical box cover kit $268.18 1 usually ships 10-16 days
25 275-5197 Fir tree clip $2.11 1 usually ships 10-16 days
