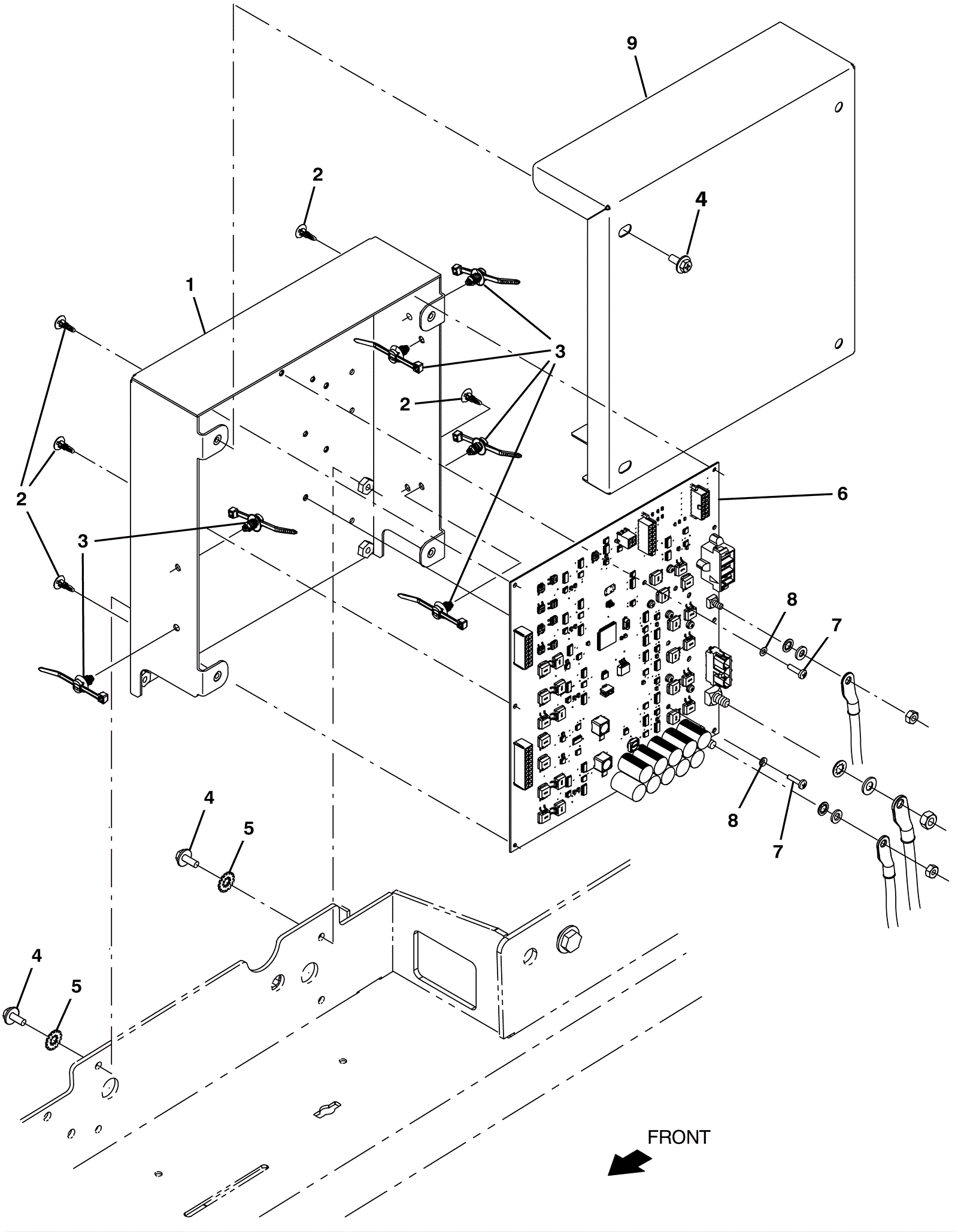

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
375-8364
|
Control housing weldment |
$174.68
|
1 |
|
usually ships 10-16 days |
2 |
475-7425
|
STAND-OFF, CIRCUITBOARD [0.25 inch] (Tennant Industrial) |
$2.20
|
8 |
|
usually ships 10-16 days |
3 |
275-5197
|
Fir tree clip |
$2.11
|
6 |
|
usually ships 10-16 days |
4 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
$3.96
|
8 |
|
ships same day |
5 |
275-0288
|
Washer 1/4 internal-external lock |
$3.96
|
4 |
|
ships same day |
6 |
375-9686
|
Circuit board kit |
$1,651.87
|
1 |
(requires Tennant True service or an authorized Tennant service provider) |
usually ships 10-16 days |
7 |
175-5310
|
Screw 4 x 45/64 x 16 pan head |
$3.96
|
6 |
|
usually ships 1-5 days |
8 |
275-7743
|
Washer .17x.31x.03 flat nylon |
$1.85
|
6 |
|
usually ships 1-5 days |
9 |
375-8365
|
Controls cover box |
$120.01
|
4 |
|
usually ships 10-16 days |
