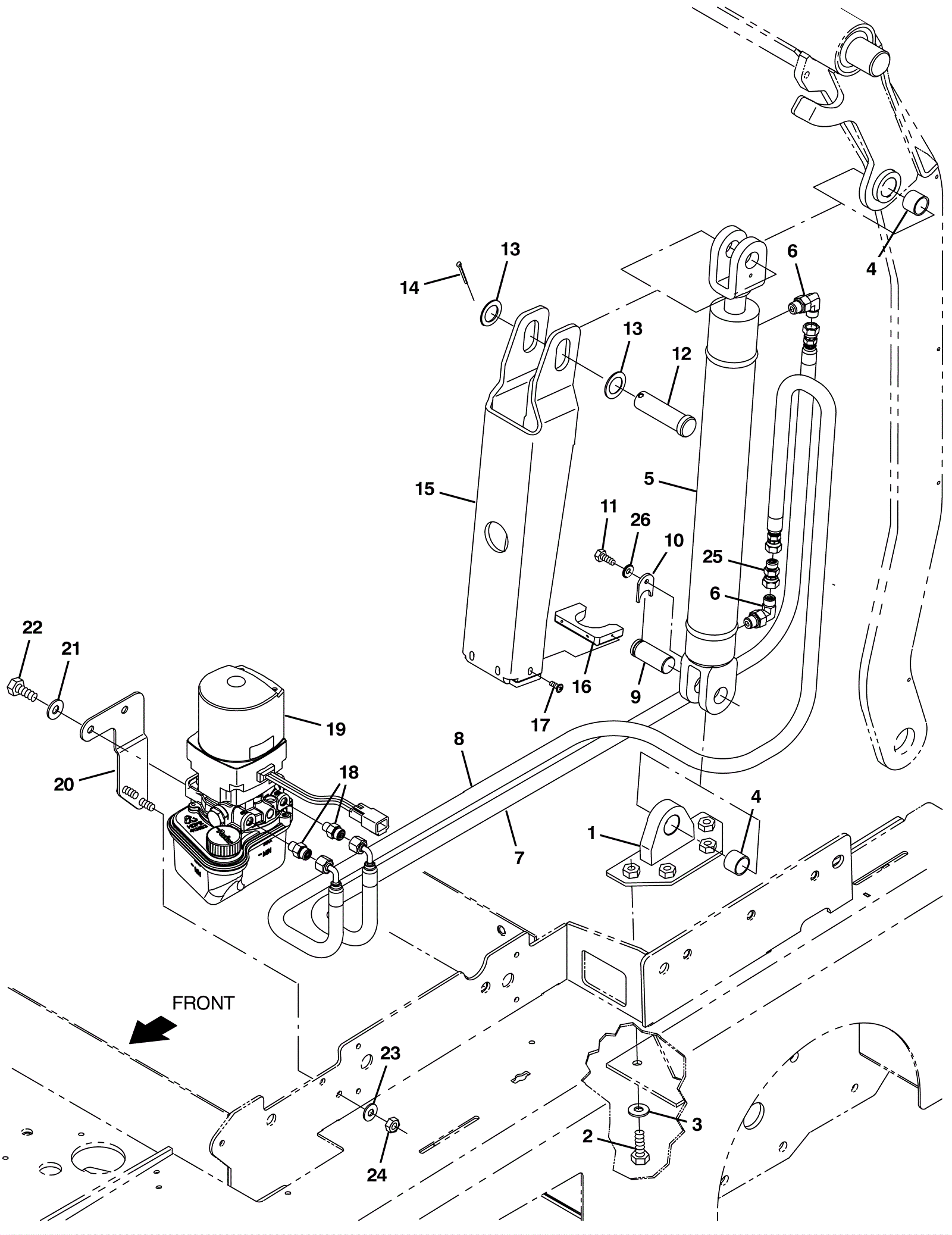

S16 High Dump Hopper Hydraulic Lift Cylinder Assembly

#PartDescriptionPriceReqNotesAvailability
1a 375-8354 Lug hopper kit $260.04 1 (includes 1b-2) usually ships 10-16 days
1b 375-8355 Cylindrical mount plate $175.54 1 usually ships 10-16 days
2 275-8465 BUSHING, SLEEVE, 0.88B 1.00D 0.75L, BNZ (Tennant Industrial $19.17 1 usually ships 1-5 days
3 275-0033 Screw M10-1.5 x 30mm hex head 8.8 $5.28 4 usually ships 1-5 days
4 575-0940 FITTING, HYD, RST, FM04/OF04, .047 (Tennant Industrial) $16.67 1 usually ships 10-16 days
5 375-0725 Cylinder (Tennant Industrial) $915.18 1 usually ships 1-5 days
6 575-4094 FITTING, HYD, E90, FM04/OM06 (Tennant Industrial) $42.51 2 usually ships 10-16 days
7 375-8356 Hose $102.30 1 usually ships 10-16 days
8 375-8357 Hose $111.87 1 usually ships 10-16 days
9 375-8358 Pin $49.51 1 usually ships 10-16 days
10 375-8359 Keeper plate $3.56 1 usually ships 10-16 days
11 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
12 375-8360 Clevis pin $23.50 1 usually ships 10-16 days
13 175-3217 Washer .91b x 1.38d x .06 steel plated $5.28 2 usually ships 10-16 days
14 175-4986 Cotter pin $3.30 1 usually ships 1-5 days
15 375-8361 Cylindrical safety plate $166.87 1 usually ships 10-16 days
16 275-0558 GUIDE, CYL (Tennant Industrial) $25.01 1 usually ships 1-5 days
17 175-3223 Screw 12-16 x 1/2 pan head plastic $5.28 4 usually ships 1-5 days
18 475-9843 FITTING, HYD, STR, FM04/OM04 (Tennant Industrial) $9.84 2 usually ships 10-16 days
19 375-8362 36V pump $1,240.14 1 usually ships 10-16 days
20 375-8363 Bracket $42.18 1 usually ships 10-16 days
21 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
22 999-0738 Screw M3-.5 x 16mm pan head phillips zinc $0.99 2 ships same day
23 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
24 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 2 ships same day
25 999-0032 Washer 3/8 USS flat plain finish $2.42 4 ships same day
26 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
