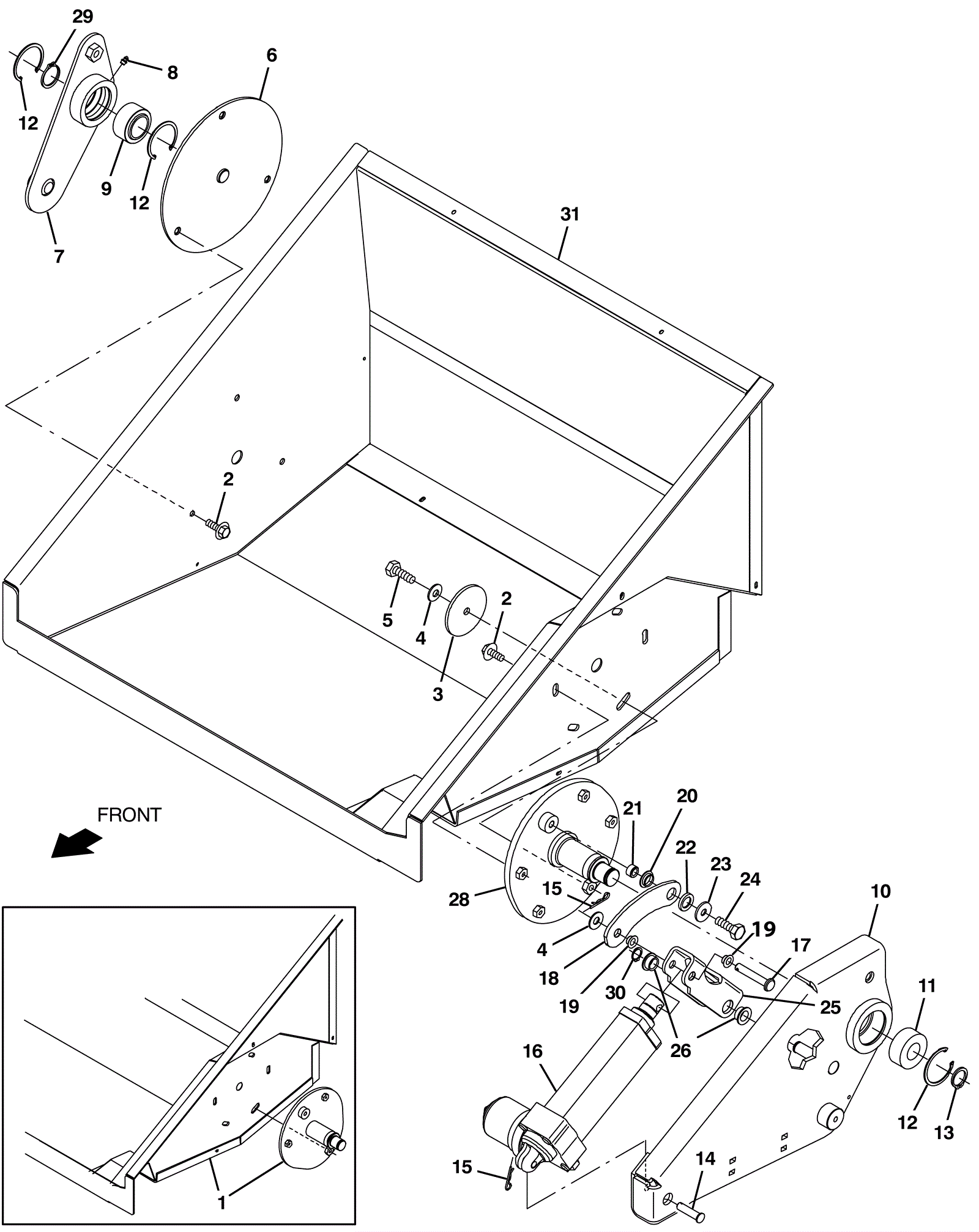

S16 High Dump Hopper Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-8323 Hopper parts kit $1,418.12 1 (before SN 002109) usually ships 10-16 days
2 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 7 ships same day
3 375-8324 Hopper pivot plate $13.00 1 usually ships 10-16 days
4 999-0032 Washer 3/8 USS flat plain finish $2.42 1 ships same day
5 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 1 ships same day
6 375-8325 Pivot weldment $96.02 1 usually ships 10-16 days
7a 375-8326 Right hand roll weldment hopper kit $438.02 1 (includes 7b-9) usually ships 10-16 days
7b 375-8327 Right hand hopper mounting plate weldment $355.52 1 usually ships 10-16 days
8 175-3248 Grease fitting $4.09 1 usually ships 10-16 days
9 275-2505 Self align bearing (Tennant Industrial) $79.68 1 usually ships 1-5 days
10a 375-8328 Left hand roll weldment hopper kit $513.26 1 (includes 10b-11) usually ships 10-16 days
10b 375-8329 Left hand hopper mounting plate weldment $407.66 1 usually ships 10-16 days
11 575-6596 BEARING, BALL, 1.00B 2.05D .811W 2ROW (Tennant Industrial) $71.51 1 usually ships 10-16 days
12 275-8454 RING, RETAINING, INT, 2.00D (Tennant Industrial) $6.17 3 usually ships 1-5 days
13 275-8463 RING, RETAINING, EXT, 1.00D (Tennant Industrial) $5.00 1 usually ships 1-5 days
14 275-8112 Clevis pin $7.70 1 ships same day
15 175-2113 Cotter pin $3.04 20 ships same day
16 375-8330 36V actuator $495.00 1 usually ships 10-16 days
17 375-8331 Clevis pin $27.17 1 usually ships 10-16 days
18a 375-8332 Roll link hopper kit $186.67 1 (includes 18b-20) usually ships 10-16 days
18b 375-8333 Coupler plate $54.84 1 usually ships 10-16 days
19 375-8334 Flange bushing $29.37 2 usually ships 10-16 days
20 375-8335 Flange bushing $12.00 1 usually ships 10-16 days
21 375-8336 Sleeve $36.85 1 usually ships 10-16 days
22 375-8337 WASHER, FLAT, 0.67B 1.00D .13L, NYL $17.16 1 usually ships 10-16 days
23 275-1169 Washer .40 x 12mm flat $5.83 1 ships same day
24 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 1 ships same day
25a 375-8338 Roll link hopper kit $199.21 1 (includes 25b-27) usually ships 10-16 days
25b 375-8339 Follower plate $74.18 1 usually ships 10-16 days
26 175-3460 Flanged bushing $10.78 2 usually ships 10-16 days
28 375-8340 Left hand pivot weldment $328.40 1 (after SN 002108) usually ships 10-16 days
29 275-2038 RETAINER, RING (Tennant Industrial) $11.50 1 usually ships 1-5 days
30 375-8341 Hopper weldment $1,747.02 1 (after SN 002108) usually ships 10-16 days
31 N/A Not available Call for price 1 (hopper) usually ships 3-26 days
