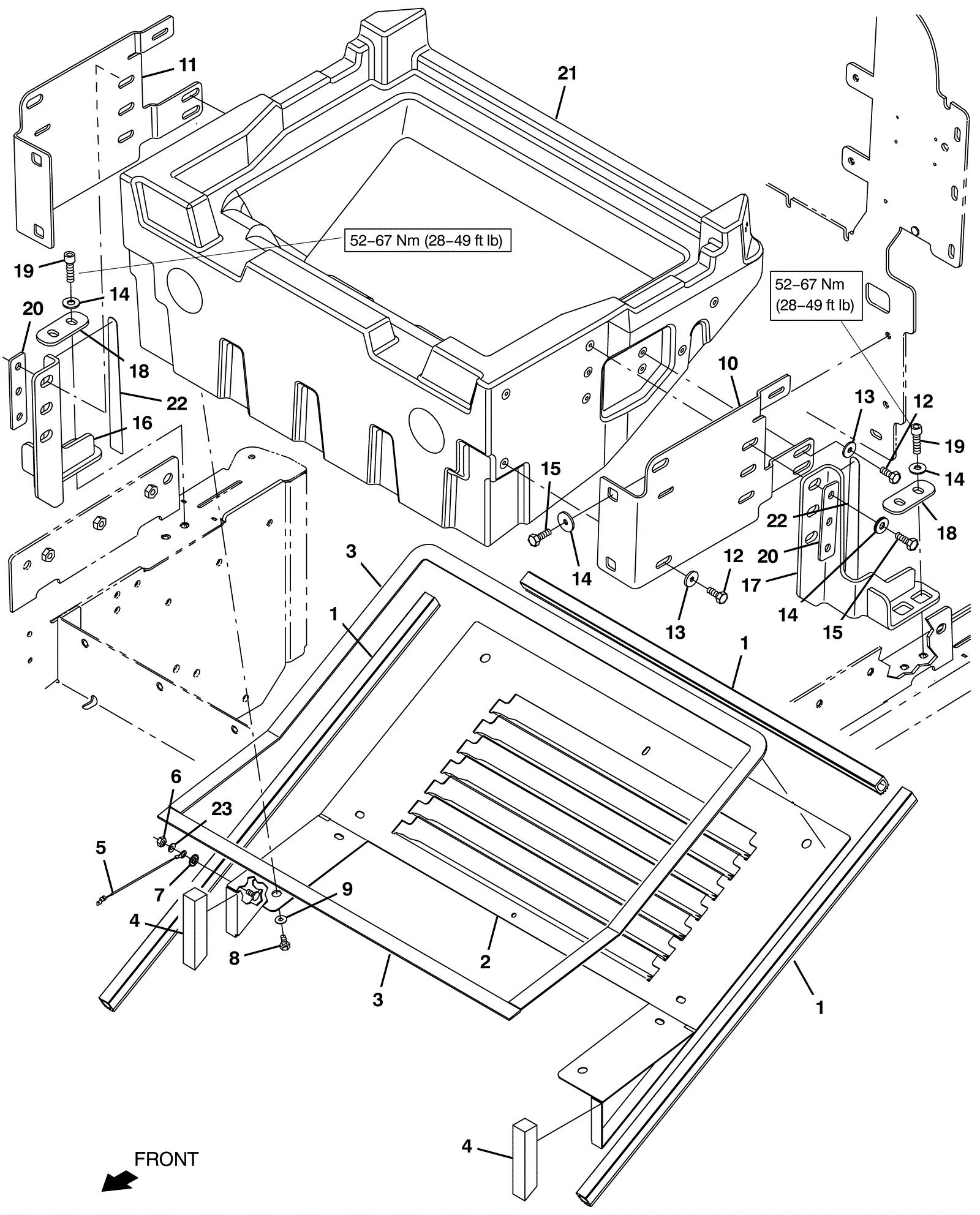

S16 Hopper Filter Box Housing Assembly

#PartDescriptionPriceReqNotesAvailability
1 575-7572 SEAL, AFMKT, BULB, STR, 1.12, 0.88W 08FT (Tennant Industrial $95.35 1 usually ships 5-16 days
2 375-8313 Permafilter plate weldment $214.39 1 usually ships 1-5 days
3 375-8314 Seal $54.45 1 usually ships 1-5 days
4 375-8315 Foam seal $30.36 2 usually ships 1-5 days
5 375-0108 Electrical harness $6.49 1 usually ships 5-16 days
6 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 1 ships same day
7 275-0288 Washer 1/4 internal-external lock $3.96 1 ships same day
8 175-8867 SCREW, HEX, M6 X 1.00 X 12, SS (Tennant Industrial) $5.17 10 usually ships 1-5 days
9 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 10 ships same day
10 375-8316 Left hand housing mounting bracket $101.86 1 usually ships 1-5 days
11 375-8317 Right hand housing mounting bracket $93.39 1 usually ships 1-5 days
12 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 8 ships same day
13 175-7920 Washer M8 flat stainless steel $4.09 8 ships same day
14 999-0032 Washer 3/8 USS flat plain finish $2.42 14 ships same day
15 275-0033 Screw M10-1.5 x 30mm hex head 8.8 $4.88 14 usually ships 1-5 days
16 375-8318 Right hand stop weldment $88.22 1 usually ships 1-5 days
17 375-8319 Left hand stop weldment $87.12 1 usually ships 1-5 days
18 375-8320 Washer plate $13.17 2 usually ships 1-5 days
19 175-9519 Screw M10-1.5 x 35 socket head $4.88 4 usually ships 1-5 days
20 375-8321 Washer plate $47.84 2 usually ships 1-5 days
21 375-8322 Filter housing $225.21 1 usually ships 1-5 days
22 375-8186 Wear pad set $74.25 1 usually ships 1-5 days
23 999-0006 Washer 3/16 flat zinc plated $0.99 1 ships same day
