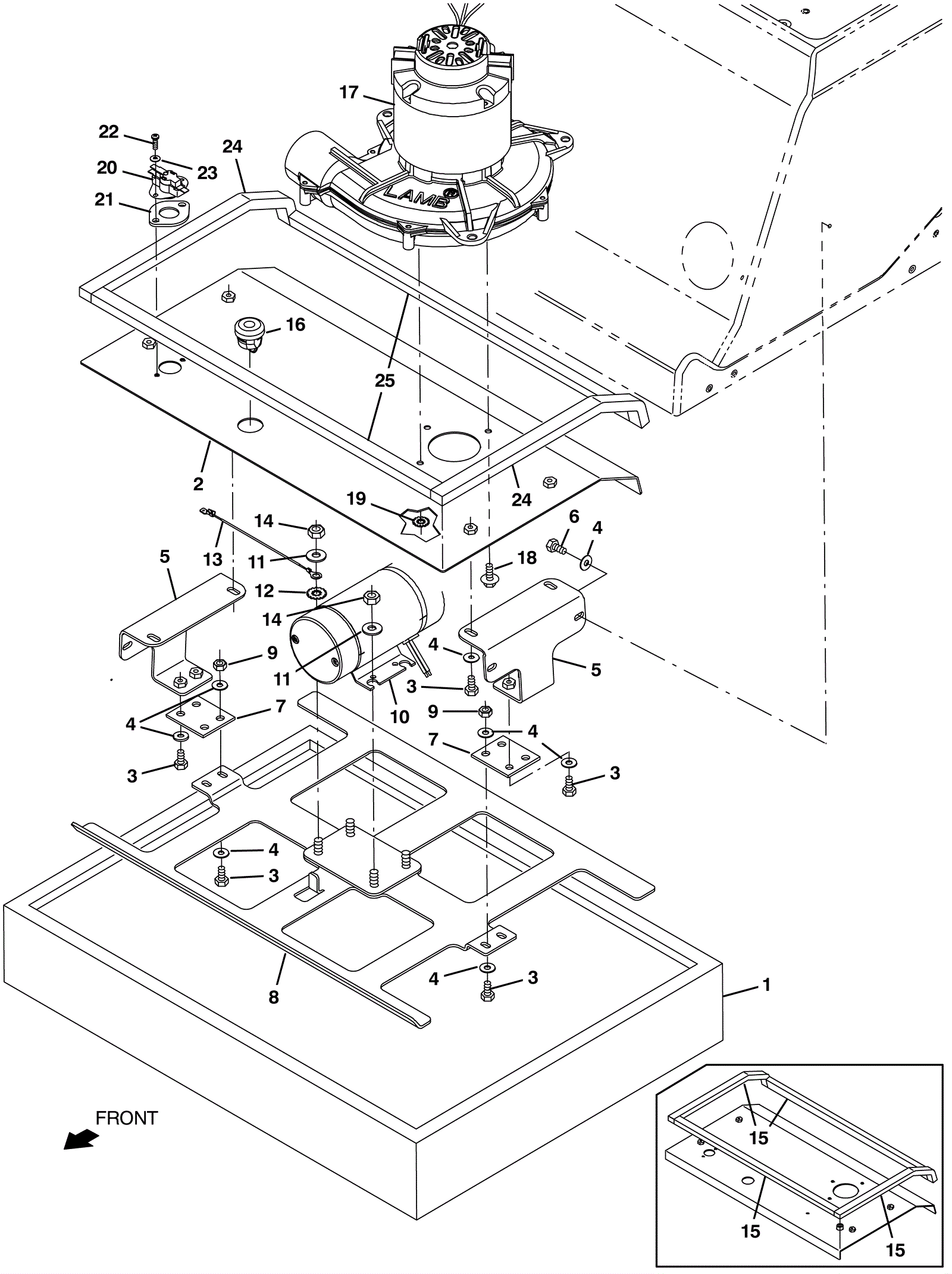

S16 Hopper Vacuum Fan Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-8303 Dust panel filter $379.17 1 usually ships 10-16 days
2a 375-8304 Fan mounting plate weldment Call for price 1 (high dump before SN 002145) (low dump before SN 001076) usually ships 10-16 days
2b 375-8305 Fan mounting plate weldment $133.03 1 (high dump after SN 002144) (low dump after SN 001075) usually ships 10-16 days
3 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 12 ships same day
4 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 16 ships same day
5 375-8306 Shaker mounting bracket weldment $41.68 2 usually ships 10-16 days
6 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 4 ships same day
7 375-8307 Shaker hinge $2.56 2 usually ships 10-16 days
8 375-8308 Filter shaker plate weldment $185.35 1 usually ships 10-16 days
9 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 4 ships same day
10 675-9821 36V motor electric shaker $271.92 1 usually ships 10-16 days
11 999-0024 Washer 5/16 flat stainless steel $1.34 3 usually ships 12-18 days
12 175-2893 Washer 5/16 internal/external locking $4.49 1 usually ships 10-16 days
13 375-0108 Electrical harness $7.04 1 usually ships 10-16 days
14 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 4 ships same day
15 575-8331 SEAL, AFMKT, RBR, OPEN, ADH, 08FT (Tennant Industrial) $120.52 1 (high dump before SN 002145) (low dump before SN 001076) usually ships 10-16 days
16 475-7411 STRAINRELIEF (Tennant Industrial) $2.00 1 usually ships 10-16 days
17a 375-8309 36V 1 stage vacuum motor $580.95 1 (includes 17b) usually ships 10-16 days
17b 375-8310 Fan motor brush kit $53.35 1 usually ships 10-16 days
18 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 4 ships same day
19 275-0288 Washer 1/4 internal-external lock $4.36 1 ships same day
20 175-7132 Thermostat switch $28.38 1 ships same day
21 175-9365 Fire switch gasket $13.31 1 usually ships 10-16 days
22 175-5310 Screw 4 x 45/64 x 16 pan head $4.36 2 usually ships 1-5 days
23 999-0412 Washer #8 SAE flat $0.99 2 ships same day
24 375-8311 Seal $5.50 2 (high dump after SN 002144) (low dump after SN 001075) usually ships 10-16 days
25 375-8312 Seal $28.82 2 (high dump after SN 002144) (low dump after SN 001075) usually ships 10-16 days
