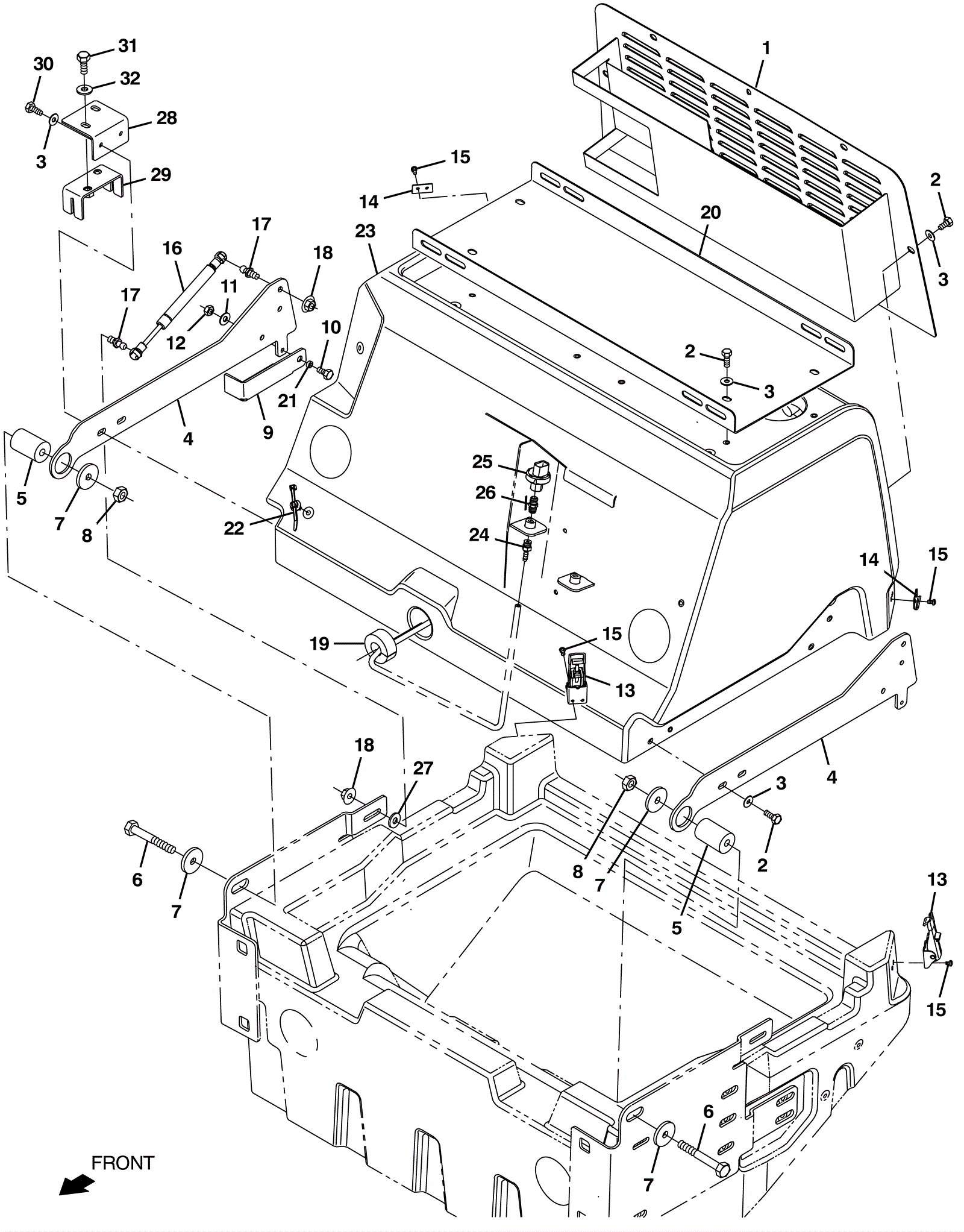

S16 Hopper Filter Box Cover Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-8292 Louvered cover weldment $400.73 1 usually ships 10-16 days
2 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 16 ships same day
3 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 16 ships same day
4 375-8293 Cover pivot bracket $55.51 2 usually ships 10-16 days
5 375-8294 Pivot shaft $71.50 2 usually ships 10-16 days
6 275-8451 SCREW, HEX, M10 X 1.50 X 80, 8.8 (Tennant Industrial) $11.17 2 usually ships 1-5 days
7 275-6982 Washer $5.28 4 usually ships 1-5 days
8 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 2 ships same day
9 375-8295 Prop arm $45.76 1 usually ships 10-16 days
10 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 1 ships same day
11 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
12 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 1 ships same day
13 375-4324 Door latch (Tennant Industrial) $29.84 2 usually ships 10-16 days
14 175-5325 Keeper bracket $5.50 2 usually ships 10-16 days
15 999-1283 Screw M4-.7 x 6mm pan head phillips zinc $0.99 8 usually ships 1-5 days
16 675-9630 GASSPRING, 90LB, 3.15STRK (Tennant Industrial) $80.68 1 usually ships 10-16 days
17 275-5188 Ball stud $7.37 2 usually ships 10-16 days
18 999-0665 Nut M8-1.25 flange lock $0.99 2 ships same day
19 375-8296 Foam seal $33.33 1 usually ships 10-16 days
20 375-8297 Cover plate $129.69 2 usually ships 10-16 days
21 175-0777 P/M sleeve $5.50 1 usually ships 10-16 days
22 275-5197 Fir tree clip $2.38 1 usually ships 10-16 days
23 375-8298 Filterbox cover $270.72 1 usually ships 10-16 days
24 175-3366 Fitting $5.28 1 usually ships 10-16 days
25 375-8299 5 inch press sensor $154.03 1 usually ships 10-16 days
26 375-8300 Filter with filter $17.16 1 usually ships 10-16 days
27 999-0024 Washer 5/16 flat stainless steel $1.34 1 usually ships 12-18 days
28 375-8301 Block plate $73.90 1 usually ships 10-16 days
29 375-8302 Adjustment plate weldment $92.19 1 usually ships 10-16 days
30 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
31 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 2 ships same day
32 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
