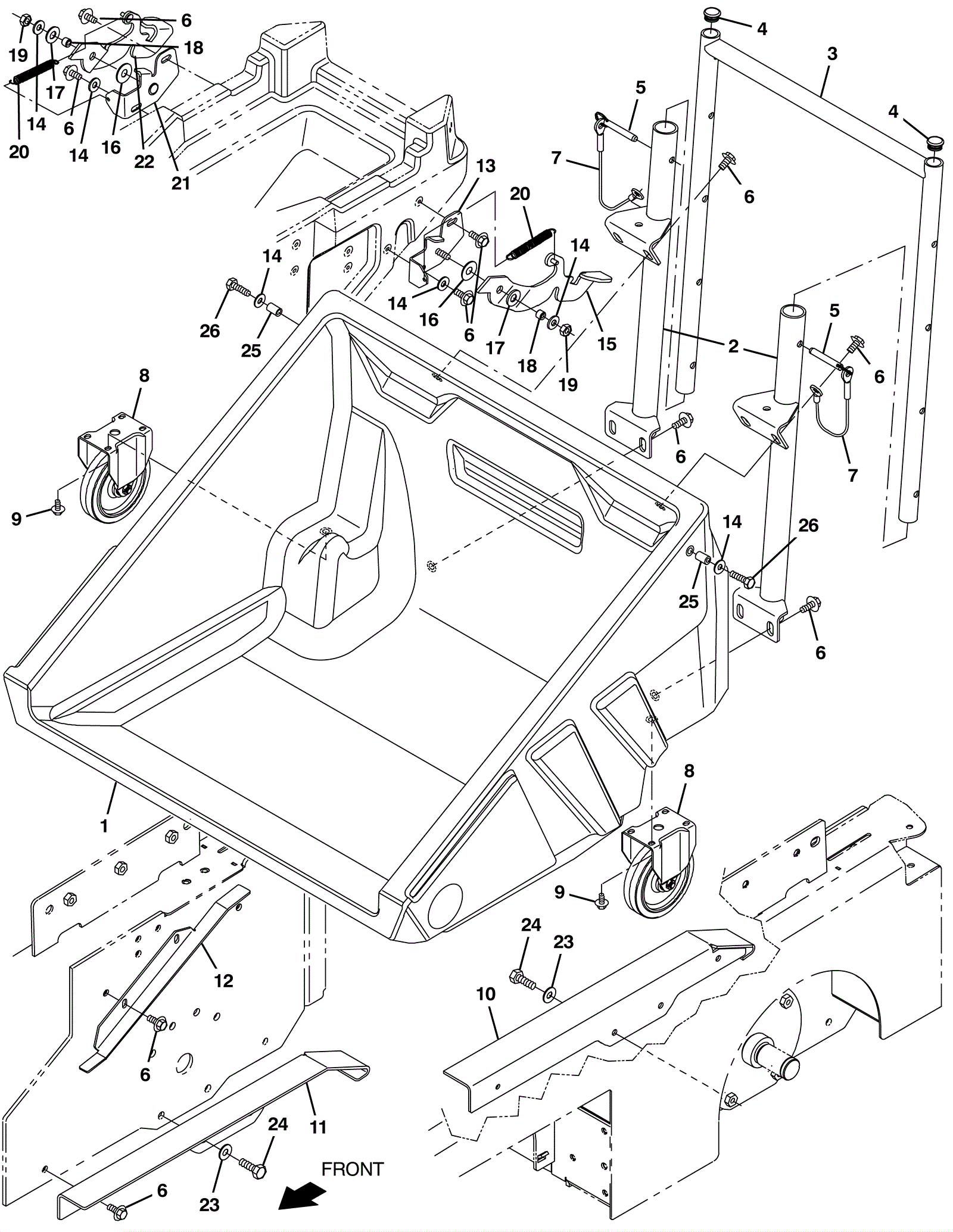

S16 Low Dump Hopper Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-8279 Low dump hopper kit $730.73 1 usually ships 10-16 days
2 375-8280 Base tube weldment $297.33 2 usually ships 10-16 days
3 375-8281 Tube handle weldment $541.75 1 usually ships 10-16 days
4 375-8282 Tube cap $19.14 2 usually ships 10-16 days
5 375-8283 Hitch pin $22.44 2 usually ships 10-16 days
6 999-9082 Screw M8-1.25 x 25mm hex head stainless steel $1.85 13 ships same day
7 175-3405 Cable $13.75 2 usually ships 10-16 days
8 375-8284 5 inch non swivel caster wheel $57.01 2 usually ships 10-16 days
9 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 8 ships same day
10 375-8285 Left hand hopper support bracket $128.69 1 usually ships 10-16 days
11 375-8286 Right hand hopper support bracket $121.52 1 usually ships 10-16 days
12 375-8287 Hopper guide bracket $60.51 1 usually ships 10-16 days
13 375-8288 Left hand latch spring plate weldment $59.29 1 usually ships 10-16 days
14 999-0024 Washer 5/16 flat stainless steel $1.34 4 usually ships 12-18 days
15 375-8289 Left hand swing latch weldment $73.15 1 usually ships 10-16 days
16 275-0055 WASHER, FLAT, 0.52B 1.25D .06, NYL (Tennant Industrial) $5.67 2 usually ships 1-5 days
17 999-0114 Washer 1/2 SAE flat $0.99 2 usually ships 12-18 days
18 275-9554 TUBE, 0.32ID 0.50OD 00.4L, SS (Tennant Industrial) $15.17 2 usually ships 1-5 days
19 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 2 ships same day
20 275-4265 SPRING, EXTN, 0.50OD 0.06WIR 04.0L (Tennant Industrial) $23.50 2 usually ships 1-5 days
21 375-8290 Right hand swing latch weldment Call for price 1 usually ships 10-16 days
22 375-8291 Right hand swing latch weldment $67.54 1 usually ships 10-16 days
23 999-0032 Washer 3/8 USS flat plain finish $2.42 4 ships same day
24 175-3258 Bolt M10-1.5 x 35mm hex head $5.28 4 usually ships 1-5 days
25 275-2023 TUBE, 0.33ID 0.51OD 00.8L, STL, PL (Tennant Industrial) $15.17 2 usually ships 1-5 days
26 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 2 ships same day
