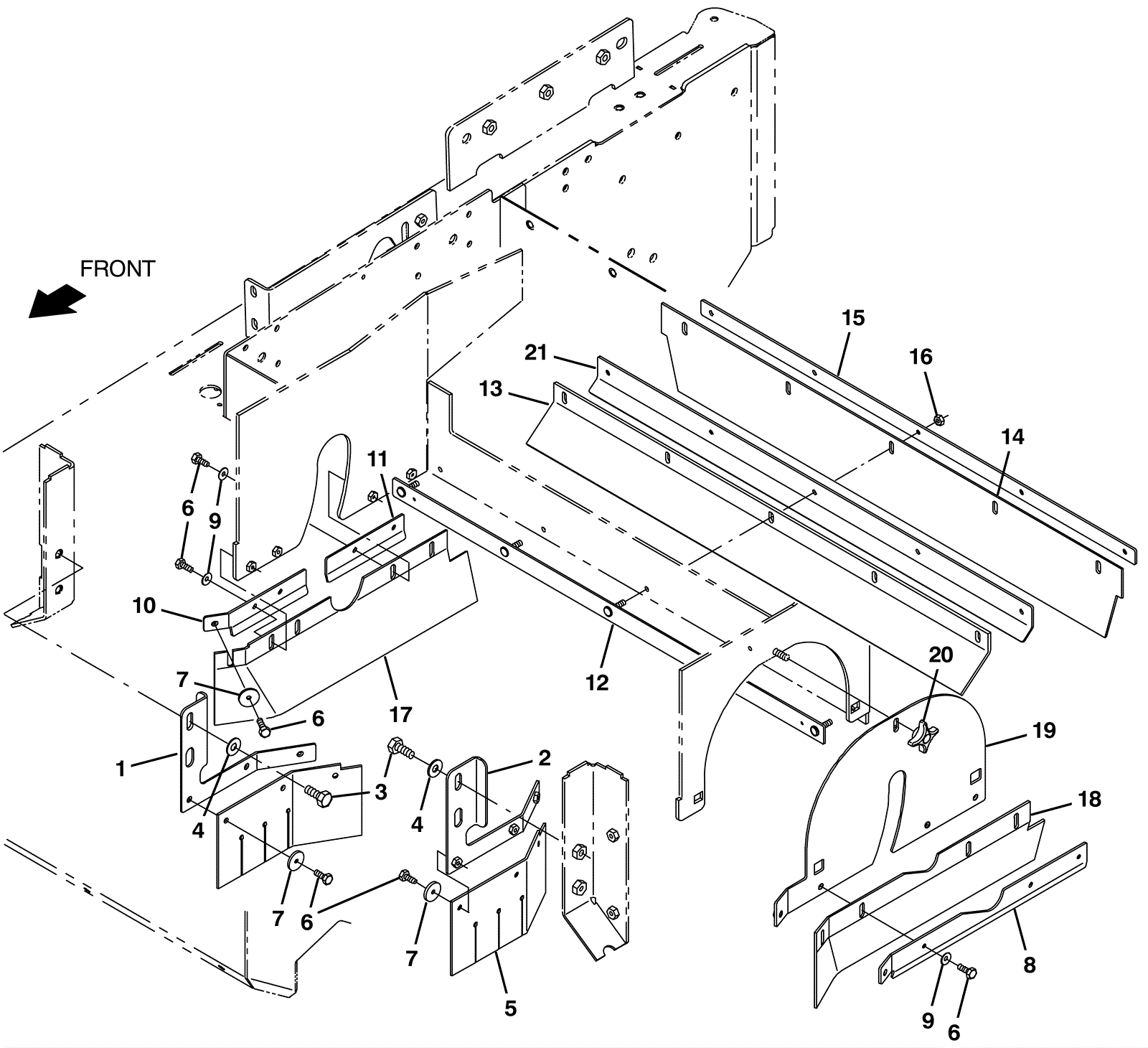

S16 Main Brush Skirts Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-8253 Right hand skirt plate weldment Call for price 1 usually ships 10-16 days
2 375-8254 Left hand skirt plate weldment Call for price 1 usually ships 10-16 days
3 275-0025 Screw M10-1.5 x 25 hex head 8.8 $3.96 2 usually ships 10-16 days
4 999-0032 Washer 3/8 USS flat plain finish $2.42 2 ships same day
5 375-8255 Skirt $25.96 2 usually ships 10-16 days
6 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 15 ships same day
7 275-1464 WASHER, FLAT, 0.25B 1.12D .12, SS (Tennant Industrial) $8.84 7 usually ships 1-5 days
8 375-8256 Left hand skirt retainer $46.86 1 usually ships 10-16 days
9 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
10 375-8257 Right hand skirt retainer weldment $38.34 1 usually ships 10-16 days
11 375-8258 Right hand skirt retainer $42.24 1 usually ships 10-16 days
12 375-8259 Skirt retainer plate weldment $55.33 1 usually ships 10-16 days
13 375-8260 Recirculation skirt $34.01 1 usually ships 10-16 days
14 375-8261 Rear skirt $41.80 1 usually ships 10-16 days
15 375-8262 Skirt retaining plate $46.53 1 usually ships 10-16 days
16 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 5 ships same day
17 375-8263 Right hand skirt $29.59 1 usually ships 10-16 days
18 375-8264 Left hand skirt $32.78 1 usually ships 10-16 days
19 375-8265 Idler door kit $245.30 1 usually ships 10-16 days
20 375-0261 Star knob M8-1.25 $9.57 1 ships same day
21 375-8266 Recirculation skirt bracket $37.01 1 usually ships 10-16 days
