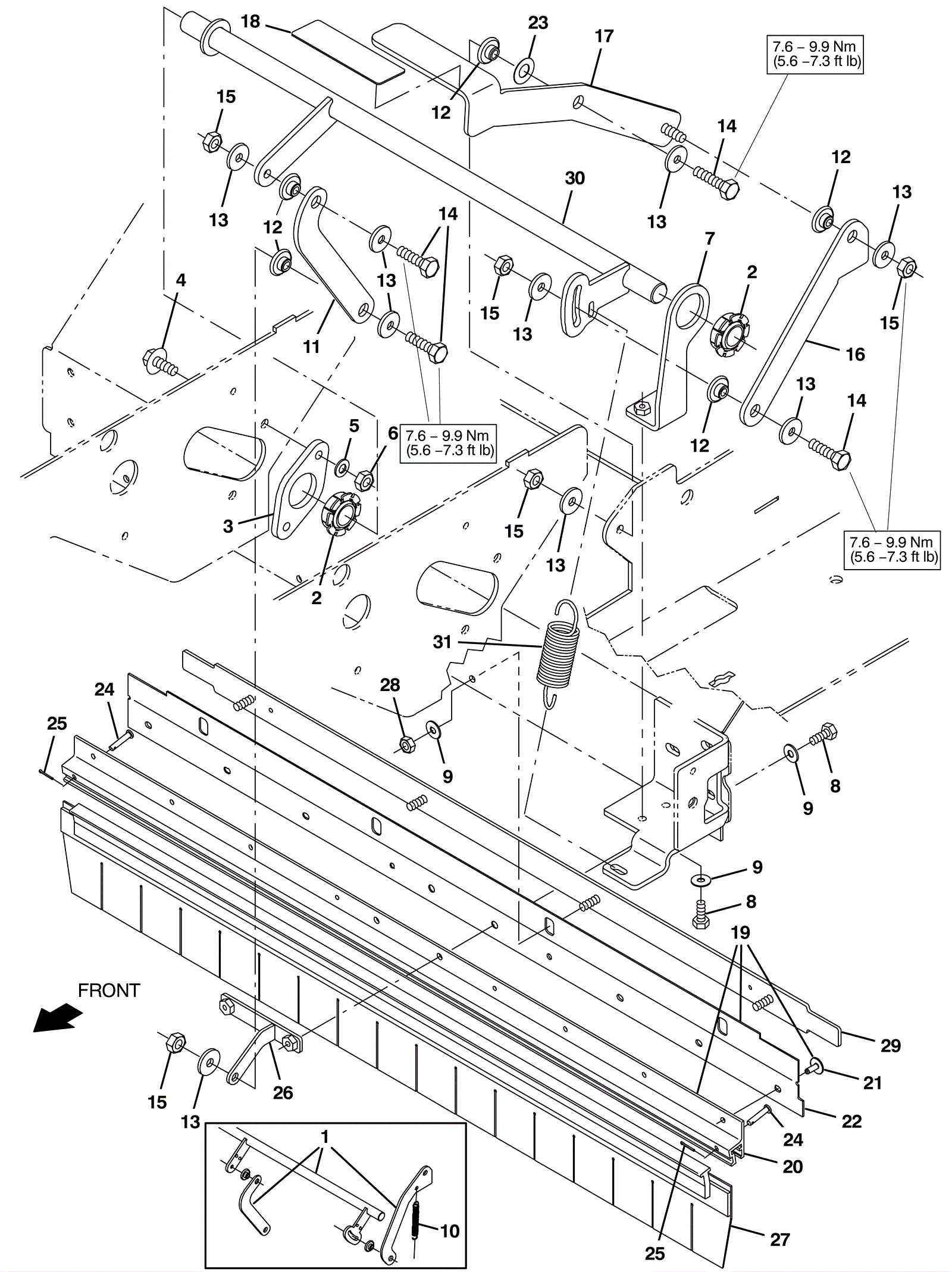

S16 Main Brush Front Flap Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-8230 Front skirt linkage parts kit $276.39 1 (high dump before SN 002131) (low dump before SN001069) usually ships 10-16 days
2 675-9467 Bearing $42.57 2 usually ships 10-16 days
3 675-9466 Adapter plate $35.31 1 ships same day
4 999-9082 Screw M8-1.25 x 25mm hex head stainless steel $1.85 2 ships same day
5 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
6 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
7 375-8239 Mount bearing bracket weldment $54.56 1 usually ships 10-16 days
8 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 4 ships same day
9 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
10 275-4265 SPRING, EXTN, 0.50OD 0.06WIR 04.0L (Tennant Industrial) $21.84 1 (high dump before SN 002131) (low dump before SN001069) usually ships 1-5 days
11 375-8240 Link plate $80.35 1 (high dump after SN 002130) (low dump after SN 001068) usually ships 10-16 days
12 175-2204 Flanged bushing $5.83 5 ships same day
13 175-7920 Washer M8 flat stainless steel $4.09 8 ships same day
14 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 4 ships same day
15 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 5 ships same day
16 375-8241 Link plate $80.85 1 (high dump after SN 002130) (low dump after SN 001068) usually ships 10-16 days
17a 375-8242 Pedal kit $210.32 1 (includes 17b-18) usually ships 10-16 days
17b 375-8243 Skirt pedal weldment $74.14 1 usually ships 10-16 days
18 375-8244 Grip pad $33.66 1 usually ships 10-16 days
19 375-8245 Hinge kit $162.36 1 (includes 20-22) usually ships 10-16 days
20 375-8246 Rail $82.61 1 usually ships 10-16 days
21 175-5936 Pop rivet $4.88 8 usually ships 10-16 days
22 375-8247 Hinge skirt $25.74 1 usually ships 10-16 days
23 175-7812 Washer flat $4.88 1 ships same day
24 175-3271 Clevis pin $6.05 2 usually ships 1-5 days
25 175-7107 Cotter hair pin $3.04 2 usually ships 10-16 days
26 375-8248 Arm bracket weldment $66.44 1 usually ships 10-16 days
27a 375-8249 Front skirt kit $90.42 1 usually ships 10-16 days
27b 375-8250 Debris skirt kit $82.83 1 usually ships 10-16 days
28 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 4 ships same day
29 375-8251 Bracket retainer weldment $58.41 1 usually ships 10-16 days
30 375-8252 Crank shaft weldment $259.89 1 (high dump after SN 002130) (low dump after SN 001068) usually ships 10-16 days
31 N/A Not available Call for price 1 (spring) usually ships 3-26 days
