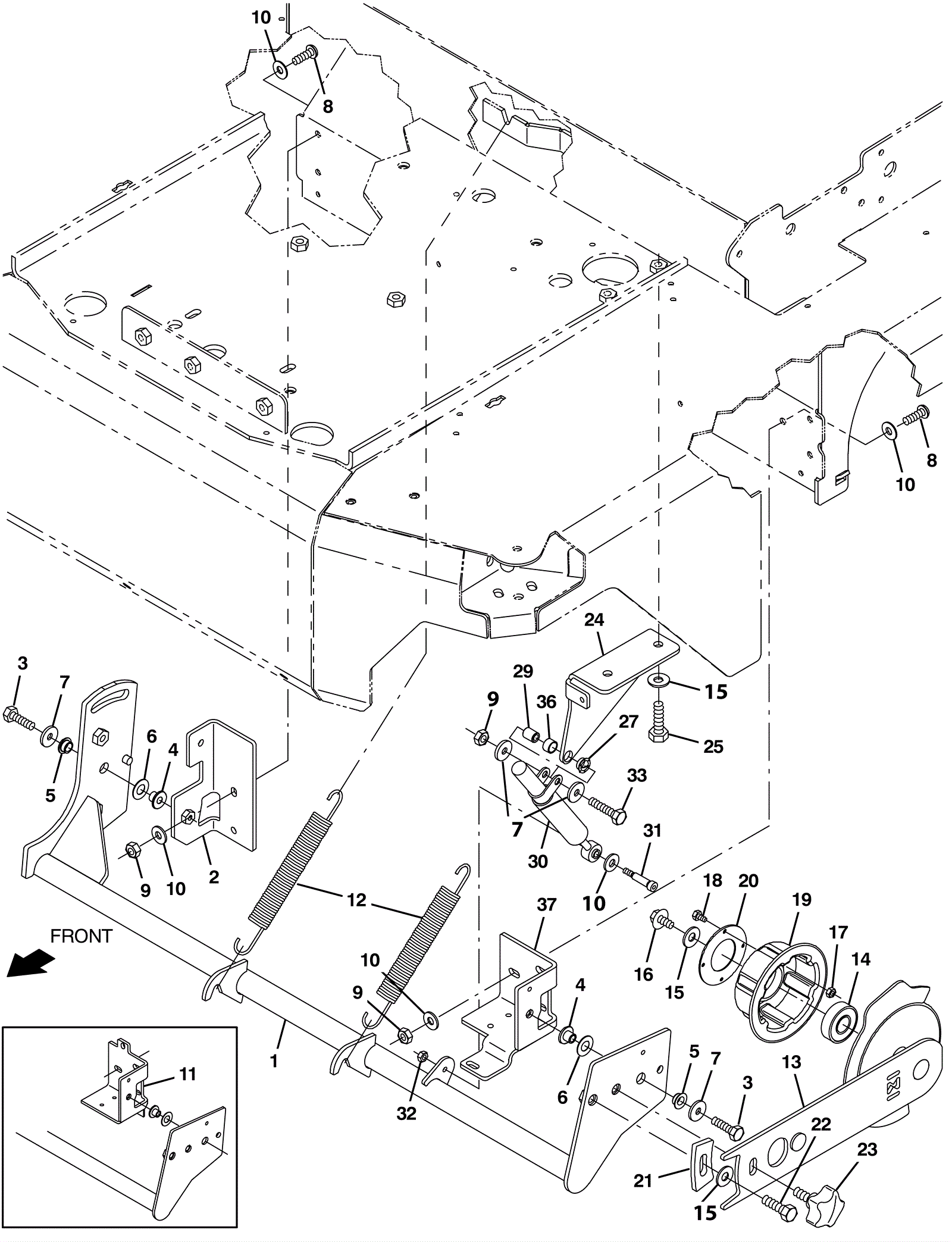

S16 Main Brush Drive Idler and Lift Arm Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-8228 Lift arm weldment $334.40 1 usually ships 10-13 days
2 375-8229 Pivot mounting bracket weldment $67.10 1 usually ships 10-13 days
3 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 2 ships same day
4 375-4180 Flange bushing, 8.3B 11.8D 9.7L $5.61 2 usually ships 10-13 days
5 375-4181 Plastic flange bushing, 12.0B 7.0L 14.0D $5.50 2 usually ships 10-13 days
6 175-7812 Washer flat $5.28 2 ships same day
7 175-7920 Washer M8 flat stainless steel $4.49 4 ships same day
8 275-0443 Screw M8-1.25 x 25 button head stainless steel $5.28 5 usually ships 1-5 days
9 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 6 ships same day
10 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 11 ships same day
11 375-8230 Front skirt linkage parts kit $295.89 1 (high dump before SN 002131) (low dump before SN 001069) usually ships 10-13 days
12 375-8231 Extension spring $33.11 2 usually ships 10-13 days
13a 375-8232 Idler kit $392.26 1 (includes 13b-20) usually ships 10-13 days
13b 375-8233 Idler arm weldment $163.68 1 usually ships 10-13 days
14 175-9072 Ball bearing $8.58 1 ships same day
15 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
16 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.49 1 ships same day
17 175-2894 Nut M5-.8 hex nylon locking $3.30 4 usually ships 10-13 days
18 999-1220 Screw M5-.8 x 12mm hex head stainless steel $0.99 4 ships same day
19 275-0467 Special drive brush plug $75.46 1 ships same day
20 275-0469 Bearing retainer $16.06 1 ships same day
21 375-8234 Adjust plate $13.50 1 usually ships 10-13 days
22 999-0774 Bolt M10-1.5 x 30mm hex head stainless steel full thread $0.99 1 ships same day
23 575-2397 KNOB, STAR, 2.00D 5EAR, M10 X 1.0L STUD (Tennant Industrial) $28.51 1 usually ships 10-13 days
24 375-8235 Upper damper bracket $98.35 1 usually ships 10-13 days
25 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 2 ships same day
27 475-9801 BUSHING, FLNG, 0.50B 0.56D 0.22L, NYL (Tennant Industrial) $9.50 1 usually ships 10-13 days
29 175-9263 Sleeve $5.50 1 usually ships 10-13 days
30 275-3117 SHOCK ABSORBER, 2.3 STRK (Tennant Industrial) $189.87 1 usually ships 10-13 days
31 175-9855 Bolt M6-.8 x 30mm shield $8.25 1 usually ships 10-13 days
32 999-1308 Nut M6-1 hex stainless steel $0.99 1 ships same day
33 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel $2.48 1 ships same day
36 175-3355 Sleeved bushing $7.37 1 usually ships 10-13 days
37 375-8236 Left hand pivot mounting bracket weldment $159.87 1 (high dump after SN 002130) (low dump after SN 001068) usually ships 10-13 days
