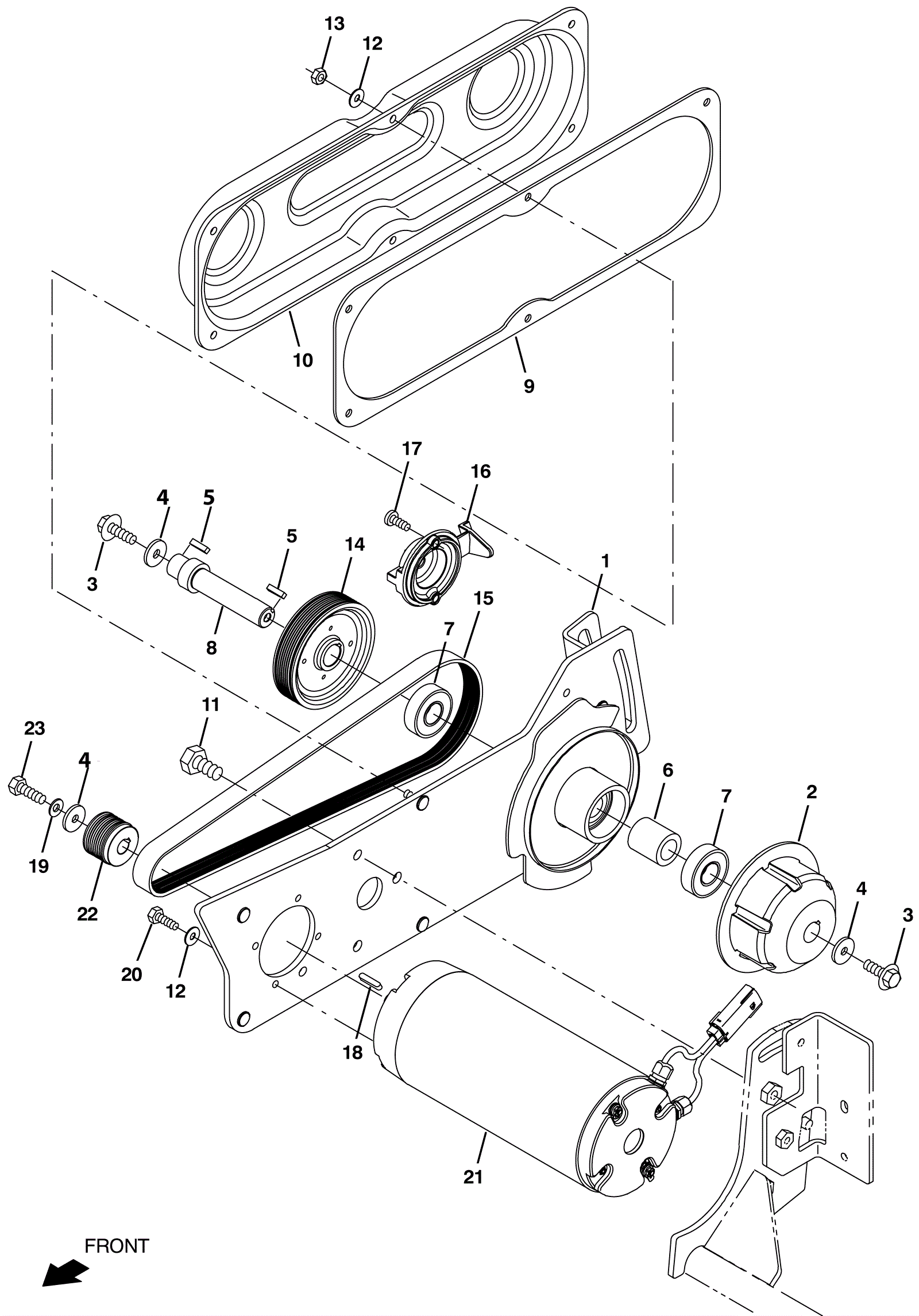

S16 Main Brush Drive Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1a 375-8218 Drive kit $801.02 1 (includes 1b-8) usually ships 10-16 days
1b 375-8219 Drive arm weldment $363.44 1 usually ships 10-16 days
2 575-7484 PLUG, DRIVE, BRUSH (Tennant Industrial) $97.35 1 usually ships 10-16 days
3 999-1653 Screw M8-1.25 x 30mm hex head stainless steel $4.36 2 ships same day
4 175-7920 Washer M8 flat stainless steel $4.09 3 ships same day
5 175-8818 Square keyway $4.09 2 ships same day
6 375-8220 Bearing spacer $39.51 1 usually ships 10-16 days
7 175-9072 Ball bearing $8.58 2 ships same day
8 375-8221 Brush drive shaft $209.21 1 usually ships 10-16 days
9 375-8222 Belt cover gasket $9.67 1 usually ships 10-16 days
10 375-8223 Belt cover $162.14 1 usually ships 10-16 days
11 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 2 ships same day
12 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 10 ships same day
13 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 6 ships same day
14 575-6831 SHEAVE, 09GRV, 4.13PD 0.75B [PJ] (Tennant Industrial) $75.02 1 usually ships 10-16 days
15a 375-8224 Belt kit $144.76 1 (includes 15b-17) usually ships 10-16 days
15b 375-8225 Drive belt $73.85 1 usually ships 10-16 days
16 675-9684 TOOL, INSTALLATION, BELT $119.46 1 usually ships 10-16 days
17 999-1168 Screw M6-1 x 20mm pan head phillips stainless steel $1.01 2 ships same day
18 275-1468 Square keyway $4.88 1 usually ships 10-16 days
19 275-0092 Washer 1/4 flat belleville $3.96 1 usually ships 10-16 days
20 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 4 ships same day
21 375-8226 36V brush drive motor $949.96 1 usually ships 10-16 days
22 375-8227 Sheave $73.92 1 usually ships 10-16 days
23 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 1 ships same day
