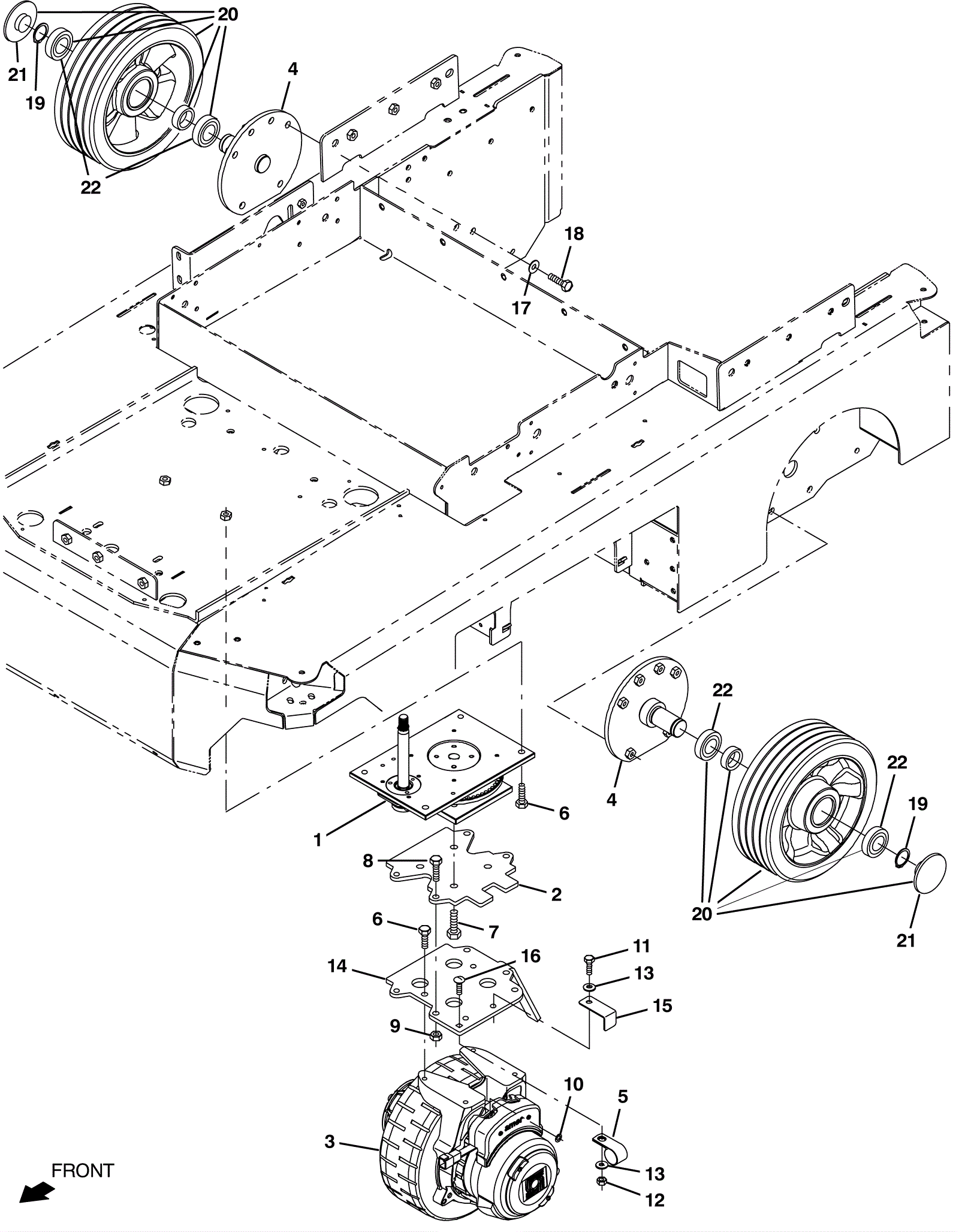

S16 Drive Wheel and Rear Wheels Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-7557 Drive wheel control assembly $692.56 1 usually ships 5-16 days
2 375-8213 Top plate spacer $68.31 1 usually ships 1-5 days
3 375-8214 Drive wheel assembly with brake Call for price 1 usually ships 1-5 days
4 375-8215 Wheel axle plate weldment $241.32 2 usually ships 1-5 days
5 175-9979 Clamp (Tennant Industrial) $7.35 1 usually ships 1-5 days
6 275-0025 Screw M10-1.5 x 25 hex head 8.8 $3.19 8 usually ships 5-16 days
7 175-0615 Bolt M12-1.75 x 25mm hex head $3.96 4 usually ships 5-16 days
8 275-0033 Screw M10-1.5 x 30mm hex head 8.8 $3.96 4 usually ships 1-5 days
9 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 4 ships same day
10 999-0406 Washer 5/16 internal star lock zinc plated $0.99 2 ships same day
11 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 1 ships same day
12 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
13 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
14 375-8216 Bottom spacer plate weldment $97.46 1 usually ships 1-5 days
15 375-8217 Harness plate $37.62 1 usually ships 1-5 days
16 475-7570 BOLT, CARRIAGE, M8 X 1.25 X 30 (Tennant Industrial) $2.17 1 usually ships 5-16 days
17 999-0032 Washer 3/8 USS flat plain finish $2.42 8 ships same day
18a 275-0033 Screw M10-1.5 x 30mm hex head 8.8 $3.96 8 (high dump only) usually ships 1-5 days
18b 175-3258 Bolt M10-1.5 x 35mm hex head $3.96 8 (low dump only) usually ships 1-5 days
19 275-7559 Retaining ring (Tennant Industrial) $2.17 2 usually ships 5-16 days
20 275-7558 Tire assembly (urethane) (Tennant Industrial) $394.00 2 (includes 21-22) usually ships 5-16 days
21 275-2739 Hub cap $9.35 1 usually ships 5-16 days
22 375-4062 Ball bearing (Tennant Industrial) $56.45 2 usually ships 5-16 days
