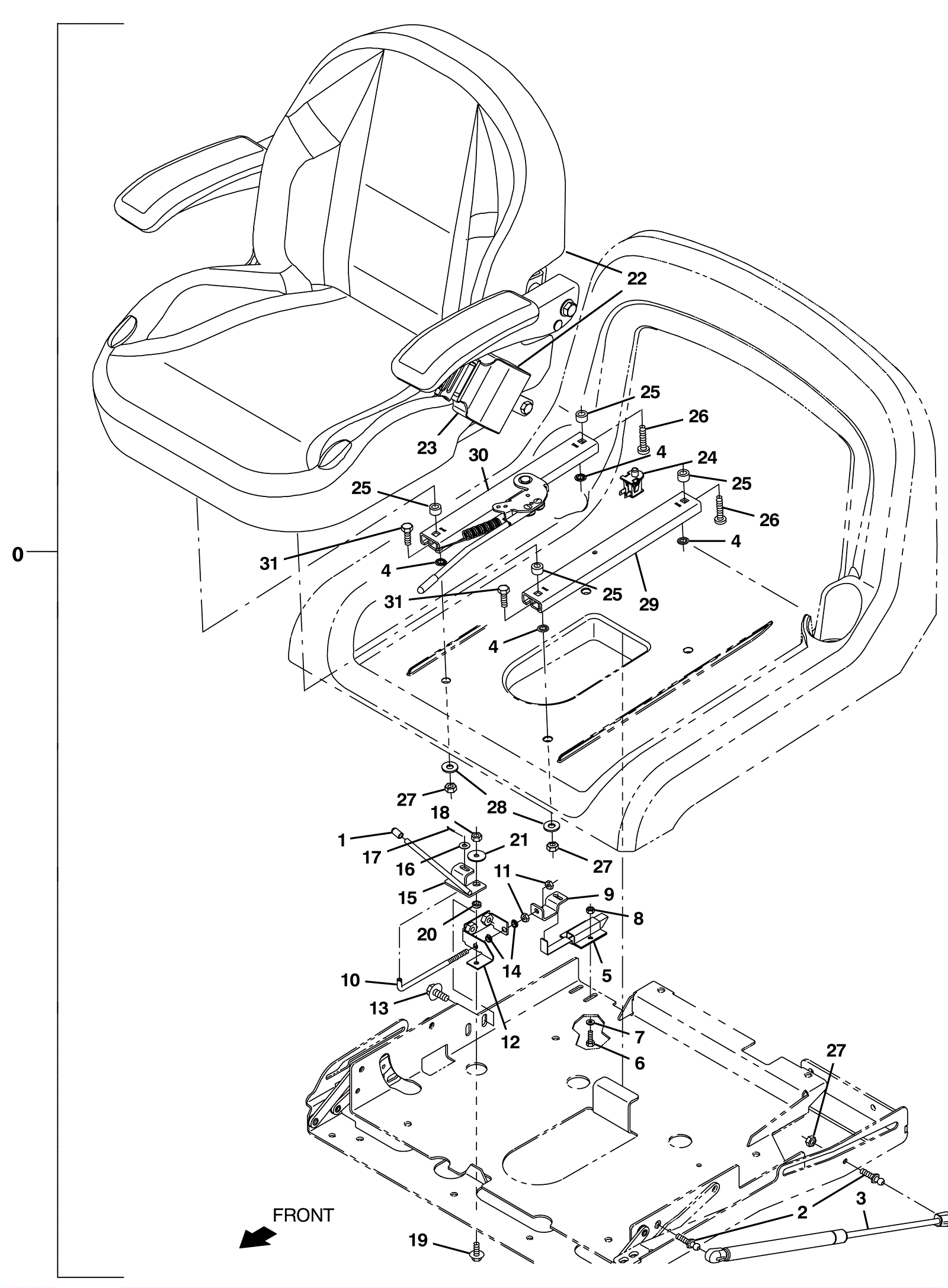

S16 Deluxe Seat Kit Assembly

#PartDescriptionPriceReqNotesAvailability
0 375-8211 Deluxe seat kit $1,871.76 1 (includes 1-31) usually ships 1-5 days
1 275-7578 Handle grip (yellow) $1.43 1 usually ships 1-5 days
2 275-7585 Ball stud (Tennant Industrial) $16.87 2 usually ships 1-5 days
3 275-2178 GASSPRING, 30LB, 8.0STRK $80.08 1 usually ships 1-5 days
4 675-9512 Bolt retention push nut $15.66 4 ships same day
5 275-7586 Latch (Tennant Industrial) $25.55 1 usually ships 1-5 days
6 175-6939 Screw M5 x 16mm stainless steel $2.97 2 ships same day
7 999-0412 Washer #8 SAE flat $0.99 2 ships same day
8 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
9 275-7587 Angle latch $18.26 1 usually ships 1-5 days
10 275-7588 Handle latch $7.26 1 usually ships 1-5 days
11 999-0181 Nut 1/4-20 hex jam plain finish $0.99 2 ships same day
12 275-7589 Bracket weldment $17.71 1 usually ships 5-16 days
13 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.30 2 ships same day
14 175-9361 Snap in bearing $5.61 2 usually ships 5-16 days
15 375-8212 Seat latch handle weldment $78.21 1 usually ships 1-5 days
16 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
17 175-7107 Cotter hair pin $2.42 1 usually ships 5-16 days
18 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 1 ships same day
19 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 1 ships same day
20 275-7591 Sleeve $10.12 1 usually ships 1-5 days
21 275-0093 WASHER, FLAT, 0.28B 1.00D .06, STL (Tennant Industrial) $4.51 1 usually ships 5-16 days
22 275-7592 Deluxe seat with armrests and seatbelt $586.19 1 (includes 23-24) usually ships 1-5 days
23 375-6965 Retractable seatbelt (orange) $605.47 1 usually ships 5-16 days
24 275-9280 Seat switch $10.12 1 ships same day
25 275-9333 Spacer $3.85 4 usually ships 1-5 days
26 275-9278 SCREW, PAN, PHL, .31-18 X 1.00, G2 (Tennant Industrial) $4.84 4 usually ships 5-16 days
27 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 6 ships same day
28 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
29 675-9511 Seat track no stud $31.24 1 ships same day
30 275-2671 11 1/2 inch seat adjuster rail (Tennant Industrial) $46.70 1 usually ships 5-16 days
31 275-3879 SCREW, HEX, .31-18 X 1.00, G5 (Tennant Industrial) $3.67 4 usually ships 1-5 days
