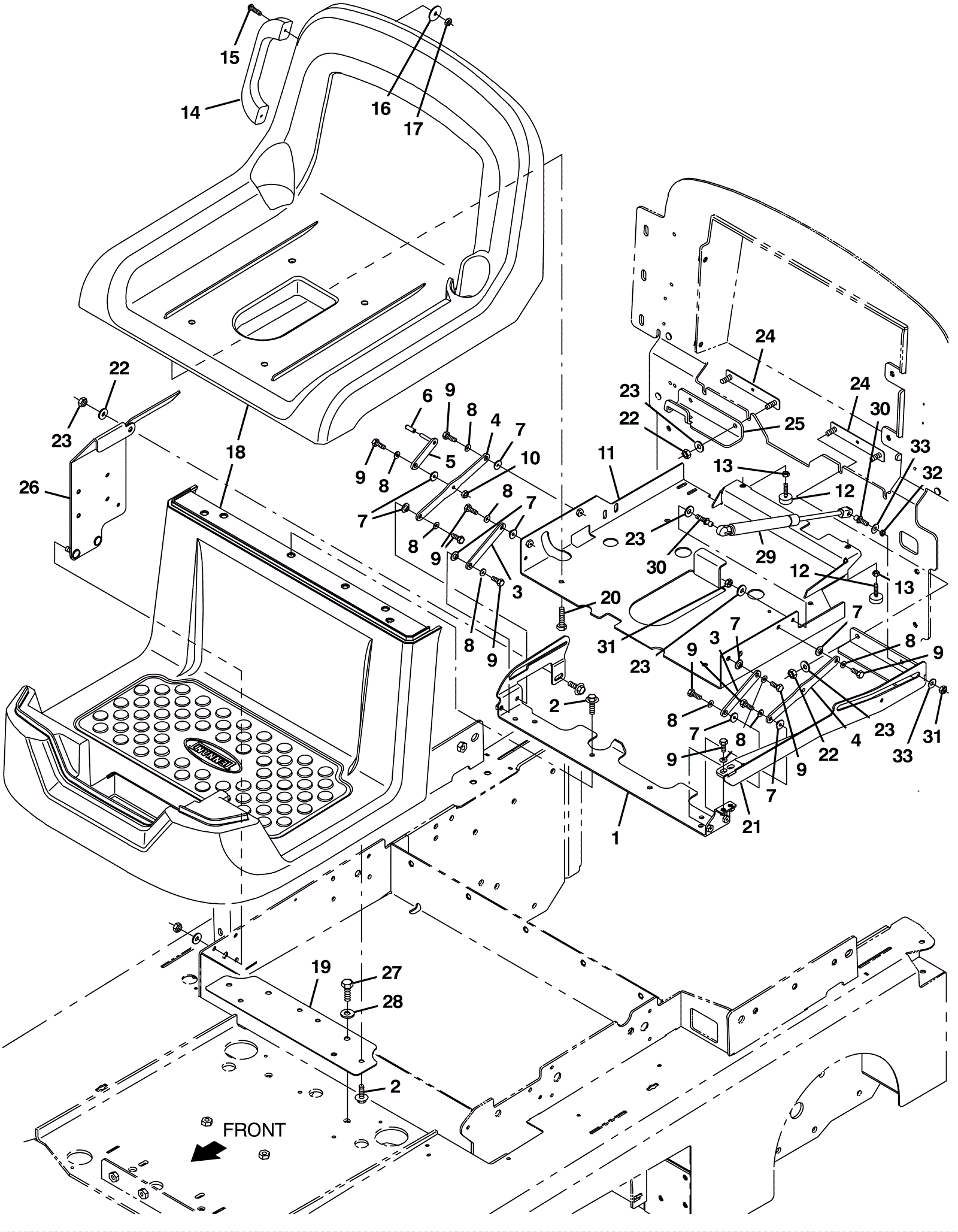

S16 Seat Support Assembly

#PartDescriptionPriceReqNotesAvailability
1 475-3787 PLATE WLDT, MTG, W/LABEL, AFTMKT, NA $190.52 1 usually ships 10-16 days
2 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 10 ships same day
3 275-7575 Operation station link $7.37 2 usually ships 1-5 days
4 275-7576 Operation station link $7.92 2 usually ships 1-5 days
5 275-7577 Operation station link weldment $20.79 1 usually ships 1-5 days
6 275-7578 Handle grip (yellow) $1.85 1 usually ships 1-5 days
7 275-7579 Flange sleeve $1.58 9 usually ships 1-5 days
8 999-0006 Washer 3/16 flat zinc plated $0.99 10 ships same day
9 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 9 ships same day
10 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 1 ships same day
11 275-7580 Seat channel weldment $75.57 1 usually ships 1-5 days
12 275-8308 BUMPER, RBR, 1.0D 0.38TH .25-20 (Tennant Industrial) $20.00 2 usually ships 10-16 days
13 999-0181 Nut 1/4-20 hex jam plain finish $0.99 2 ships same day
14 175-7083 HANDLE, CONTAINER (Tennant Industrial) $17.34 1 usually ships 10-16 days
15 175-3219 SCREW, PAN, PHL, M6 X 1.00 X 25, 4.8 (Tennant Industrial) $5.00 2 usually ships 1-5 days
16 999-1288 Washer 1/4 x 1 OD fender stainless steel $0.99 2 ships same day
17 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
18 275-7581 Operation platform set $1,184.81 1 usually ships 1-5 days
19 375-8204 Support bracket $21.67 1 usually ships 10-16 days
20 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel $2.48 4 ships same day
21 375-8205 Seat spring mounting bracket weldment $123.64 1 usually ships 10-16 days
22 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 7 ships same day
23 999-0024 Washer 5/16 flat stainless steel $1.34 11 ships same day
24 375-8206 Seat support mounting plate weldment $43.78 2 usually ships 10-16 days
25 375-8207 Seat support bracket $49.06 1 usually ships 10-16 days
26 375-8208 Pump support bracket $85.25 1 usually ships 10-16 days
27 275-0025 Screw M10-1.5 x 25 hex head 8.8 $3.96 2 usually ships 10-16 days
28 999-0032 Washer 3/8 USS flat plain finish $2.42 2 ships same day
29 375-8209 Linear dampener $58.96 1 usually ships 10-16 days
30 275-7585 Ball stud (Tennant Industrial) $17.34 2 usually ships 1-5 days
31 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
32 275-7679 Sleeve (Tennant Industrial) $4.60 1 usually ships 10-16 days
33 999-1530 Washer 3/8 flat nylon $0.99 2 ships same day
