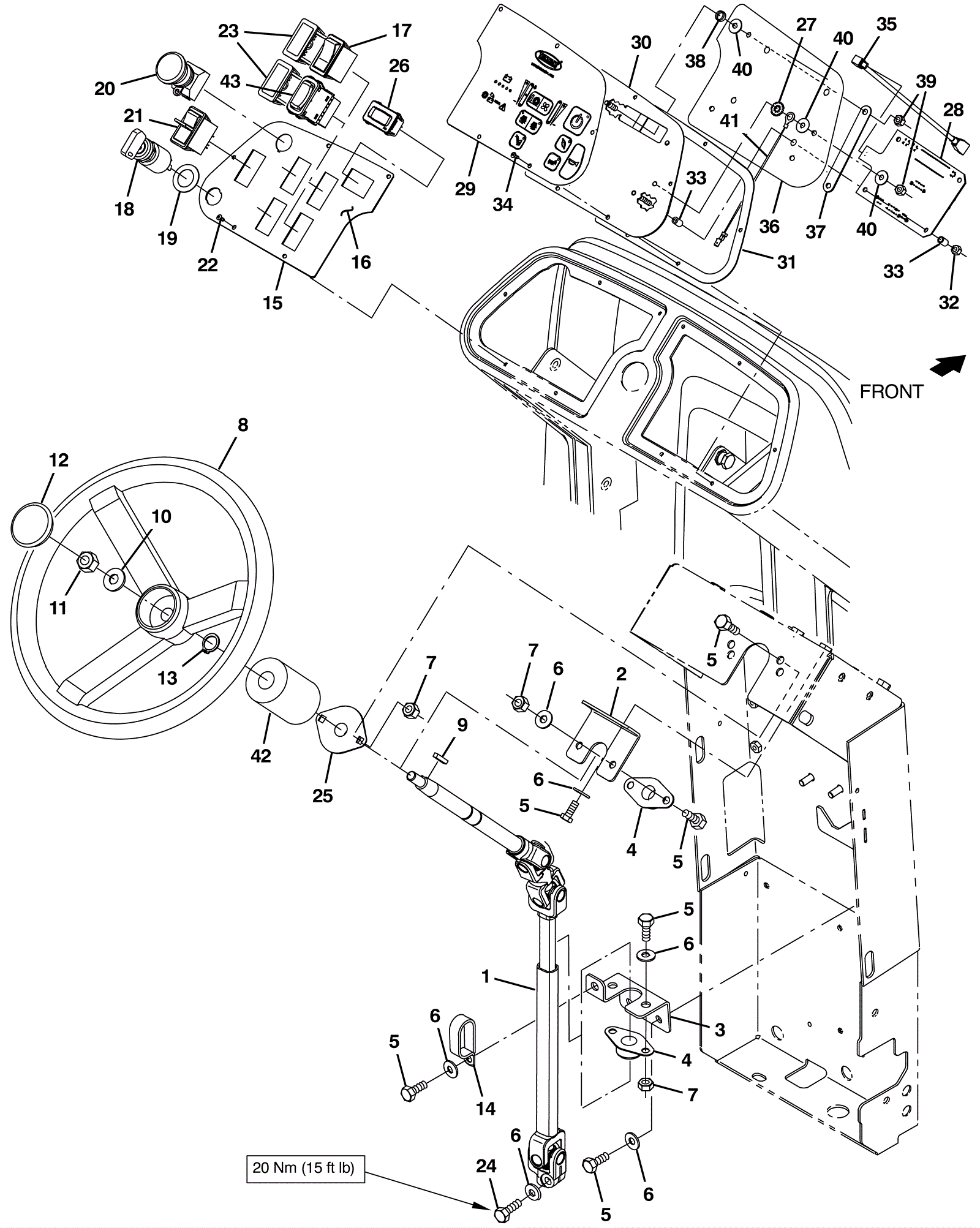

S16 Steering and Instrument Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-7593 Basic steering shaft assembly $356.29 1 usually ships 1-5 days
2 275-7594 Bracket $8.25 1 usually ships 1-5 days
3 275-7595 Support bracket weldment $10.34 1 usually ships 1-5 days
4 175-3201 Flanged bearing $6.05 2 usually ships 10-16 days
5 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 5 ships same day
6 999-0024 Washer 5/16 flat stainless steel $1.34 8 ships same day
7 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 6 ships same day
8 275-4653 Steering wheel $152.68 1 usually ships 10-16 days
9 175-3200 Square keyway $4.09 1 ships same day
10 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 1 ships same day
11 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
12 275-5333 Steering wheel cap $4.88 1 usually ships 10-16 days
13 275-2003 Retaining ring (Tennant Industrial) $6.00 1 usually ships 10-16 days
14 175-3171 Cable clamp $5.50 1 usually ships 1-5 days
15 375-8193 Left hand console panel weldment $44.18 1 usually ships 10-16 days
16 375-8194 Left hand operational console decal $59.07 1 usually ships 10-16 days
17 275-8550 SWITCH, ROCKER, PRGRSV (Tennant Industrial) $41.34 1 usually ships 1-5 days
18a 175-3214 Key switch $87.12 1 (includes 18b) usually ships 10-16 days
18b 175-3215 Key (sold individually) $14.30 1 ships same day
19 175-3217 Washer .91b x 1.38d x .06 steel plated $4.88 1 usually ships 10-16 days
20 275-1416 Safety shut-off switch $40.81 1 ships same day
21 275-7599 Rocker switch (Tennant Industrial) $44.34 1 usually ships 10-16 days
22 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated $0.99 5 ships same day
23 175-2556 Switch plug $6.82 4 usually ships 10-16 days
24 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 1 ships same day
25 275-7601 Flanged bearing (Tennant Industrial) $57.34 1 usually ships 1-5 days
26 275-9900 Hour meter $53.79 1 ships same day
27a 375-8195 Circuitboard kit $1,005.62 1 (includes 27b-41) (requires Tennant True service or an authorized Tennant service provider) usually ships 10-16 days
27b 275-0288 Washer 1/4 internal-external lock $3.96 1 (requires Tennant True service or an authorized Tennant service provider) ships same day
28 375-8201 Circuitboard assembly Call for price 1 (requires Tennant True service or an authorized Tennant service provider) usually ships 10-16 days
29a 375-8196 Membrane kit $733.59 1 (includes 29b-31) (requires Tennant True service or an authorized Tennant service provider) usually ships 10-16 days
29b 375-8202 Overlay panel Call for price 1 (requires Tennant True service or an authorized Tennant service provider) usually ships 10-16 days
30 375-8203 Right hand spacer console plate Call for price 1 (requires Tennant True service or an authorized Tennant service provider) usually ships 10-16 days
31 375-8197 Right hand dash gasket $33.55 1 (requires Tennant True service or an authorized Tennant service provider) usually ships 10-16 days
32 999-0740 Nut M5-.8 hex stainless steel $0.99 8 (requires Tennant True service or an authorized Tennant service provider) ships same day
33 675-9527 Spacer $31.46 8 (requires Tennant True service or an authorized Tennant service provider) usually ships 10-16 days
34 175-2146 Screw 6-20 x 1/2 pan head $3.04 5 (requires Tennant True service or an authorized Tennant service provider) usually ships 10-16 days
35 375-4076 USB cable $26.07 1 (requires Tennant True service or an authorized Tennant service provider) usually ships 10-16 days
36 375-8198 Right hand console cover $48.34 1 (requires Tennant True service or an authorized Tennant service provider) usually ships 10-16 days
37 375-8199 Right hand console retainer bracket $45.84 1 (requires Tennant True service or an authorized Tennant service provider) usually ships 10-16 days
38 275-6930 Spacer (TENNANT INDUSTRIAL) $2.60 3 (requires Tennant True service or an authorized Tennant service provider) usually ships 1-5 days
39 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 4 (requires Tennant True service or an authorized Tennant service provider) ships same day
40 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 6 (requires Tennant True service or an authorized Tennant service provider) ships same day
41 375-0108 Electrical harness $6.49 1 (requires Tennant True service or an authorized Tennant service provider) usually ships 10-16 days
42 375-8200 Steering shaft gasket $48.18 1 usually ships 10-16 days
43 375-4071 On/off rocker switch $110.33 1 usually ships 10-16 days
