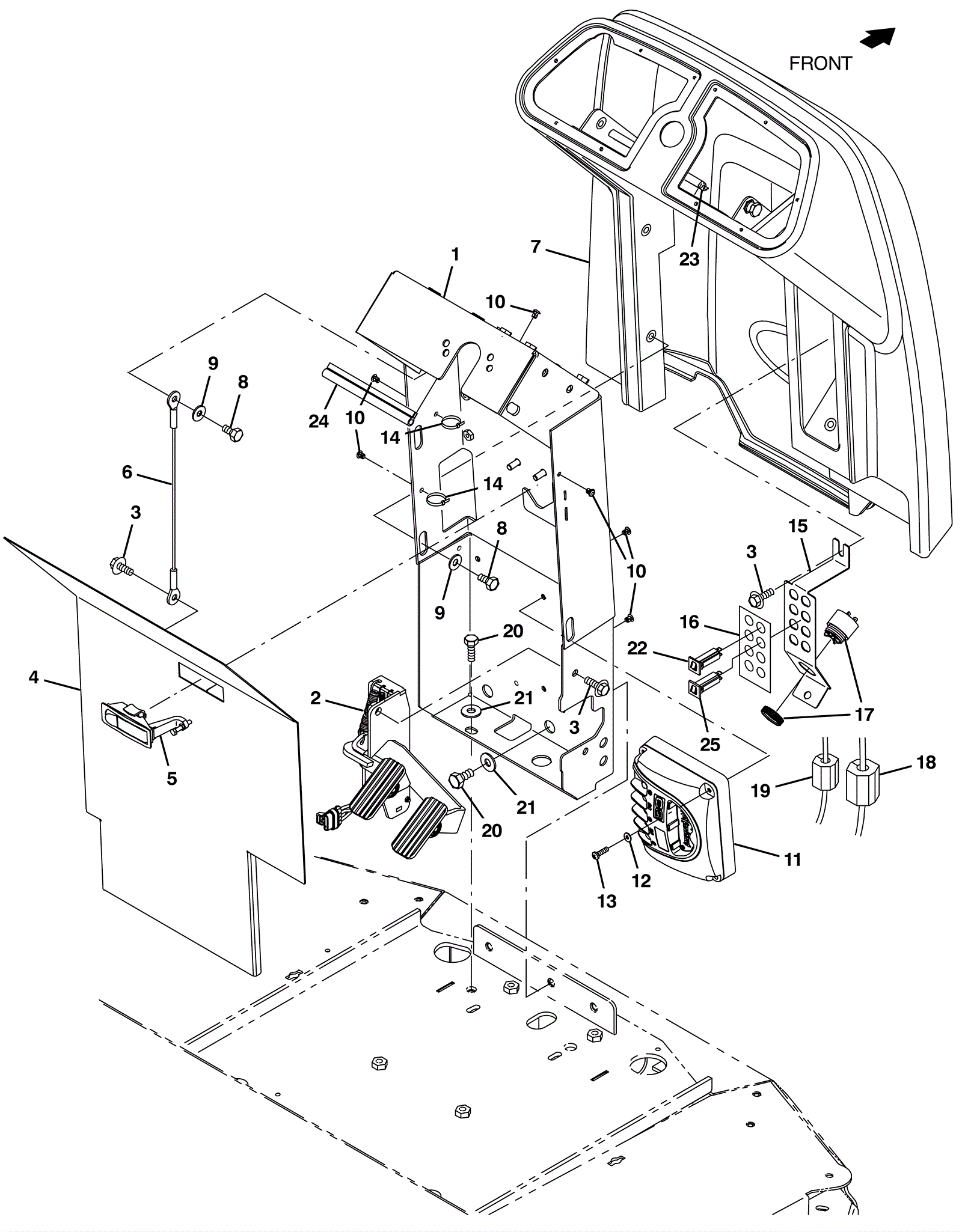

S16 Front Cover and Directional Pedal Assembly

#PartDescriptionPriceReqNotesAvailability
1 475-3829 CHANNEL WLDT, STEERING, PNTD $227.15 1 usually ships 10-16 days
2 275-7622 Pedal assembly $442.64 1 usually ships 1-5 days
3 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 5 ships same day
4 375-8192 Front access panel $490.27 1 (includes 5) usually ships 10-16 days
5 275-0047 Latch $68.64 1 usually ships 10-16 days
6 175-3405 Cable $12.76 1 usually ships 10-16 days
7 275-7624 Front shroud $363.44 1 usually ships 1-5 days
8 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 5 ships same day
9 999-0024 Washer 5/16 flat stainless steel $1.34 5 ships same day
10 275-7625 Plastic clip $1.85 7 usually ships 1-5 days
11 475-4089 CONTROLLER, DRIVE [T12] $1,061.06 1 usually ships 10-16 days
12 999-0006 Washer 3/16 flat zinc plated $0.99 4 ships same day
13 375-3491 Screw (Tennant Industrial) $3.20 4 usually ships 10-16 days
14 175-7795 Cable tie $4.75 7 ships same day
15 275-7627 Bracket $12.98 1 usually ships 1-5 days
16 275-7628 Circuitbreaker decal $7.70 1 usually ships 1-5 days
17 275-4942 Alarm $75.68 1 usually ships 1-5 days
20 475-9174 SCREW, HEX, M10 X 1.50 X 25, 10.9 (Tennant Industrial) $6.17 4 usually ships 10-16 days
21 999-0032 Washer 3/8 USS flat plain finish $2.42 4 ships same day
22 175-5969 15amp circuit breaker (Tennant Industrial) $7.67 1 ships same day
23 575-7965 SEAL, LIP, 90, 1.3W . GRIP 050.0L (Tennant Industrial) $128.26 1 usually ships 10-16 days
24 575-7499 SEAL, AFMKT, BULB, STR, .75D F/07GA 01FT (Tennant Industrial $94.02 1 usually ships 10-16 days
25 275-5483 2.5amp circuit breaker $13.09 1 usually ships 10-16 days
