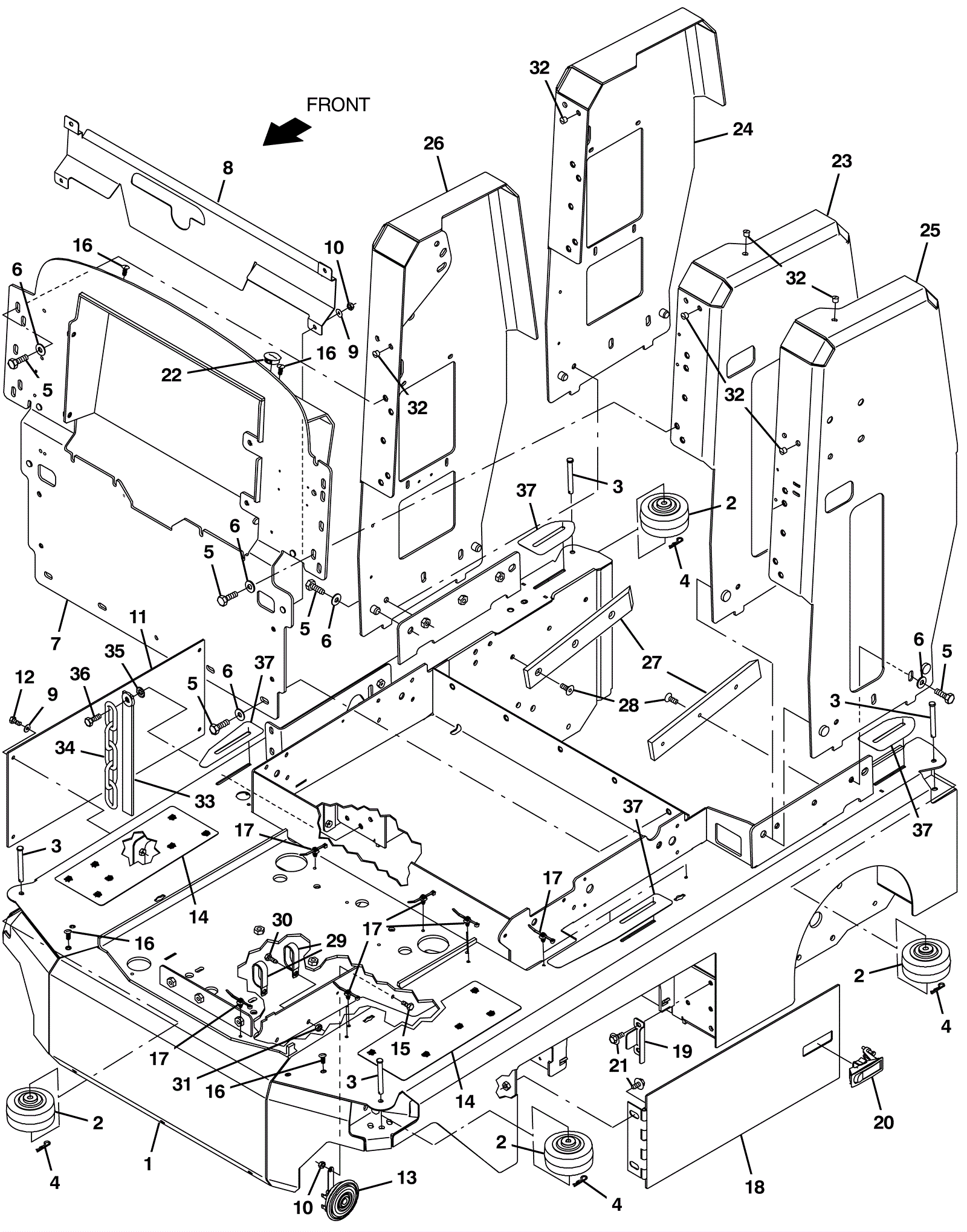

S16 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-8187 Main frame weldment Call for price 1 usually ships 13-17 days
2 275-7566 Wheel (Tennant Industrial) $43.01 4 ships same day
3 275-8362 PIN, CLEVIS, 0.37D X 3.25L (Tennant Industrial) $9.30 4 ships same day
4 175-2117 Cotter pin $5.28 4 usually ships 13-17 days
5 475-9174 SCREW, HEX, M10 X 1.50 X 25, 10.9 (Tennant Industrial) $6.67 21 usually ships 13-17 days
6 999-0032 Washer 3/8 USS flat plain finish $2.42 21 ships same day
7 375-8176 Bulkhead bracket weldment $429.66 1 usually ships 13-17 days
8 375-8177 Raceway plate $83.60 1 usually ships 13-17 days
9 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
10 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 5 ships same day
11 375-8178 Brush door stop plate $66.85 1 usually ships 13-17 days
12 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 4 ships same day
13 275-7560 36V horn (Tennant Industrial) $112.52 1 usually ships 13-17 days
14 575-0262 TREAD, NON-SKID-STEP, 5.5W 13.8L (Tennant Industrial) $12.50 2 usually ships 13-17 days
15 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 1 ships same day
16 175-5943 CLIP, SNAP-IN, 0.25H 0.80L, BLK NYL (Tennant Industrial) $5.33 8 usually ships 13-17 days
17 275-5197 Fir tree clip $2.38 23 usually ships 13-17 days
18 375-8179 Brush door weldment $190.41 1 usually ships 13-17 days
19 375-8180 Horizontal door latch bracket $64.68 1 usually ships 13-17 days
20 275-0047 Latch $73.48 1 usually ships 13-17 days
21 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.49 4 usually ships 13-17 days
22 175-2147 Nylon plug (black) $4.49 1 usually ships 13-17 days
23 375-8181 Left hand tower weldment $409.20 1 (low dump only) usually ships 13-17 days
24 375-8182 Right hand tower weldment $409.20 1 (low dump only) usually ships 13-17 days
25 375-8183 Left hand tower weldment $923.34 1 (high dump only) usually ships 13-17 days
26 375-8184 Right hand tower weldment $919.93 1 (high dump only) usually ships 13-17 days
27 375-8185 Bracket $45.87 2 (high dump only) usually ships 13-17 days
28 999-1622 Screw M8-1.25 x 25mm flat head phillips stainless steel $1.69 6 (high dump only) ships same day
29 175-3171 Cable clamp $5.50 2 usually ships 1-5 days
30 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 2 ships same day
31 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
32 175-9923 Black nylon plug $4.36 5 usually ships 1-5 days
33 275-9261 Static strip with grommet $28.16 1 usually ships 13-17 days
34 175-5303 Coil link chain $8.25 1 usually ships 1-5 days
35 175-2893 Washer 5/16 internal/external locking $4.49 1 usually ships 13-17 days
36 999-1653 Screw M8-1.25 x 30mm hex head stainless steel $4.36 1 ships same day
37 375-8186 Wear pad set $79.53 1 usually ships 13-17 days
