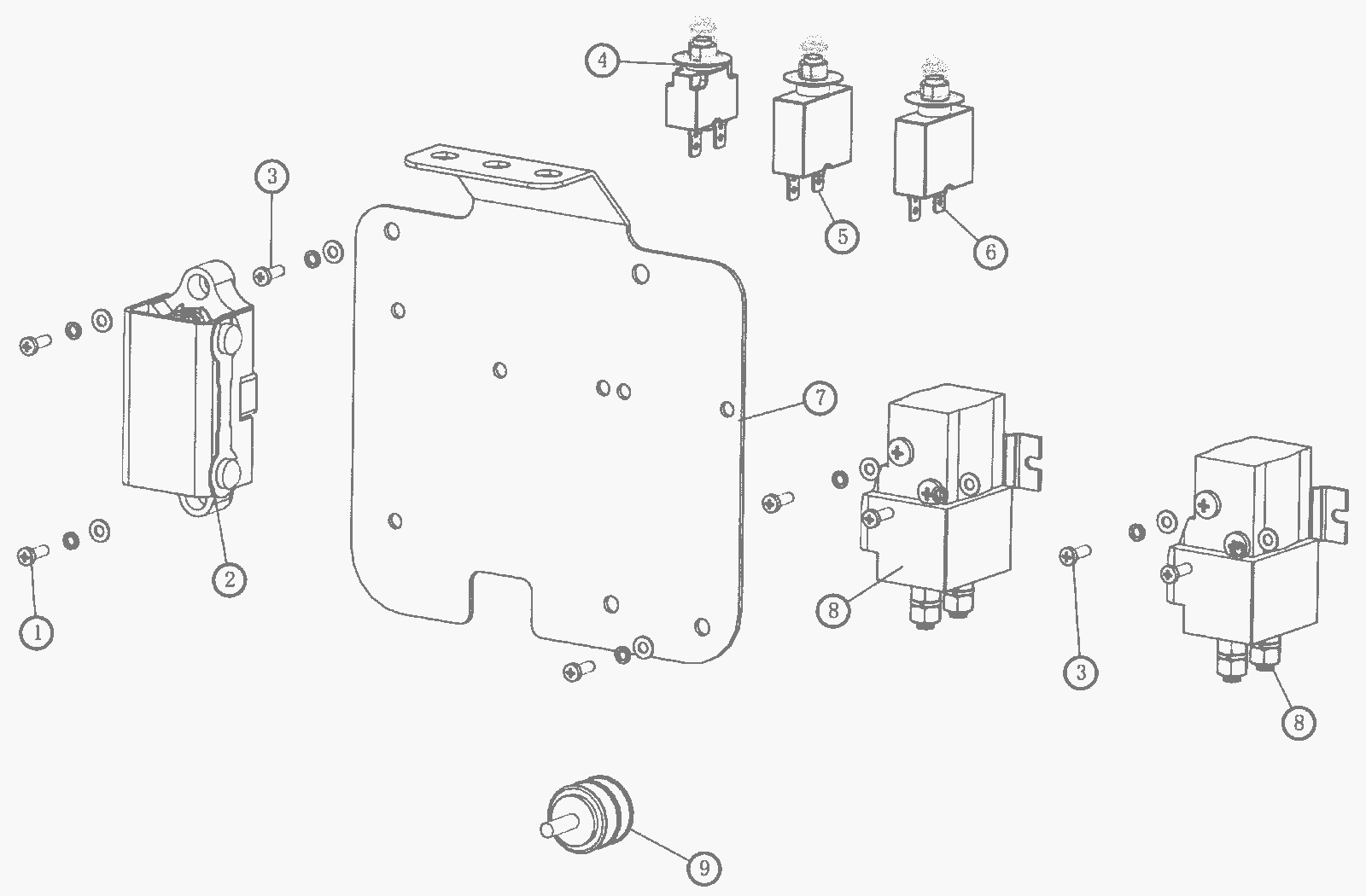

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
999-9276
|
Screw M4-.7 x 14mm pan head phillips zinc |
2 |
|
|
1b |
999-0266
|
Washer #8 SAE flat stainless steel |
8 |
|
|
2 |
203-6335
|
100A box w/strip fuse |
1 |
|
|
3 |
999-0521
|
Screw M4-.7 x 12mm pan head phillips zinc |
6 |
|
|
4 |
203-6294
|
Protector 5A w/ waterproof cap |
1 |
|
|
5 |
375-8094
|
25Amp fuse |
1 |
|
|
6 |
375-8095
|
30Amp fuse |
1 |
|
|
7 |
375-8096
|
Electrical mounting bracket |
1 |
|
|
8 |
203-6261
|
DC contactor |
2 |
|
|
9 |
203-6333
|
Insulated pile head |
1 |
|
|
