| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |

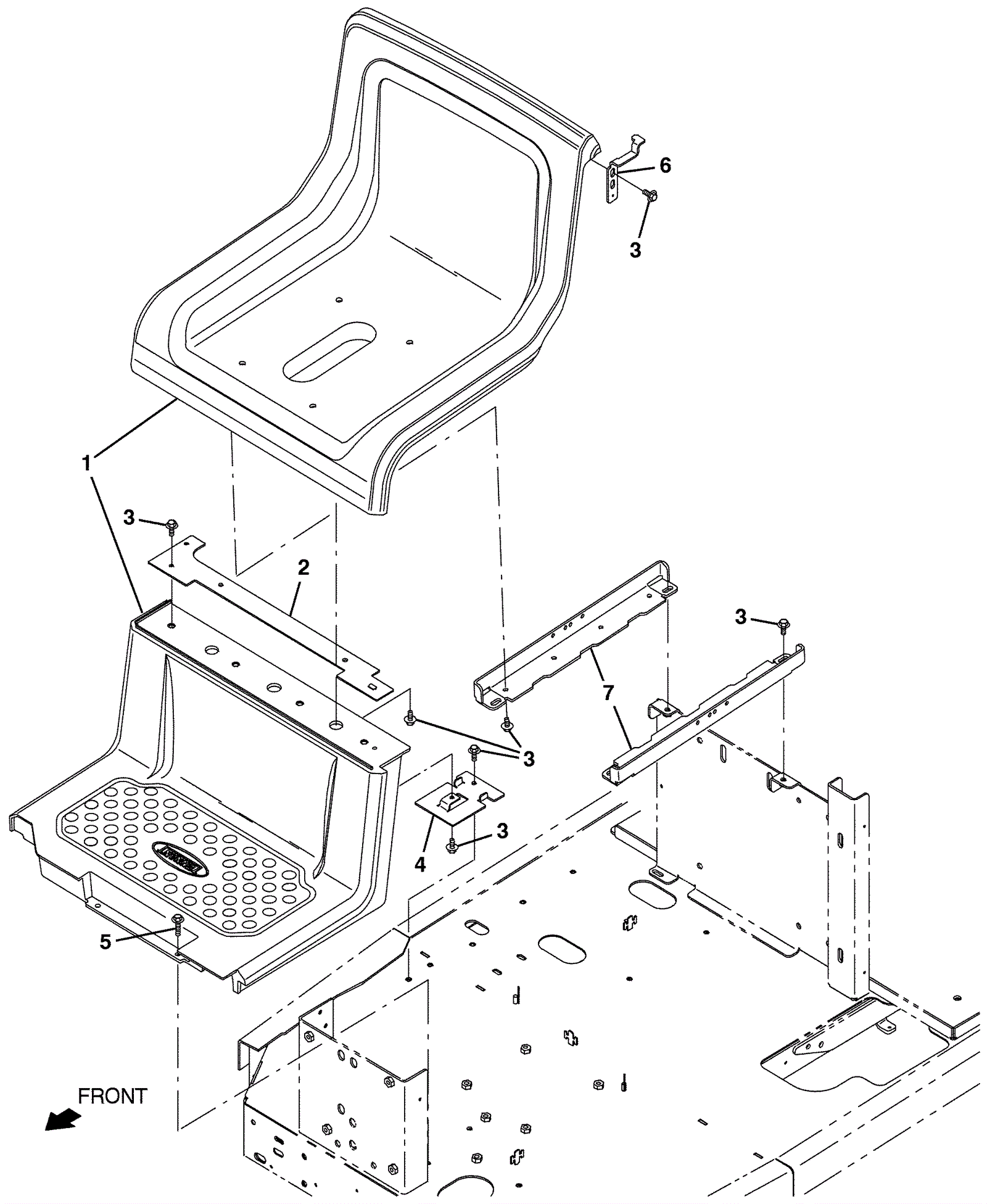

(Platform Set, Oprtr [T17/M17 Trim]) |
|
2 |
675-9738
|
PLATE WLDT, MTG, PLATFORM (Tennant Industrial) |
1 |
|
|
3 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
9 |
|
|
4 |
575-2944
|
PLATE, MTG (Tennant Industrial) |
1 |
|
|
5 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
2 |
|
|
6 |
675-9739
|
BRACKET, LATCH (Tennant Industrial) |
1 |
|
|
7 |
675-9740
|
AGLE, SPPT, SEAT (Tennant Industrial) |
2 |
|
|
