| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
675-9736
|

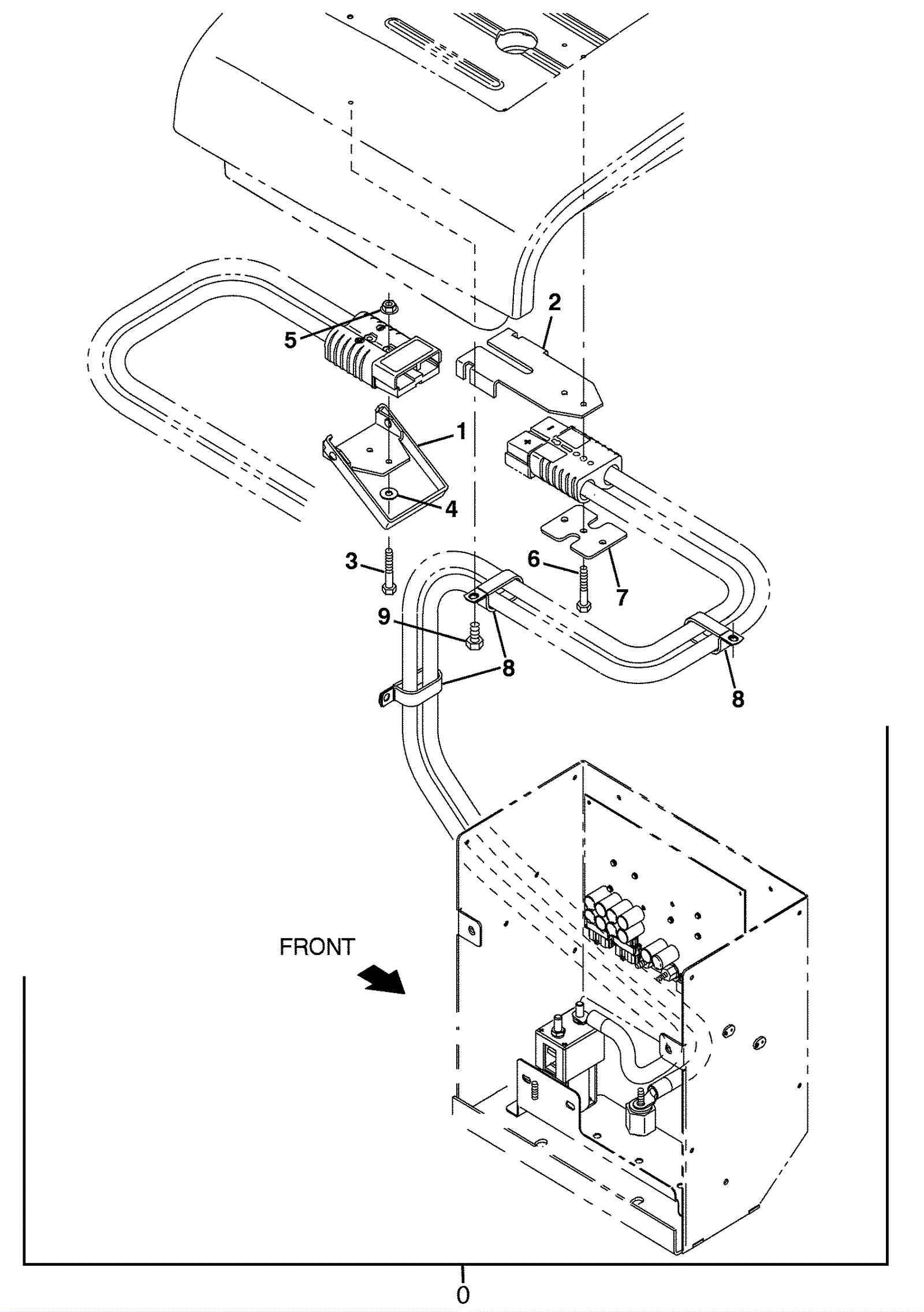

PARTS KIT, BATTERY QDC, CI [T17/M17] (Tennant Industrial) |
1 |
(includes 1-9) |
|
1 |
675-9612
|
BRACKET, MTG, BATTERY, DISCONNECT (Tennant Industrial) |
1 |
|
|
2 |
675-9607
|
BRACKET, MTG, BASE, BATTERY, DISCONNECT (Tennant Industrial) |
1 |
|
|
3 |
175-0758
|
Bolt M6-1 x 40mm hex head stainless steel |
2 |
|
|
4 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
5 |
999-6694
|
Nut M6-1 hex serrated flange stainless steel |
2 |
|
|
6 |
999-0781
|
Screw M6-1 x 45mm hex head |
2 |
|
|
7 |
675-9737
|
PLATE, MTG, BATTERY, DISCONNECT (Tennant Industrial) |
1 |
|
|
8 |
175-3171
|
Cable clamp |
1 |
|
|
9 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
3 |
|
|
