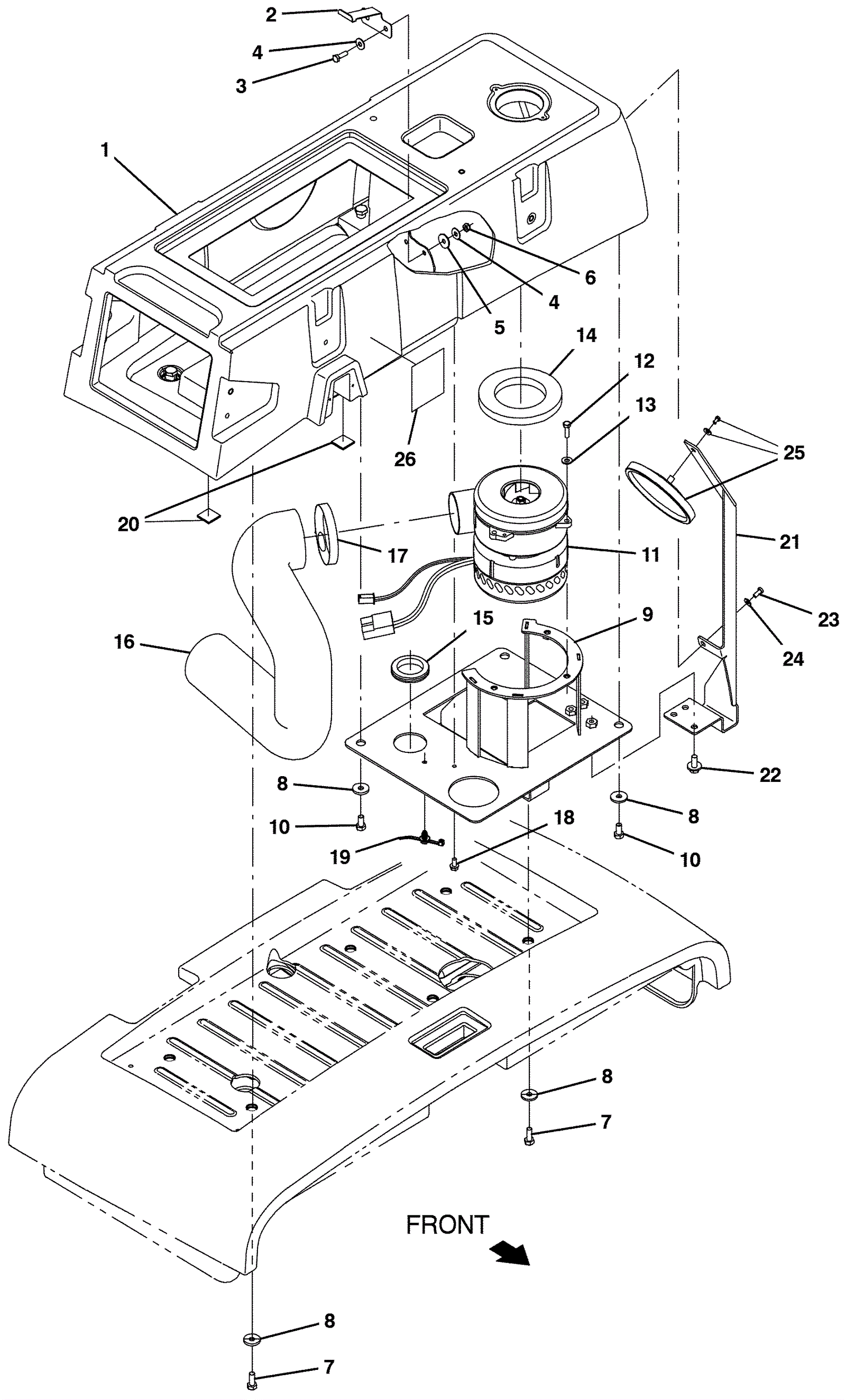

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
(Box, Wand, Vac (Trimmed) |
|
2 |
675-9717
|
PLATE, SPRING (Tennant Industrial) |
1 |
|
|
3 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
2 |
|
|
4 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
5 |
175-7194
|
WASHER, FLAT, 0.25B 0.88D .06, NEO (Tennant Industrial) |
2 |
|
|
6 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
|
|
7 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
6 |
|
|
8 |
175-7920
|
Washer M8 flat stainless steel |
9 |
|
|
9 |
675-9718
|
BRACKET WLDT, FAN (Tennant Industrial) |
1 |
|
|
10 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
3 |
|
|
11 |
675-7782
|
FAN, VACUUM, 5.7D, 036VDC, 1 STAGE (Tennant Industrial) |
1 |
|
|
12 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
3 |
|
|
13 |
999-0016
|
Washer 1/4 flat plain finish |
3 |
|
|
14 |
675-9719
|
GASKET,.50,3.15ID 5.08OD,ADH [PORON] (Tennant Industrial) |
1 |
|
|
15 |
275-0543
|
Rubber grommet |
1 |
|
|
16 |
675-2607
|
MUFFLER, VACFAN, 2.50 ID X 25.0 OAL (Tennant Industrial) |
1 |
|
|
17 |
997-2009
|
Hose clamp |
1 |
|
|
18 |
175-3298
|
Bolt M6-1 x 12mm hex head |
1 |
|
|
19 |
275-5197
|
Fir tree clip |
1 |
|
|
20 |
175-3233
|
Cable tie mount |
2 |
|
|
21 |
675-9720
|
BRACKET, MIRROR (Tennant Industrial) |
1 |
|
|
22 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
3 |
|
|
23 |
175-3223
|
Screw 12-16 x 1/2 pan head plastic |
1 |
|
|
24 |
999-0998
|
Washer #10 flat stainless steel |
1 |
|
|
25 |
375-1041
|
Convex mirror (Tennant Industrial) |
1 |
|
|
26 |
N/A
|
Not available |
1 |
(Label, Instructional, Dry Vac) |
|
